A bucket can look right beside the machine and still miss the mount by a few millimetres. That is the frustrating part of buying chinese mini excavator attachments: the badge on the engine cover tells less than the dimensions around the dipper arm.

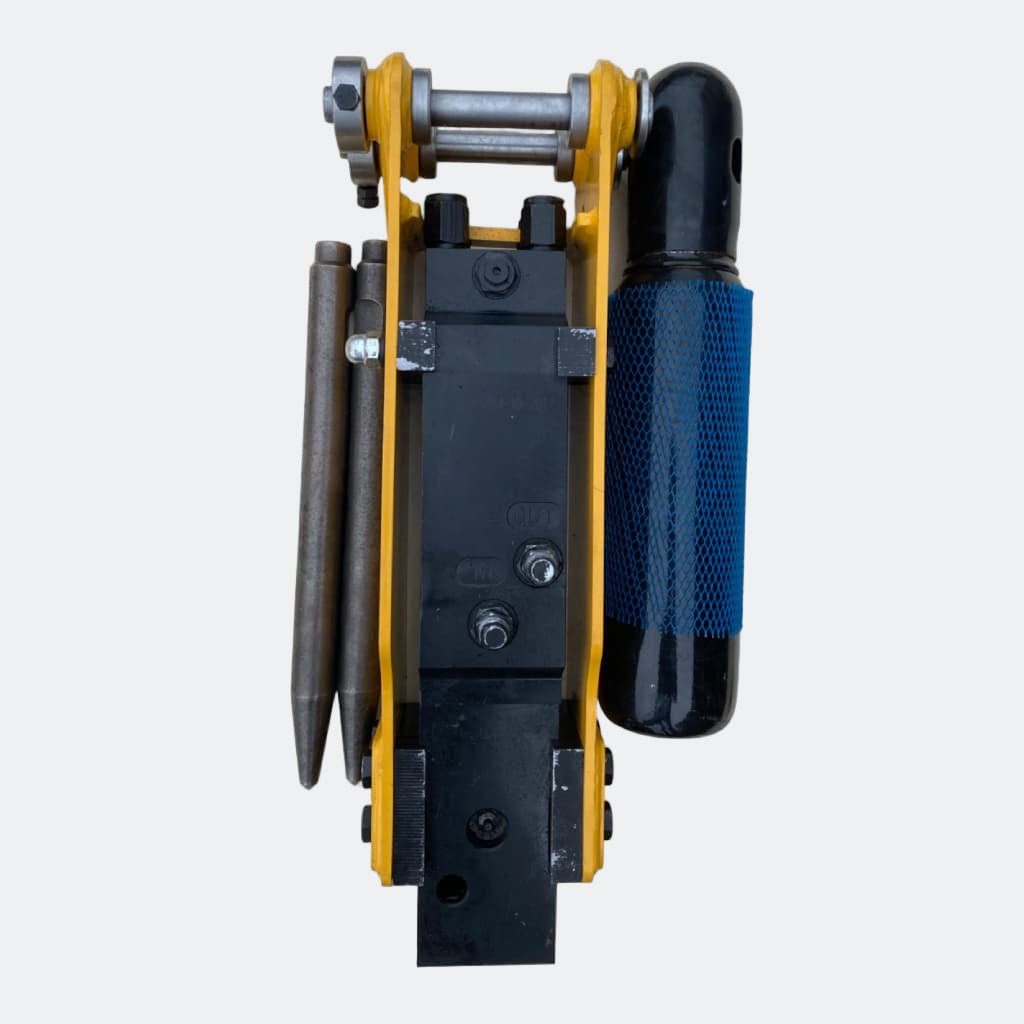

Bully Dog Equipment organizes this range around 25 mm and 30 mm mounting systems. The collection includes buckets, rakes, grapples, rippers, augers, hydraulic rock hammers and mechanical pin grabbers for compact Chinese-made machines. The current selection appears on the main collection page.

Supported Brands

The search for chinese mini excavator attachments canada often begins with a familiar name: AGT mini excavator, AGROTK, Hightop or Rhinoceros excavator. Those labels help identify the machine, but Bully Dog Equipment does not publish a universal brand-to-attachment chart for this collection. AGT KU45 appears as a coupler option elsewhere in the store; that does not make every 25 mm or 30 mm product suitable for every AGT machine.

A model name, operating weight and clear photographs of the existing mount give the seller a better starting point. The Mini Excavators page also shows why machine class matters.

Bully Dog Equipment editorial guidance: "Treat the brand name as an identification clue, not a fitment measurement. Two similar-looking machines may use different pins, spacing or lug widths."

25 mm vs 30 mm Pins

People comparing chinese mini excavator attachments for sale should not view 25 mm and 30 mm as interchangeable sizes. The difference extends beyond pin diameter. In the current 8-inch trenching-bucket cards, the 25 mm version has 90 mm pin-centre spacing and a 92 mm dipper gap; the 30 mm version has 100 mm spacing and a 96 mm gap. Their descriptions place them in different machine classes: 1–1.8 tons and 2–2.5 tons 25 mm bucket, 30 mm bucket.

The dedicated 25 mm Pin Attachments and 30 mm Pin Attachments pages keep the systems separate. A 25 mm pin will not correctly substitute for a 30 mm pin, and matching the diameter alone does not establish compatibility.

Compatible Attachments

Choosing attachments for chinese mini excavator use is easier when the next job—not the longest product list—drives the decision. The related categories cover several distinct tasks:

  • Digging Buckets for general excavation and material removal.
  • Trenching Buckets for narrow utility or irrigation cuts.
  • Skeleton Buckets for separating finer soil from larger material.
  • Clean-up Buckets for grading and loose-material handling.
  • Tilt Wrist Buckets for angled finishing and ditch work.
  • Rippers for breaking compacted or resistant ground.
  • Log Grapples for handling logs, brush and irregular material.

A general bucket is often the practical first replacement attachment for routine excavation. Specialized tools make sense when trenching, grading, breaking hard ground or handling brush dominates the work. A quick coupler can simplify tool changes, but it must match the machine and each attachment.

How to Measure Pin Size

Before purchasing mini chinese excavator attachments, clean the mounting area and measure the existing bucket or coupler with the machine safely parked. Record these details:

  • Pin diameter, measured across the widest part of the pin.
  • Pin-centre distance, measured from the centre of one pin to the centre of the other.
  • Dipper gap, measured between the inner faces of the mounting ears.
  • Machine make, model and operating class.
  • Coupler type, if a quick coupler is installed.
  • Photographs showing the dipper end and current attachment.

Compare the measurements with the individual product card. Do not depend on a rounded ruler reading when the two pin systems differ by only 5 mm. Where centre-to-centre measurement is awkward, measure from the same edge of one equal-diameter pin to the same edge of the other.

Bully Dog Equipment editorial guidance: "Fitment is a three-dimension check at minimum: pin diameter, pin-centre spacing and dipper gap must agree before machine class is considered."

Why Buy from Bully Dog Equipment

When evaluating china mini excavator attachments, buyers can ask Bully Dog Equipment to review measurements and photographs. Product pages direct customers to contact the company when coupler fit is uncertain or custom-fabricated lugging may be required. An extra measurement in the yard is easier than dealing with an attachment that will not mount.

The company is based in Vancouver, BC, works by appointment and states that it ships across British Columbia and throughout Canada About Bully Dog Equipment. Delivery cost, timing and stock should still be confirmed for the destination and selected product.

FAQ

Which Chinese mini excavators are supported?

The collection is intended for common Chinese-made mini excavators using matching 25 mm or 30 mm systems. Support must be confirmed from the complete mounting dimensions, not the brand alone.

How do I identify my pin size?

Measure the pin diameter with a calliper, then record pin-centre spacing and dipper gap. Send measurements and clear photographs if anything remains uncertain.

Are 25 mm and 30 mm attachments interchangeable?

No. Both the pin diameter and accompanying mounting geometry differ, so the systems are not interchangeable.

Do you ship across Canada?

Yes. Bully Dog Equipment states that it ships throughout Canada. Confirm the quote and delivery details for your postal code.

Can you help verify compatibility before purchase?

Yes. The product pages invite customers to ask about uncertain coupler fit or custom lugging. Provide measurements and photographs for the check.

Which attachment should I buy first?

For routine excavation, begin with a general digging bucket. Choose a specialized tool first only when another task dominates the machine's schedule.

References:

The specifications and service statements were checked against these sources:

Stock and product configurations can change, so the current item page remains the final reference before ordering.
