Excavator Log Grapples

Moving timber looks straightforward until an awkward trunk begins to roll, brush slips from an attachment, or the operator has to reposition the excavator for every lift. A purpose-built log grapple gives the operator a firmer hold and more deliberate control over irregular material.

Bully Dog Equipment offers rotating and non-rotating hydraulic models for compact and mid-size machines. Each design suits a different working pattern, so choosing an attachment should begin with the excavator, hydraulic setup, coupler interface, and expected material—not with appearance alone.

High-Performance Log Grapples for Mini Excavators

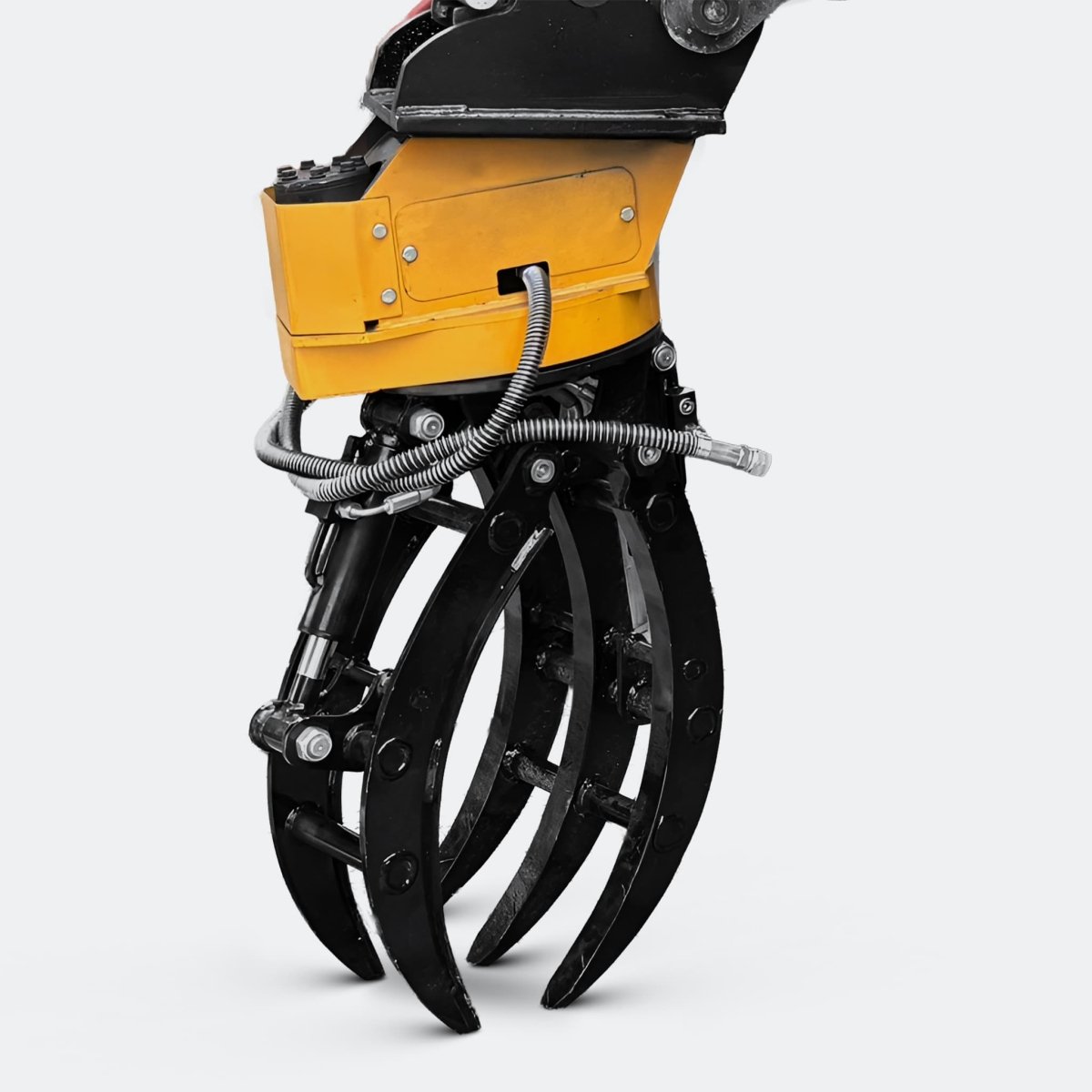

A mini excavator log grapple allows a compact machine to pick up logs, branches, and bulky green waste without trying to balance them in a conventional bucket. The smallest rotating model in the range is intended for 2.5–4 ton excavators. It weighs 300 lb, opens to 36 inches, and provides continuous 360-degree rotation.

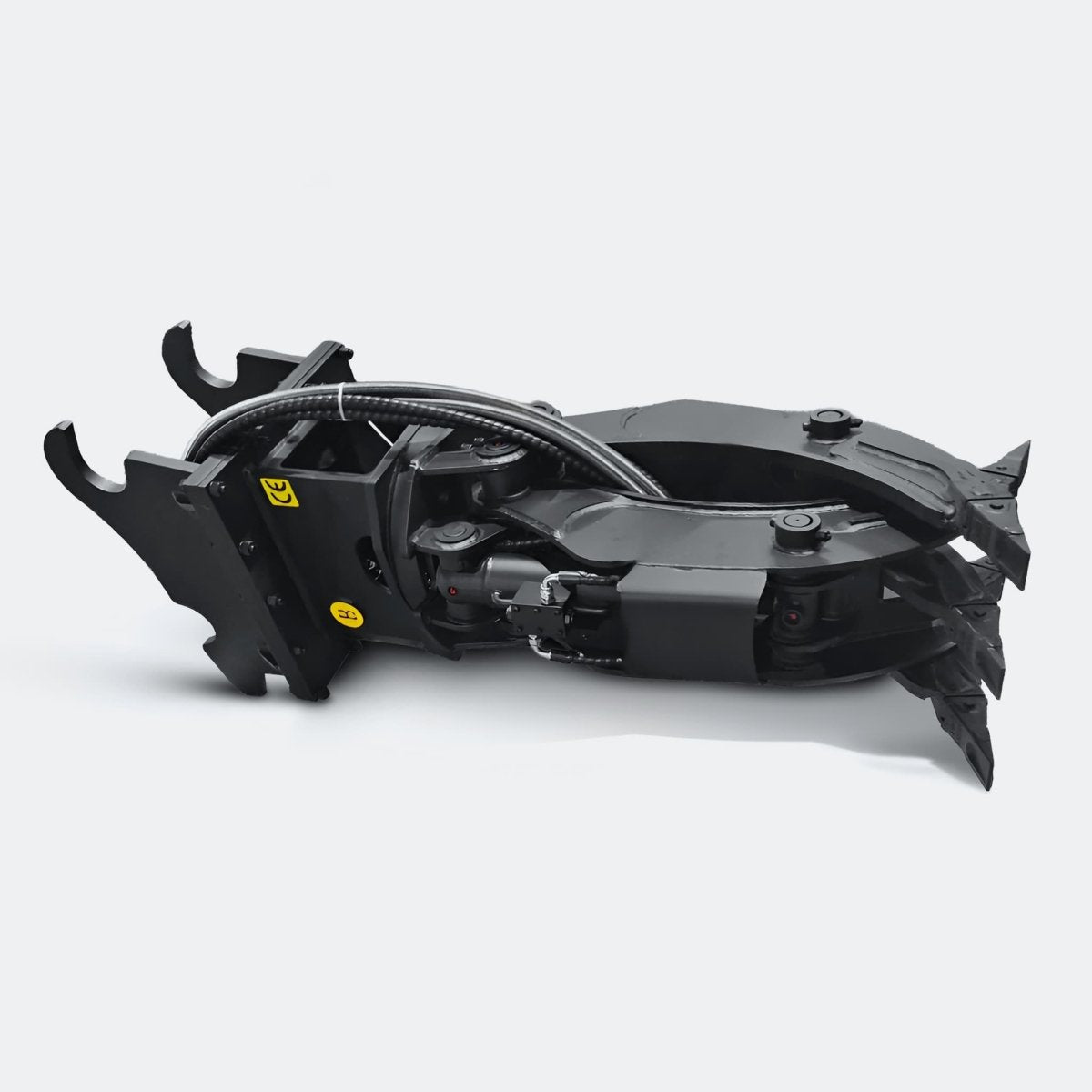

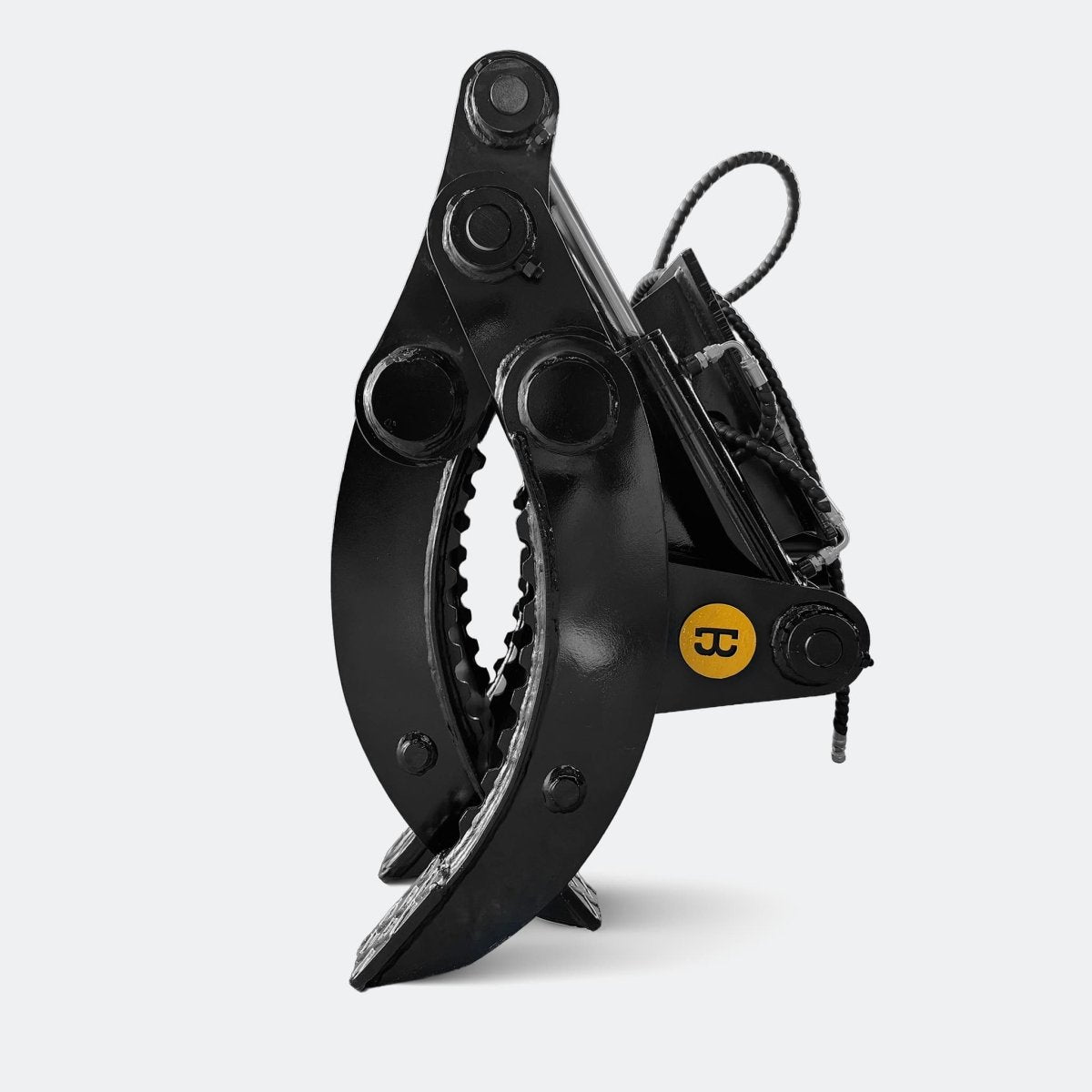

Larger rotating models cover the 5–8 and 8–12 ton classes. Both have a maximum opening of 55 inches, while their listed attachment weights are 700 and 900 lb respectively. The non-rotating excavator log grapple is offered for 4–8 ton machines, weighs 600 lb, and has a 37-inch maximum opening.

The practical differences between the two configurations are clear:

  • A rotating grapple can turn material through 360 degrees for more precise sorting and placement.
  • A non-rotating grapple provides hydraulic clamping without the additional rotating mechanism.
  • Smaller models suit space-restricted projects where machine size and attachment weight matter.
  • Larger attachments offer wider openings for substantial logs, brush piles, and debris.

Neither arrangement is automatically better for every site. Rotation is valuable when the operator frequently changes the orientation of a trunk, while a fixed-body hydraulic log grab can be a sensible choice for repetitive lifting in a predictable direction.

Ideal Uses: Forestry, Land Clearing & Timber Handling

An excavator log grab can perform much more than a single-purpose bucket. Its opposing tines close around irregular objects, making it useful when material cannot be scooped or carried securely on a flat surface.

Common applications for log grapples include:

  • Sorting, stacking, and loading cut timber.
  • Collecting branches during land clearing.
  • Handling firewood and sections of removed trees.
  • Moving storm debris and bulky organic waste.
  • Separating wood from mixed material at recycling sites.

These uses do not turn every excavator into a dedicated log loader. Professional forestry operations may involve production targets, protective structures, terrain hazards, and rules beyond the capabilities of a general-purpose excavator. OSHA distinguishes several types of mechanical logging machinery and describes log loading as a specialised activity [4]. WorkSafeBC also stresses the importance of coordinated safe procedures around log-loading areas [5].

Bully Dog Equipment expert note: "Rotation improves placement control, but it does not increase the excavator's rated lifting capacity. The machine, attachment, coupler, working radius, and load must always be considered as one system."

Key Features of Our Log Grapples

Bully Dog Equipment's rotating products use a three-tooth front and two-tooth rear arrangement. Their teeth are replaceable and secured with pins. The listed construction material is T1 steel on the 2.5–4 ton model, while the larger rotating models combine T1 structural steel with AR400 steel in wear areas.

The non-rotating attachment also uses a three-by-two tooth arrangement, replaceable teeth, a T1 frame, and AR400-reinforced wear zones. Although buyers sometimes search for "heavy duty jaws," the manufacturer describes these working parts as tines and teeth. Likewise, the term bypass grapple should not be applied automatically unless the geometry of the selected product is confirmed.

A rotating forestry attachment can reduce unnecessary machine repositioning. This is especially useful when timber handling requires a log to be picked up lengthwise, turned, and laid accurately in a stack. The simpler fixed design is more appropriate where rotation offers little operational benefit.

Bully Dog Equipment expert note: "The best log grapple for excavator work is not necessarily the widest model. An attachment that matches the carrier's weight class, hydraulics, and coupler will usually be more useful than an oversized grapple that restricts safe handling."

Technical Specifications and Machine Compatibility

Compatibility must be checked more carefully than matching an attachment to a broad tonnage category. Bully Dog Equipment lists multiple pin-on and wedge-style interfaces for brands including Caterpillar, John Deere, Hitachi, Kubota, Sany, Yanmar, Komatsu, and Bobcat. Unlisted machines may require custom-fabricated lugging.

Before ordering a log grapple for mini excavator use, the buyer should confirm:

  • The excavator's operating weight and lifting chart.
  • The coupler type, pin dimensions, and attachment geometry.
  • Hydraulic pressure, oil flow, and return requirements.
  • The installed attachment weight and resulting working capacity.
  • Hose routing, connections, and clearance through the full boom movement.

This verification also matters for quick couplers. NIOSH warns that an improperly engaged excavator attachment can detach and recommends following the manufacturer's connection and inspection procedures [1]. HSE guidance similarly explains that quick hitches require appropriate locking and examination practices [2].

The product pages state that hydraulic cylinders and hoses are included, but they do not publish complete pressure, flow, or auxiliary-circuit requirements. Those values should be confirmed before installation rather than inferred from excavator size.

Why Buy Logging Equipment from Bully Dog Equipment

The available range gives contractors a choice between compact rotating equipment, larger rotating attachments, and a simpler non-rotating design. Published dimensions, weights, construction materials, excavator classes, and coupler options make preliminary comparison easier.

Buyers who need orientation control can review Rotating Grapples. Contractors assembling a compact equipment package can also compare Mini Excavators, while Excavator Buckets remain useful for excavation and loose-material handling.

Because coupler and hydraulic configurations differ, final fitment should still be confirmed for the machine's exact make, model, and setup.

FAQ

What can I use an excavator log grapple for?

It can handle cut logs, branches, brush, storm debris, firewood, and other irregular material during land clearing, landscaping, recycling, and suitable forestry work.

Does a log grapple require additional hydraulic lines?

A hydraulic grapple requires a compatible auxiliary hydraulic circuit. Whether additional lines must be installed depends on the excavator's existing hydraulic setup. Rotating models may also need a second hydraulic function or a suitable diverter system. Before installation, confirm the required oil flow, pressure, fittings, and circuit configuration for both the attachment and the excavator.

What is the maximum load weight for mini excavator grapples?

Bully Dog Equipment does not publish a universal maximum payload for these grapples. The safe limit depends on the excavator's load chart, working radius, boom position, attachment weight, coupler rating, hydraulic setup, and ground conditions. Excavators used for lifting should be assessed and operated according to applicable lifting requirements [3].

Are these suitable for forestry operations?

They are designed for applications that include log handling, tree removal, firewood processing, and land clearing. Suitability for a particular forestry operation depends on machine protection, terrain, load size, operator training, and local safety rules.
