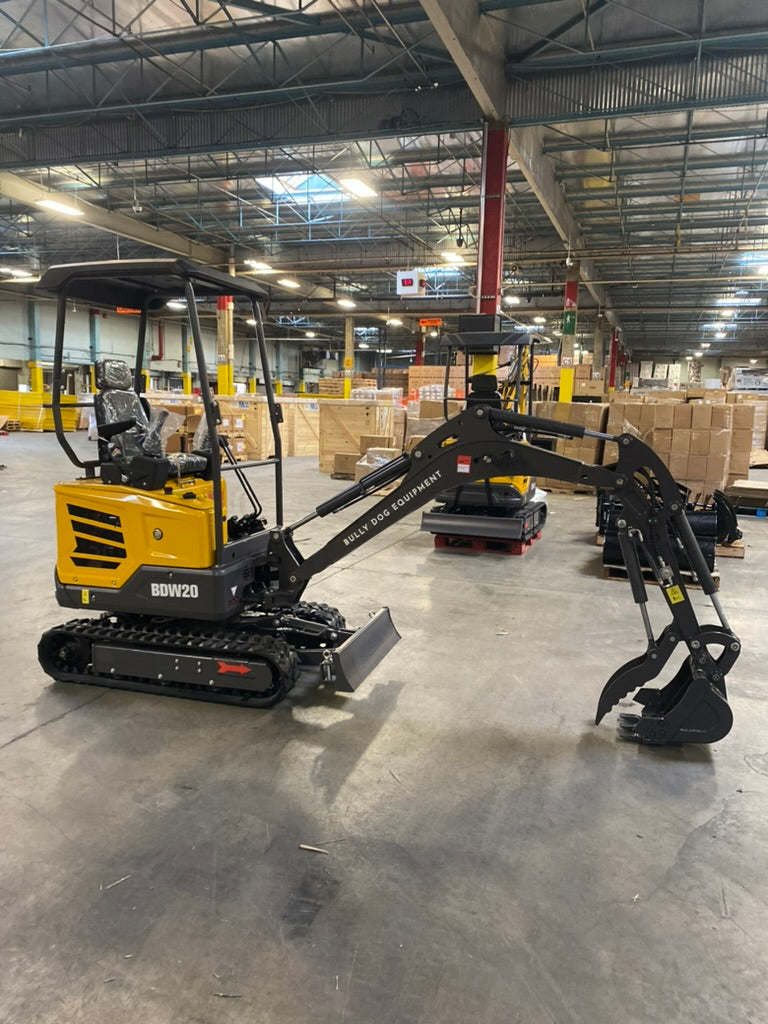

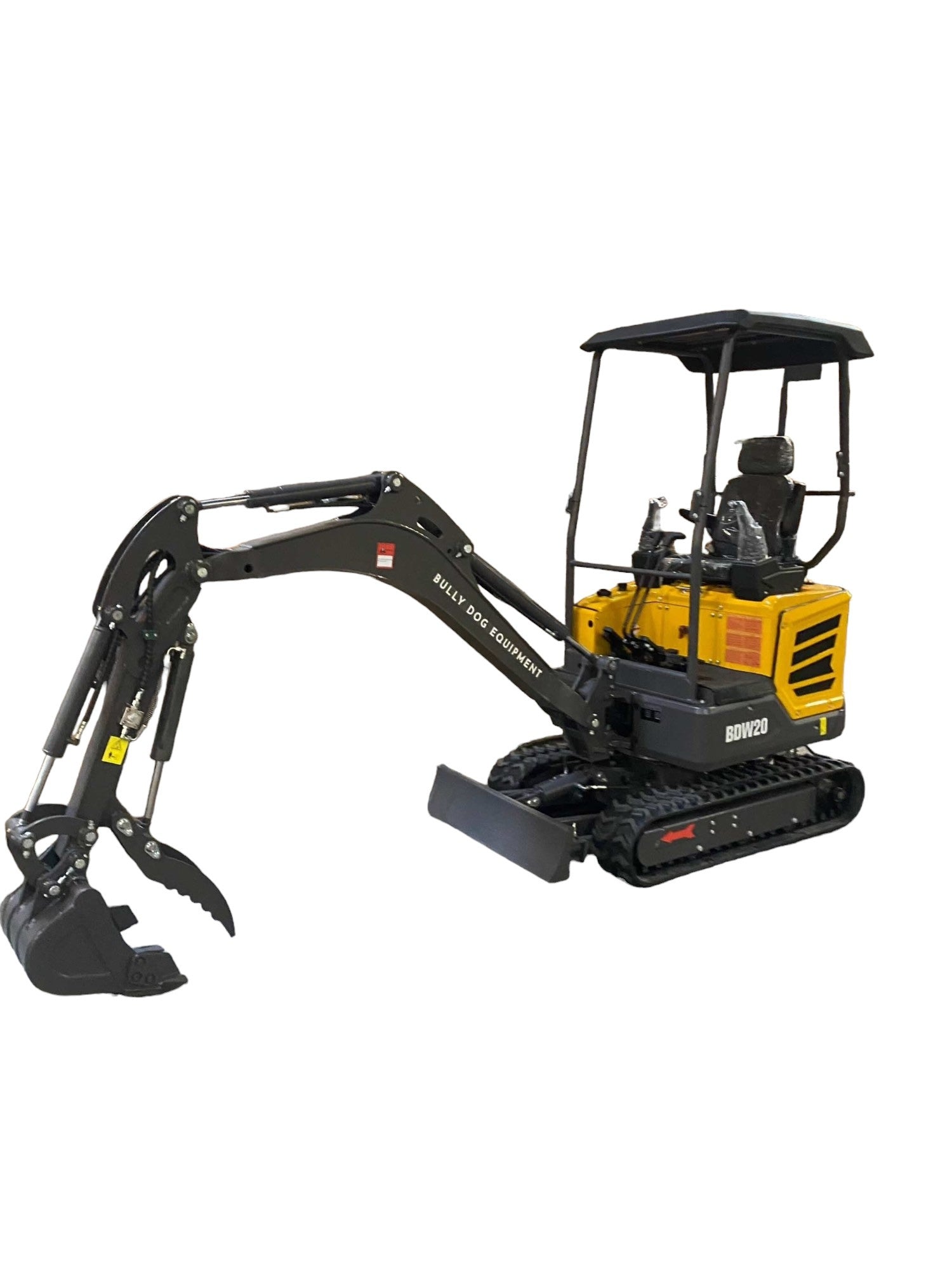

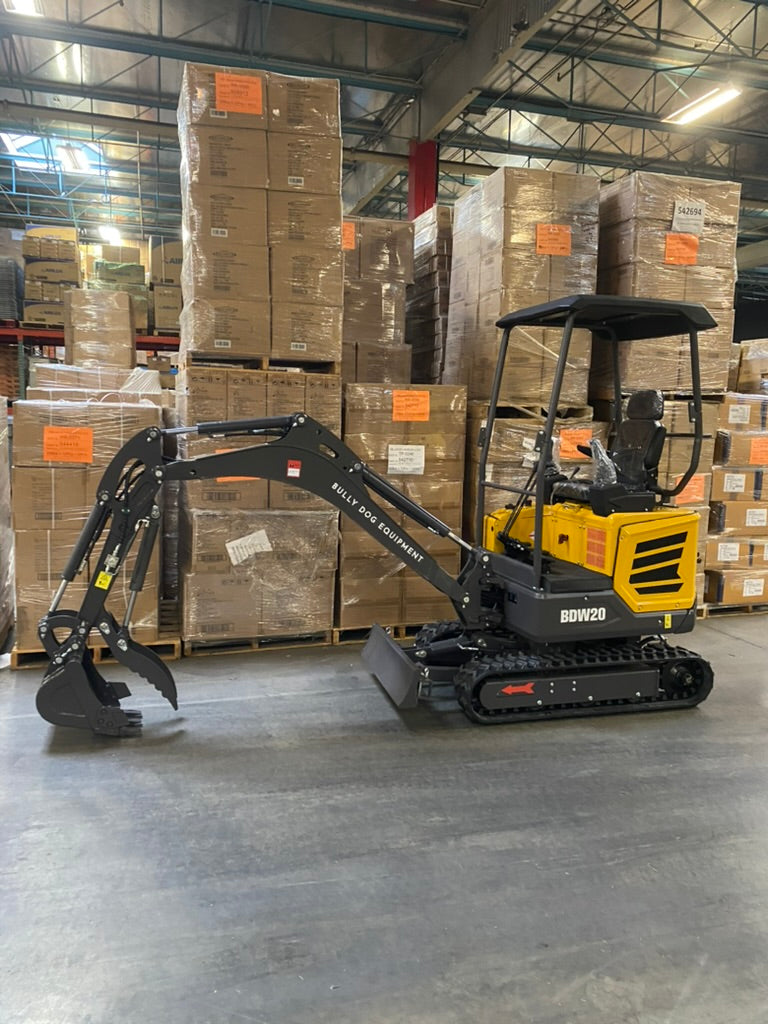

Introducing the BDW20 Mini Excavator

Financing available! Find mini Excavator For Sale BC.

Equipped with advanced features, the BDW20 stands out in its class. The hydraulic thumb provides precision and control, the swing boom enhances maneuverability, making tight spaces and complex job sites more accessible than ever before. Powered by the reliable Kubota D902 diesel engine, this compact excavator delivers a formidable performance with a 2000kg operating weight ensuring efficiency without compromise. The expanding tracks provide stability on various terrains, while the expanding blade adds versatility to your excavation projects. Equipped with 2-speed drive motors and a load sensing valve, offering smoother operation and superior control across various terrains. With the ability to easily shift between high and low gears, this machine provides optimal performance whether you’re navigating tight spaces or tackling steep inclines

Safety is our top priority in all our machine designs. Unfortunately, buyers are often unaware of the fact that most Chinese mini excavators with a single-speed drive motor lack a crucial safety feature – the brake valve, usually omitted to cut manufacturing costs. This absence makes navigating slopes a risky endeavour. On inclines, the excavator sits still, but once you engage the travel levers, the machine will freely roll downhill without any resistance until the travel levers are disengaged. Luckily, the upgraded 2 speed drive motors include an integrated brake valve, ensuing improved control on inclines, improved travel speed and safety.

Specifications:

• Operating weight: 2000KG

• Max dig depth: 2275mm - 90"
• Max unloading height: 2460mm
• Max excavation height: 3500mm
• Bucket capacity: 0.04m²
• Expanding tracks.
• Expanding blade.
• Glow plugs for winter operations.
• Kubota D902 20.4 HP diesel engine
• Max travel speed: 2km/h - 4km/h
• Max climbing ability: 30 degrees slope
• Total length: 3400mm
• Total width with tracks expanded: 1250mm
• Width with tracks retracted: 1050mm
• Platform clearance: 437mm
• Bucket width: 440mm
• Max vertical arm excavation depth: 1900mm
• Max reach: 3790mm
• Max turning radius: 1394mm
• Max blade depth: 157mm
• Working pressure: 16MPa
• Hydraulic tank capacity: 19L
