Handling a long log or tangled brush is rarely as simple as moving it from one point to another. The load may need to be turned before it clears an obstacle, aligned with a truck, or placed neatly without repositioning the carrier. That is where a rotating grapple becomes useful: it combines hydraulic gripping with controlled orientation.

Bully Dog Equipment offers rotating hydraulic log grapples for 2.5–4, 5–8, and 8–12 ton excavators. The range is intended primarily for logs, brush, organic debris, firewood processing, tree removal, storm cleanup, and land clearing.

Hydraulic Rotating Grapples for Excavators

An excavator rotating grapple can grip material and rotate it continuously through 360 degrees. The operator can approach an awkward object, turn it while suspended, and place it at the required angle without moving the excavator every time the load faces the wrong way.

Bully Dog Equipment lists three models with distinct specifications:

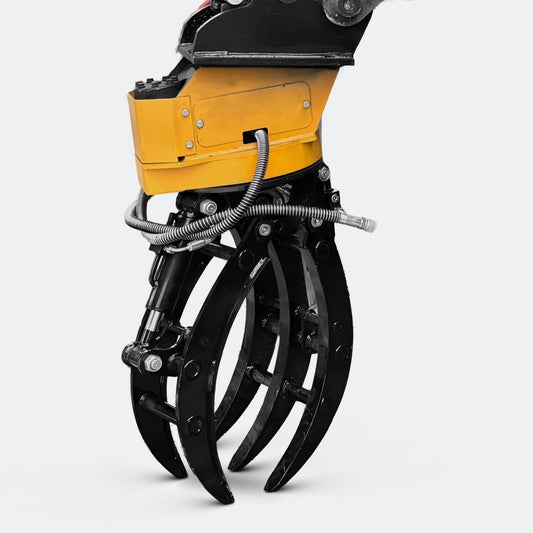

  • The 2.5–4 ton model weighs 300 lb, opens to 36 inches, and uses a T1 steel frame.
  • The 5–8 ton model weighs 700 lb, opens to 55 inches, and combines T1 and AR400 steel.
  • The 8–12 ton model weighs 900 lb, opens to 55 inches, and also uses T1 and AR400 steel.

Each model has a three-tooth front and two-tooth rear configuration, replaceable pin-on teeth, a hydraulic cylinder, and hoses. The range therefore covers both a mini excavator rotating grapple for confined jobs and heavier attachments for larger carriers.

Advantages of 360-Degree Hydraulic Rotation

The principal benefit of 360 degree rotation is not greater lifting capacity. It is better control over the direction of the load. A hydraulic rotator lets the operator turn a log, branch bundle, or suitable piece of debris without repeatedly tracking or swinging the entire excavator.

That control can improve several parts of a handling cycle:

  • Material can be aligned before being placed in a stack or vehicle.
  • Long objects can be turned to pass through restricted spaces.
  • The excavator may require fewer repositioning movements.
  • Loads can be set down with greater directional accuracy.

These benefits still depend on competent operation and a stable carrier. Rotation does not override the excavator's load chart, and the attachment's weight reduces the remaining capacity. Excavators used for lifting must be assessed and operated according to applicable requirements [5].

Bully Dog Equipment expert note: "A rotating head improves placement, not the rated capacity of the carrier. Attachment weight, working radius, boom position, ground conditions, and the load still determine what can be handled safely."

Applications: Demolition, Scrap & Construction

The listed grapples are primarily intended for log handling, brush clearing, tree removal, firewood work, storm cleanup, and land clearing. On construction sites, they may also move suitable wood waste or bulky organic debris. That does not automatically make every model a dedicated demolition grapple.

The same distinction applies to scrap. A purpose-built scrap handler may require different grapple geometry, machine protection, and carrier configuration. Smooth, sharp, or unusually long metal behaves differently than timber. Canadian safety guidance identifies heavy equipment, stored energy, sharp material, and unpredictable loads among the risks found in scrap recycling [4].

Bully Dog Equipment describes heavy-duty tines rather than generic heavy-duty jaws. Its product pages also show one clamping cylinder on each listed model. The term dual cylinders must not be confused with the dual-row tooth arrangement. Suitability for demolition debris or scrap sorting should be confirmed for the specific task.

Choosing the Right Grapple Model for Your Machine

A rotating grapple for excavator use must match the carrier as a complete system. Tonnage class is a useful starting point, but it does not establish final compatibility. The coupler interface, hydraulic circuit, attachment weight, and excavator lifting chart all matter.

Before placing an order, verify the following details:

  • Confirm the excavator's make, model, operating weight, and lift chart.
  • Match the pin-on or wedge interface to the selected attachment.
  • Check auxiliary hydraulic pressure, flow, return path, and fittings.
  • Allow for the grapple's weight when calculating working capacity.
  • Review hose routing and clearance throughout the boom's movement.

A rotating grapple for mini excavator applications should not be selected from machine weight alone. Bully Dog Equipment offers interfaces for various Caterpillar, John Deere, Hitachi, Kubota, Sany, Yanmar, Komatsu, Bobcat, and other configurations. An unlisted machine may require custom-fabricated lugging.

Quick-coupler engagement also requires a physical check after an attachment change. NIOSH warns that incorrectly connected attachments can detach, while Safe Work Australia describes primary retention and backup safety mechanisms for quick hitches [1][2]. Canadian guidance also recommends planning work around heavy equipment and controlling pedestrian exposure [3].

Why Buy From Bully Dog Equipment

The range provides published attachment weights, opening widths, materials, tooth layouts, excavator classes, and coupler choices. Buyers can compare a compact rotating excavator grapple with models intended for medium and larger carriers instead of treating one size as universal.

Related equipment can be found through Log Grapples, Mini Excavators, and Excavator Buckets.

Bully Dog Equipment also advertises delivery and shipping options for its equipment. Destinations, costs, inventory, and transport requirements may vary, so buyers should request confirmation for their location before ordering.

FAQ

What are the benefits of a 360-degree rotating grapple?

It allows the operator to change load orientation without continually repositioning the excavator. This can make sorting, stacking, loading, and placement in restricted areas more controlled. It does not increase the carrier's rated lifting capacity.

What hydraulic flow is required for operation?

The product pages do not publish a universal flow or pressure figure. A compatible auxiliary hydraulic circuit is required, and the system must support clamping and rotation. Confirm the pressure, flow, return requirements, controls, and fittings for the selected model.

Can it be used for demolition and scrap sorting?

Only when the attachment supplier confirms that the chosen model suits the material and task. These products are primarily log grapples and should not be presented as universal demolition or metal-scrap attachments.

Do you ship rotating grapples across Canada?

Bully Dog Equipment advertises shipping and delivery options, but does not guarantee published coverage for every address. Buyers should confirm current stock, destination availability, freight costs, and delivery time directly with the company.
