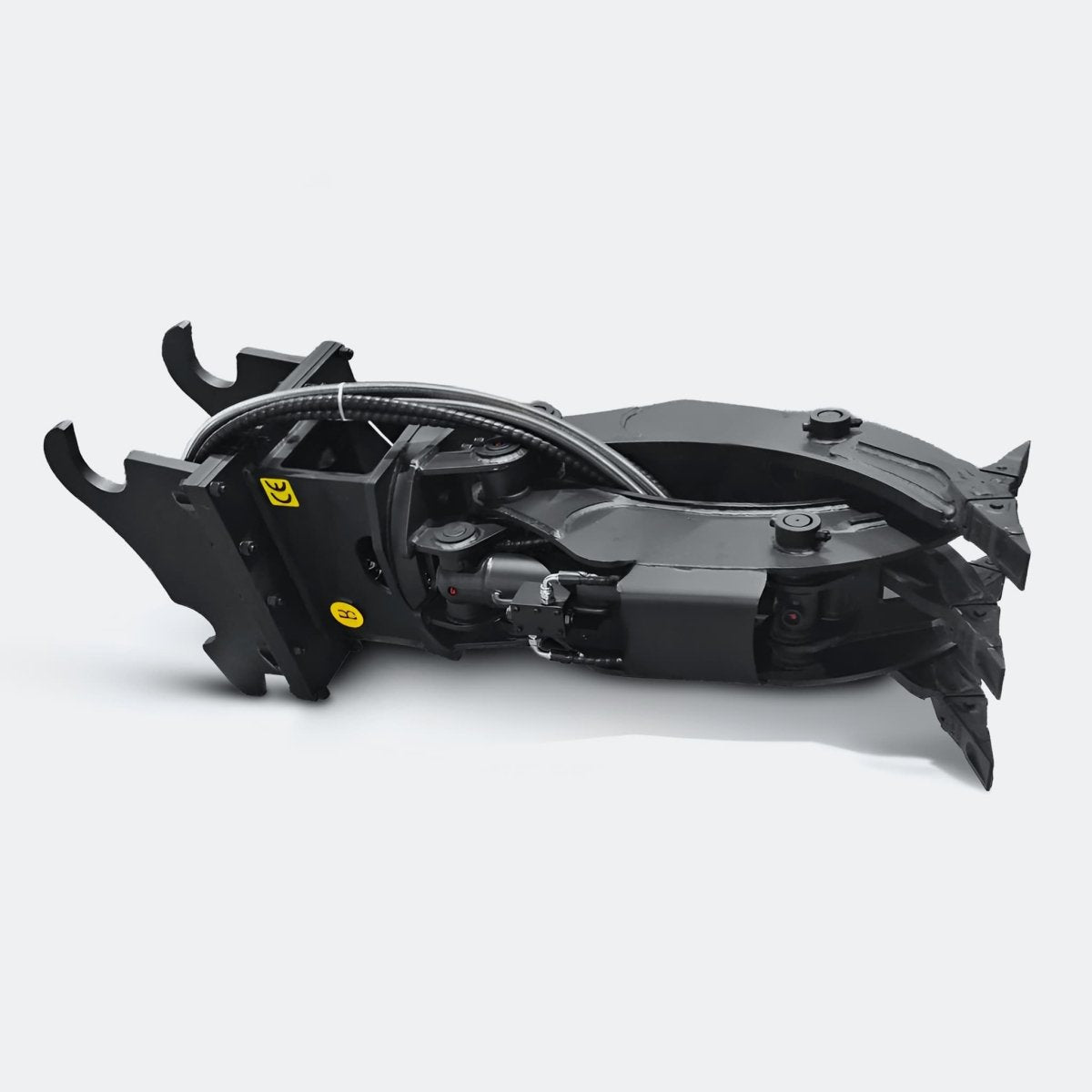

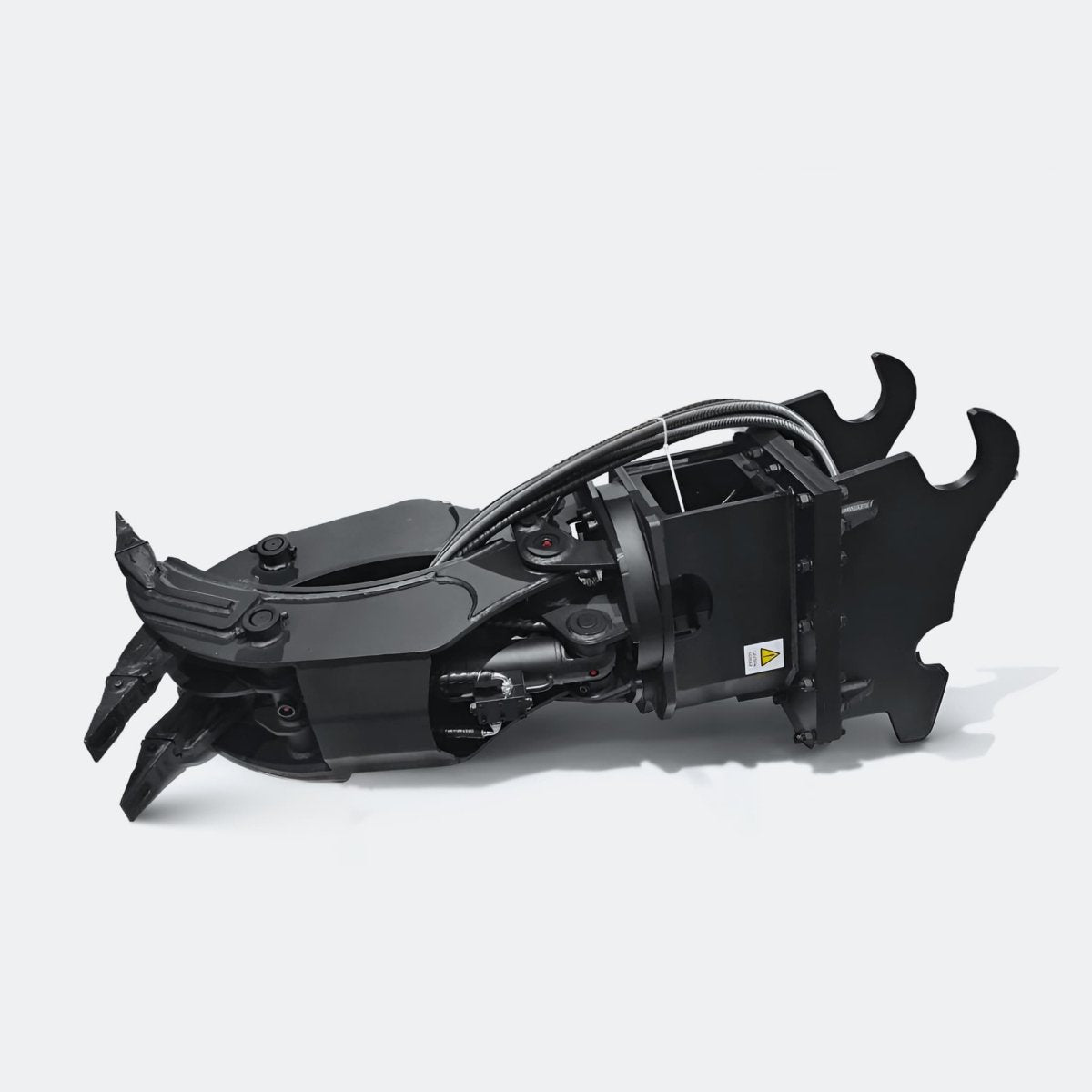

Rotating Hydraulic Log Grapple | 8 ton – 12 ton Excavators

The Rotating Hydraulic Log Grapple is engineered for high-capacity log handling, land clearing, and debris removal on medium to large job sites. Designed for 8–12 ton class excavators, this attachment delivers 360° continuous rotation and powerful clamping force for maximum productivity.

Key Specifications

• Weight: 900 lbs
• Maximum opening width: 55"
• Rotation: 360° in both directions
• Teeth configuration: 3-tooth front / 2-tooth rear (dual-row)
• Construction: T1 and AR400 steel
• Teeth: Replaceable pin-on design
• Includes: Hydraulic cylinder and hoses

Applications

Ideal for forestry operations, firewood processing, storm cleanup, and commercial land clearing. The full 360° rotation allows operators to pick, spin, and place logs precisely without repositioning the machine — improving safety and efficiency.

Durability

Built with reinforced T1 frame steel and AR400 wear plates on high-impact zones. Replaceable teeth and sealed hydraulic components ensure long service life in abrasive, rocky, or wet conditions.

Compatibility

• WBM 120 wedge coupler (fits John Deere 120–135, Sany 120–135, Hitachi 120–135, and other models with WBM 120 interface)
• CWS 120 wedge coupler (fits John Deere 120–135, Sany 120–135, Hitachi 120–135, and all CWS 120-compatible machines)
