Trenching Buckets for Excavators

A trench often looks simple on a drawing. On site, every extra inch can mean more spoil to move, more bedding to place and a larger surface to restore. A trenching bucket keeps the cut focused when the job calls for a narrow route for conduit, irrigation or drainage.

Bully Dog Equipment lists models for 1.5–2.5, 2.5–4, 5–6 and 7–10 ton excavators. Published specifications vary by model but include T1 and AR400 steel, replaceable pin-on teeth and reinforced wear areas. The current range appears on the Excavator Trenching Buckets page.

Key Benefits

The main advantage of an excavator trenching bucket is controlled excavation. A narrower cut usually means less material to remove and return, although digging efficiency still depends on the soil, depth, operator and machine. Practical benefits include:

  • Reducing unnecessary excavation along a defined route.
  • Reaching confined areas with a narrow bucket profile.
  • Replacing worn teeth instead of treating the bucket as disposable.
  • Protecting high-wear zones with abrasion-resistant components.
  • Selecting a cutting configuration for expected ground conditions.

A slim attachment is not automatically faster. Wet clay may pack inside it, and rocky ground can increase wear. Where capacity matters more than a tight cut, Digging Buckets may be more suitable.

Bully Dog Equipment editorial guidance: "Choose the finished trench width first, then work back to the bucket. Pipe diameter alone does not account for bedding, working clearance or compaction space."

Typical Applications

A trench bucket is useful when excavation follows a planned line and the surrounding surface should remain as undisturbed as practical. Common jobs include:

  • Cable trenching for electrical or communication conduit.
  • Utility trenching around homes and commercial properties.
  • Irrigation runs through gardens and landscaped areas.
  • A drainage trench prepared for an approved site plan.
  • Small-scale pipeline installation with suitable clearance.

The attachment has a specific role. Skeleton Buckets separate finer soil from larger material, whereas Tilt Wrist Buckets suit angled grading, ditch cleaning and slope finishing.

Bucket Width Options

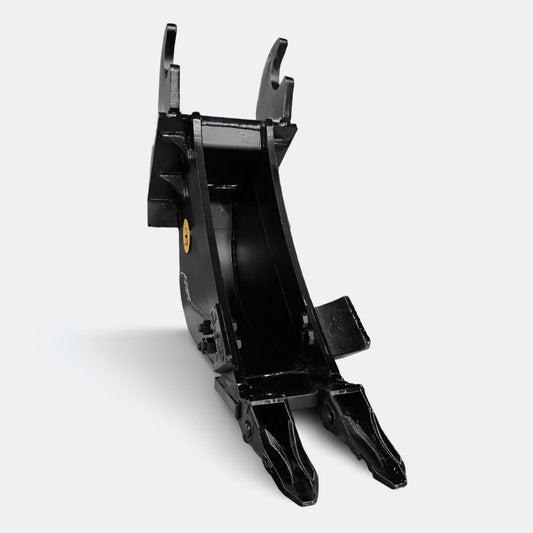

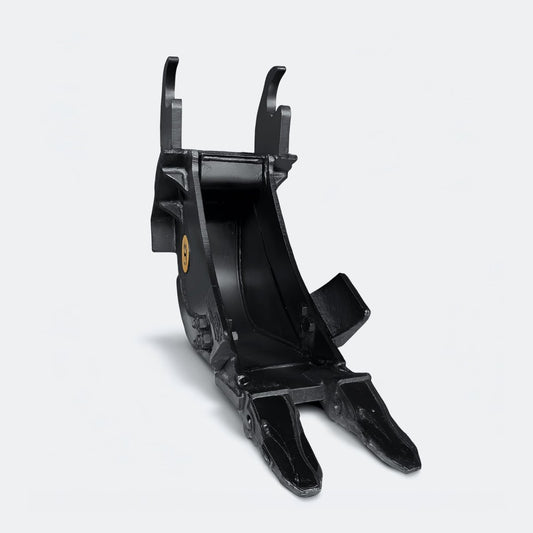

Published sizes vary by excavator class. The 1.5–2.5 ton model is 10 inches wide and weighs 100 lb. Models for 2.5–4 ton machines come in 8- and 12-inch widths, weighing 120–140 lb depending on configuration. For 5–6 ton excavators, the product card gives 8-, 12- and 18-inch choices weighing 150, 170 and 270 lb. The 7–10 ton model is 12 inches wide and weighs 180 lb.

Selecting a trenching bucket for mini excavator work requires more than choosing the smallest bucket width. The service needs room for specified bedding, side clearance and compaction. Soil stability also matters because loose or saturated material may not hold a narrow wall. Project drawings and local requirements should guide the decision.

Compatibility

A mini excavator trenching bucket must suit the machine class and mounting system. Bully Dog Equipment lists pin-mounted, wedge-style and selected quick-coupler options associated with Caterpillar, Bobcat, John Deere, Hitachi, Kubota, Sany, Yanmar and Komatsu. A brand name or operating weight does not establish fit by itself.

Confirm pin diameter, pin-centre spacing, inside lug width, coupler type and allowable attachment weight. An 8-inch compact excavator attachment is shown in both the 25 mm Pins and 30 mm Pins ranges for compatible Chinese machines. Equal pin diameters do not guarantee equal mounting geometry.

Bully Dog Equipment editorial guidance: "Fitment is a set of measurements, not a single number. Pin size, spacing, lug width and coupler design all have to agree."

Why Choose Bully Dog Equipment

The range covers several machine classes, widths and mounting arrangements. Some buckets use teeth alone; selected versions add a removable bolt-on edge for wear protection in abrasive or compacted ground. Custom-fabricated lugging may be available for unlisted machines, subject to confirmation.

Before choosing a trench bucket for excavator use, buyers can compare it with the available Mini Excavators and send their mounting measurements to Bully Dog Equipment. Availability should be checked for the required width and coupler. The company's Warranty Information states that excavator attachments have a three-month parts warranty from purchase; labour is excluded, and claims require manufacturer pre-approval.

FAQ

What width should I choose?

Base the decision on the finished trench, bedding, clearance, soil conditions and compaction access. The narrowest option is not always appropriate.

What is the difference from a digging bucket?

A trenching model concentrates on a narrow channel. A general digging bucket normally offers greater capacity for broader excavation.

Can it be used for utility installation?

Yes. Product descriptions identify electrical conduit, plumbing, irrigation and drainage work. The installation must still follow the project design and applicable rules.

Which excavators are compatible?

Compatibility depends on operating class, mounting geometry, coupler style and attachment weight. Verify the measurements for the individual machine.

Do you offer different pin sizes?

Yes. Related mini-excavator ranges include 25 mm and 30 mm pin systems, but the complete mounting dimensions must match.

References:

The product details and warranty statements were checked against these Bully Dog Equipment sources:

Product configurations and availability can change, so the selected item page should be checked again before ordering.
