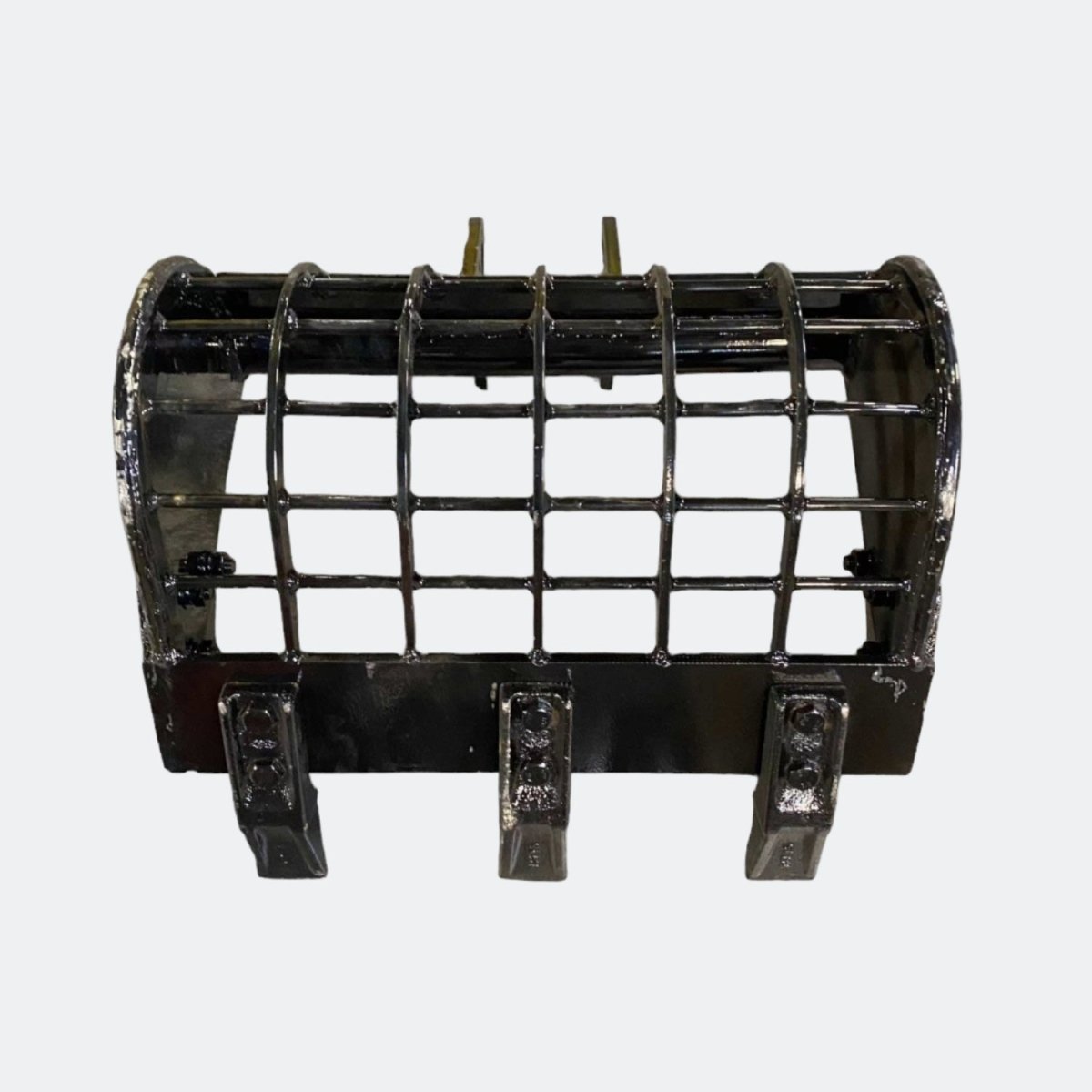

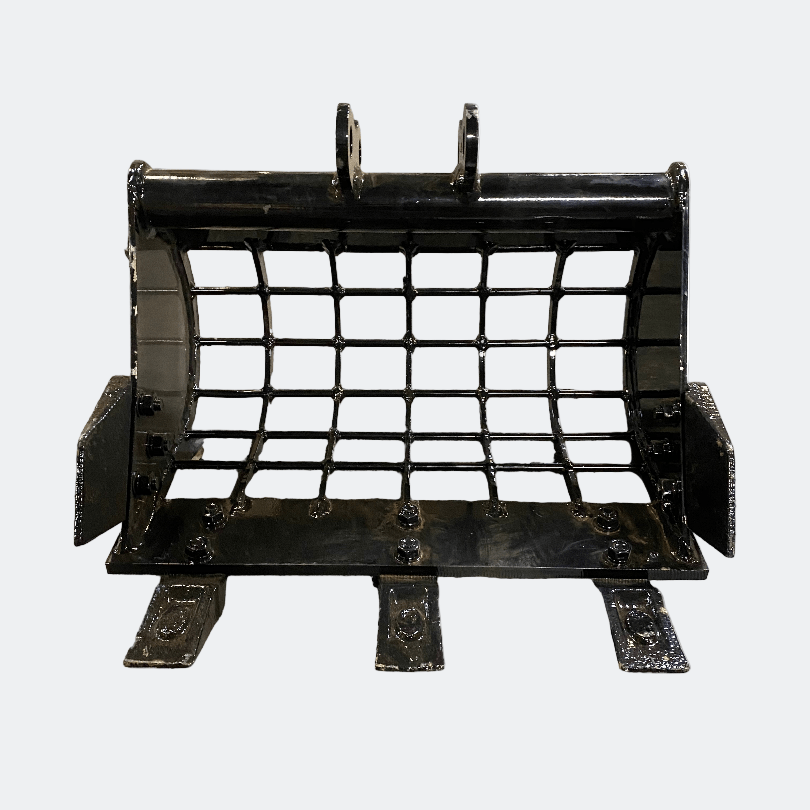

Chinese Mini Excavator: 17" Skeleton Digging Bucket, 25 mm pins

The 17-inch Skeleton Digging Bucket with 25 mm pins is designed for precision trenching, sifting, and separating materials on small-scale excavation projects. Built for Chinese mini excavators in the 1–1.8 ton class, this bucket combines durability with efficiency.

Key Specifications

• Width: 17 inches
• Pin size: 25 mm
• Pin center-to-center: 90 mm
• Dipper gap: 92 mm

Applications

Ideal for landscaping, utility installation, and light demolition where soil needs to be screened from rock or debris. The skeleton design reduces material weight while maximizing sorting efficiency.

Durability

Manufactured with hardened steel for longer wear life and reinforced side plates to handle challenging ground conditions.

Compatibility

Fits most Chinese mini excavator models (1–1.8 ton) equipped with 25 mm pins.
