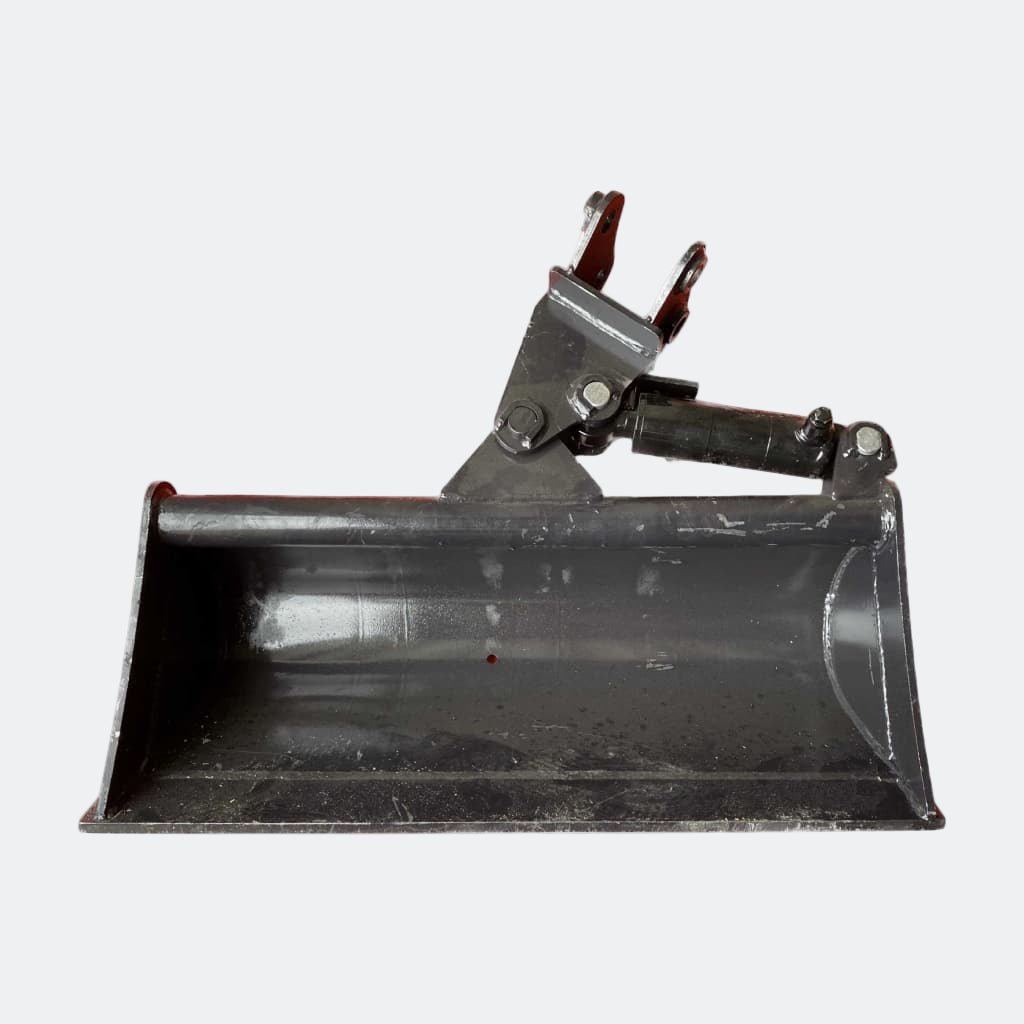

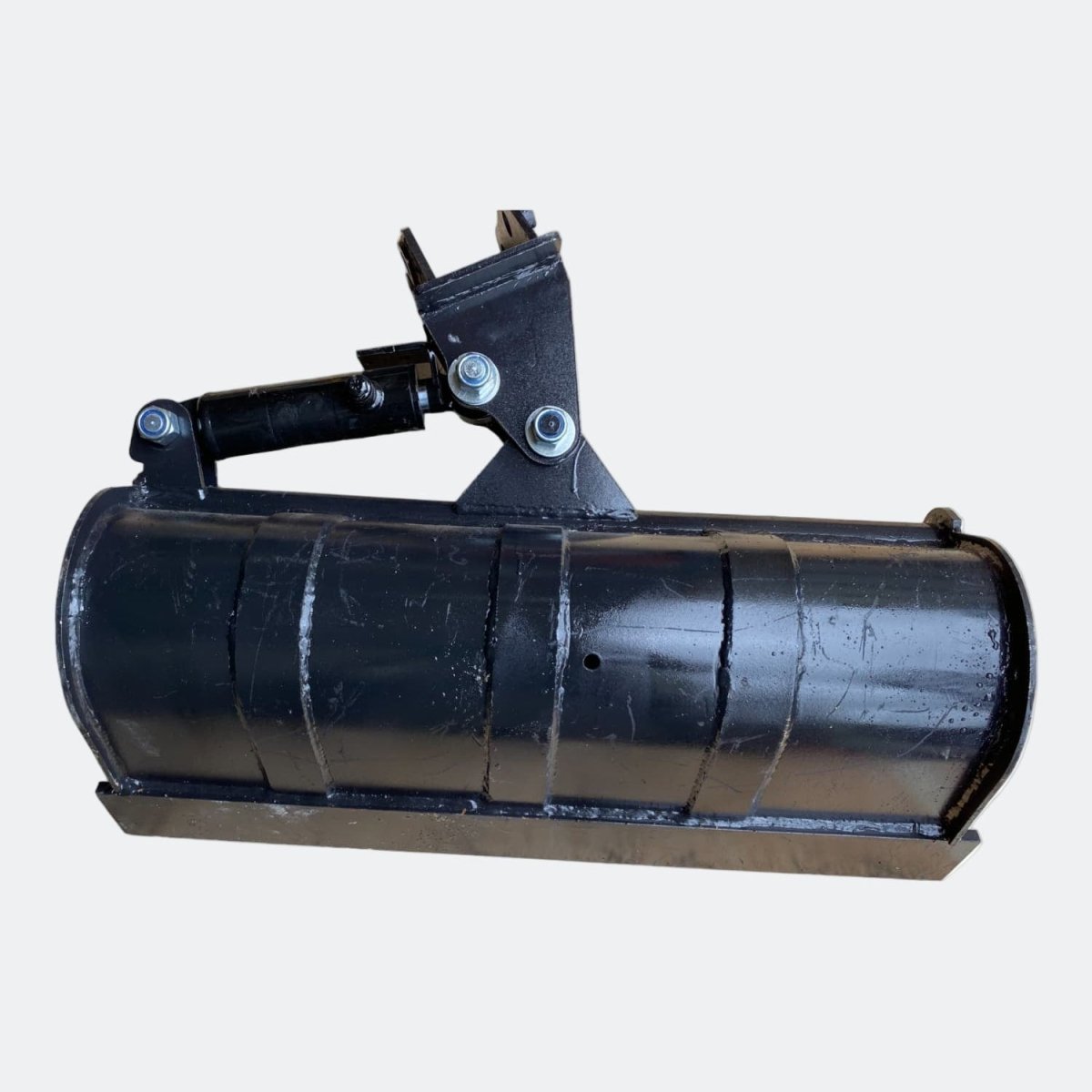

Chinese Mini Excavator: 32" Hydraulic Tilt Clean up Bucket (Twist Wrist Bucket), 25 mm pins

The 32-inch Hydraulic Tilt Clean Up Bucket (Twist Wrist Bucket) is designed for precision grading, slope work, and site cleanup on compact job sites. Built for Chinese mini excavators in the 1–1.8 ton class, this attachment tilts 45° in both directions for unmatched control without repositioning the machine.

Key Specifications

• Width: 32"
• Pin size: 25 mm
• Pin center-to-center: 90 mm
• Dipper gap: 92 mm
• Tilt range: 45° left / 45° right
• Includes: Hydraulic cylinder and hoses

Applications

Ideal for landscaping, drainage work, and final grading where angled surfaces or tight corners are required. The hydraulic tilt function allows operators to create slopes, clean ditches, or level material with minimal machine movement.

Durability

Constructed with reinforced side plates and hardened pivot points to handle repeated tilting under load. The hydraulic cylinder is sealed and shielded to resist dirt and moisture for long-term reliability in demanding conditions.

Compatibility

Fits most Chinese mini excavator models from 1–1.8 ton equipped with 25 mm mounting pins, 90 mm pin center-to-center spacing, and 92 mm dipper gap.
