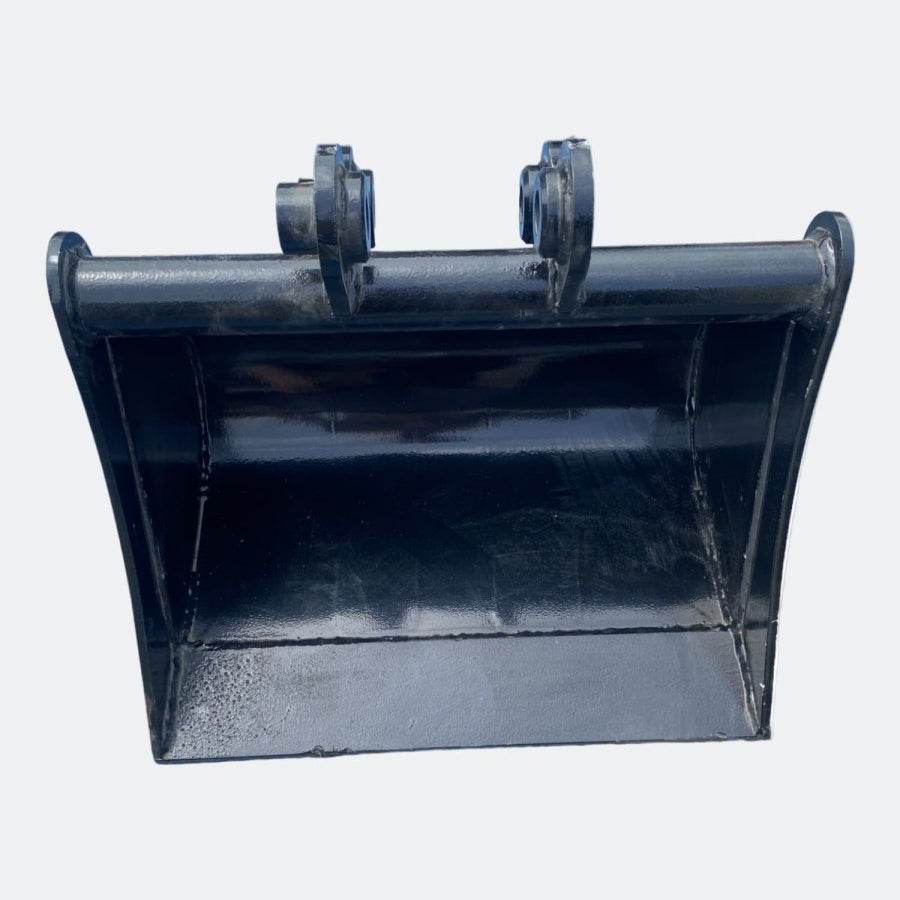

Chinese Mini Excavator: Clean-up Bucket, 25 mm pins

The Clean-up Bucket is engineered for grading, backfilling, and site cleanup on compact excavation projects. Designed for Chinese mini excavators in the 1–1.8 ton class, this attachment is available in 32", 36", and 48" widths to match job size and machine capacity.

Key Specifications

• Available widths: 32", 36" or 48"
• Pin size: 25 mm
• Pin center-to-center: 90 mm
• Dipper gap: 92 mm

Applications

Ideal for landscaping, utility finishing, and post-excavation cleanup where smooth, controlled material movement is required. The curved profile improves load retention and grading accuracy, while the multiple width options allow operators to balance reach and capacity.

Durability

Built with reinforced steel side plates and a wear-resistant base to withstand daily use in abrasive or rocky conditions. The open-back design reduces clogging and strain during loading and dumping cycles.

Compatibility

Fits most Chinese mini excavator models from 1–1.8 ton equipped with 25 mm mounting pins, 90 mm pin center-to-center spacing, and 92 mm dipper gap.
