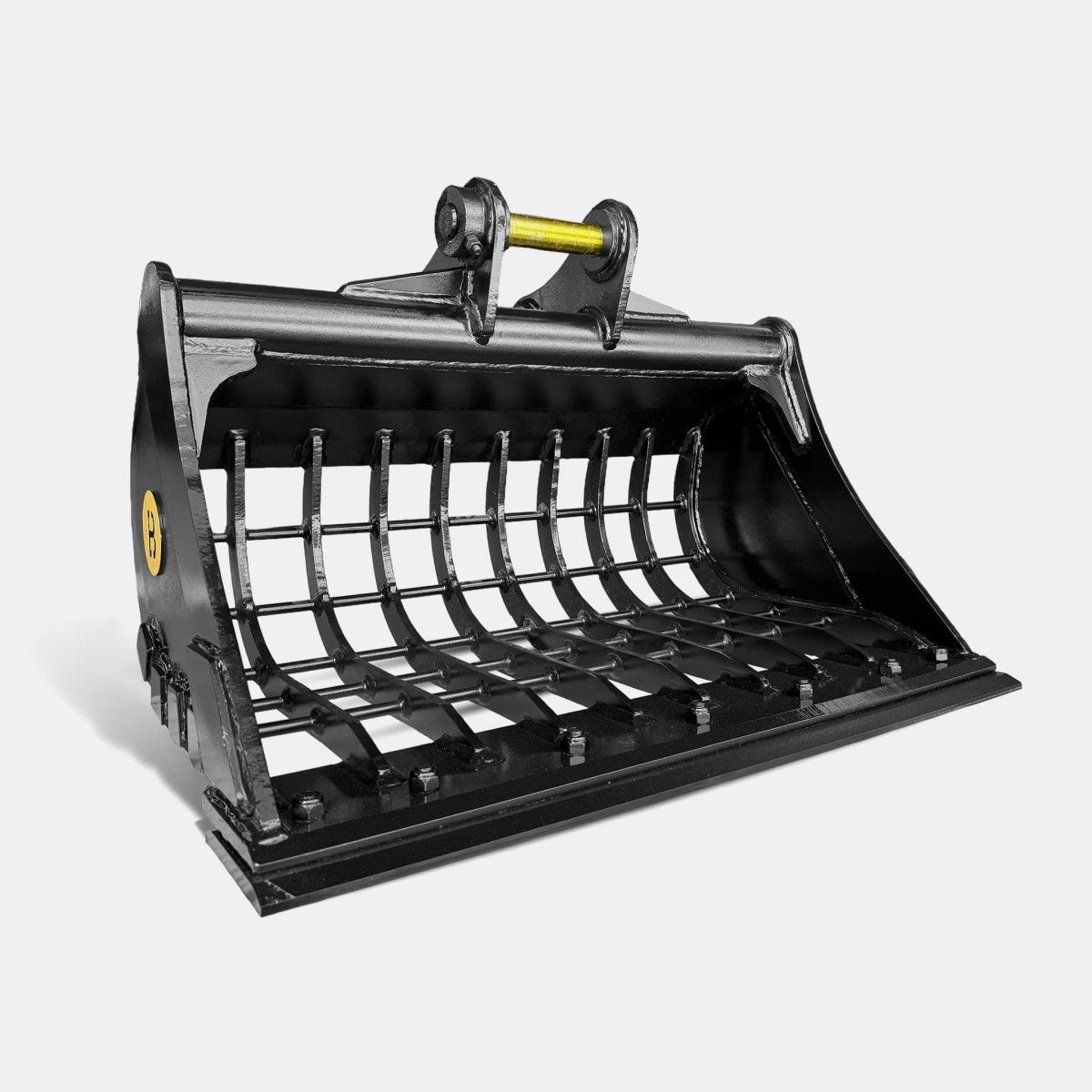

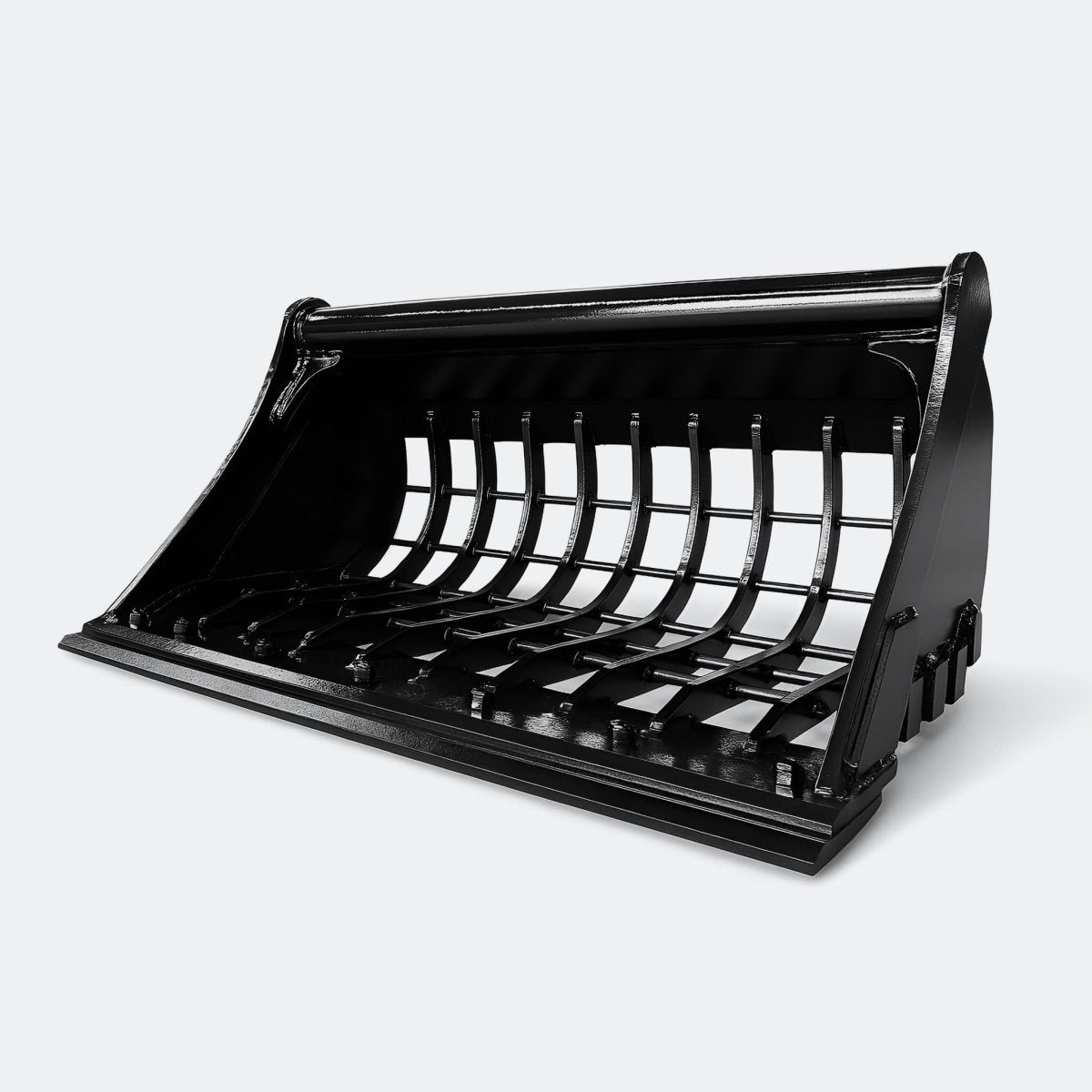

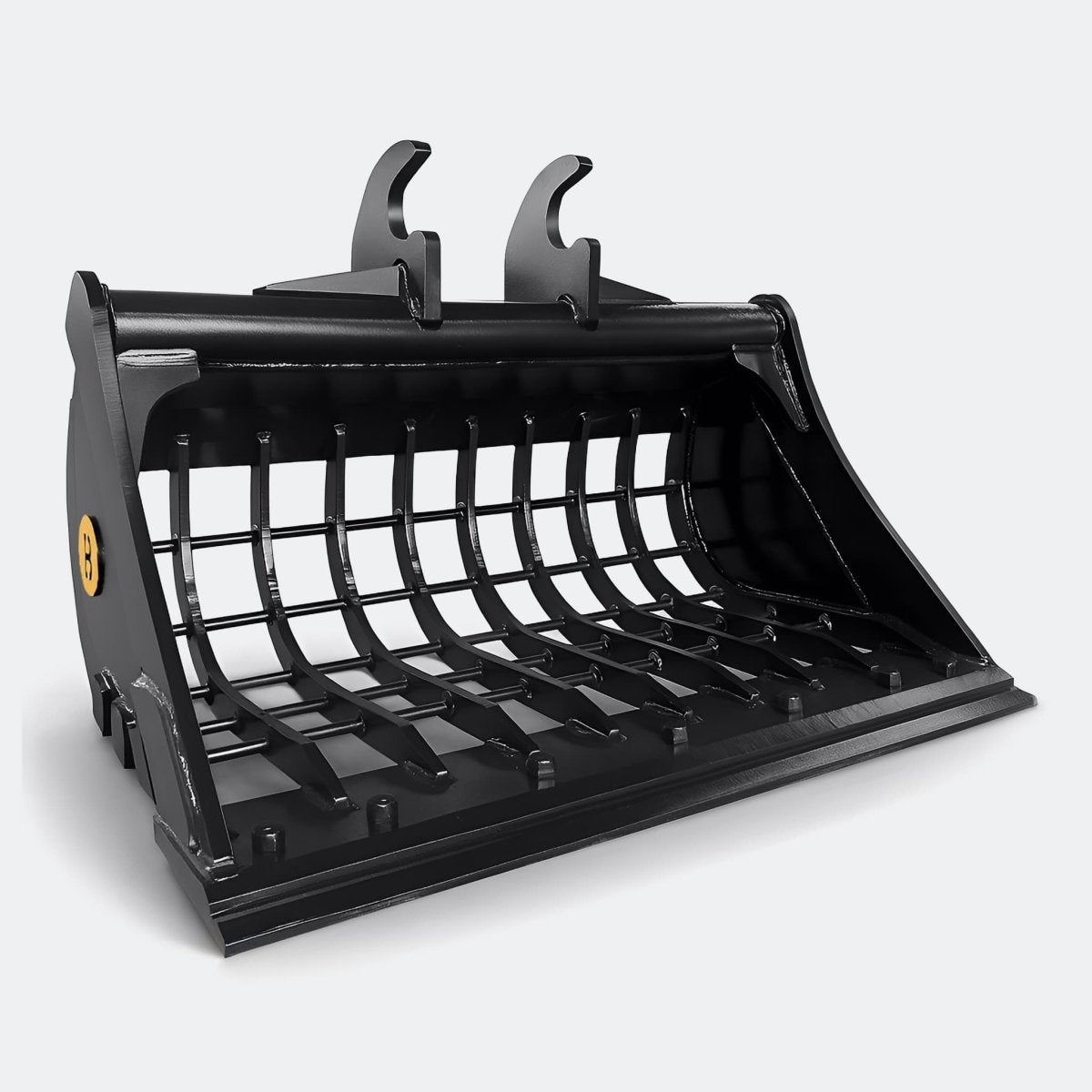

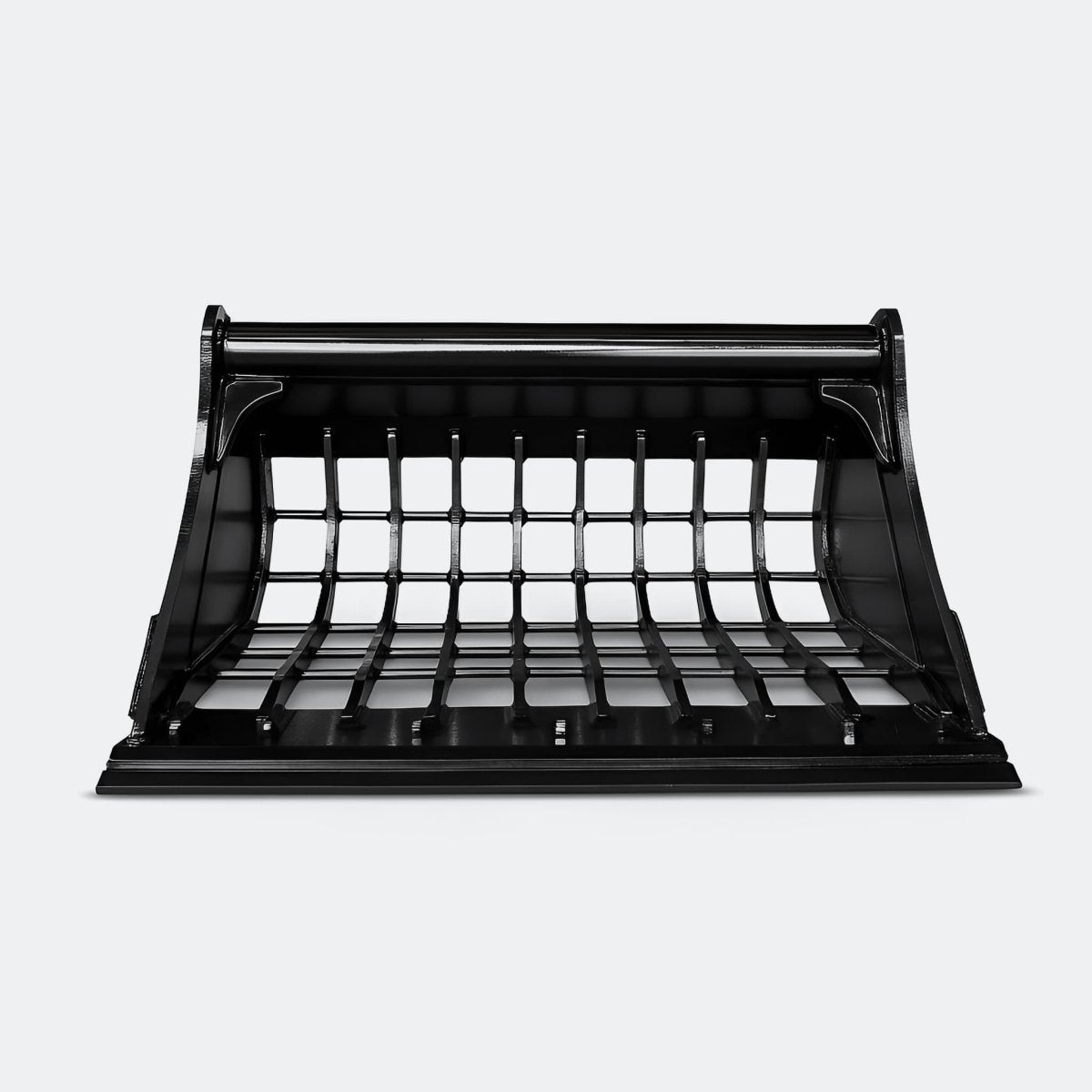

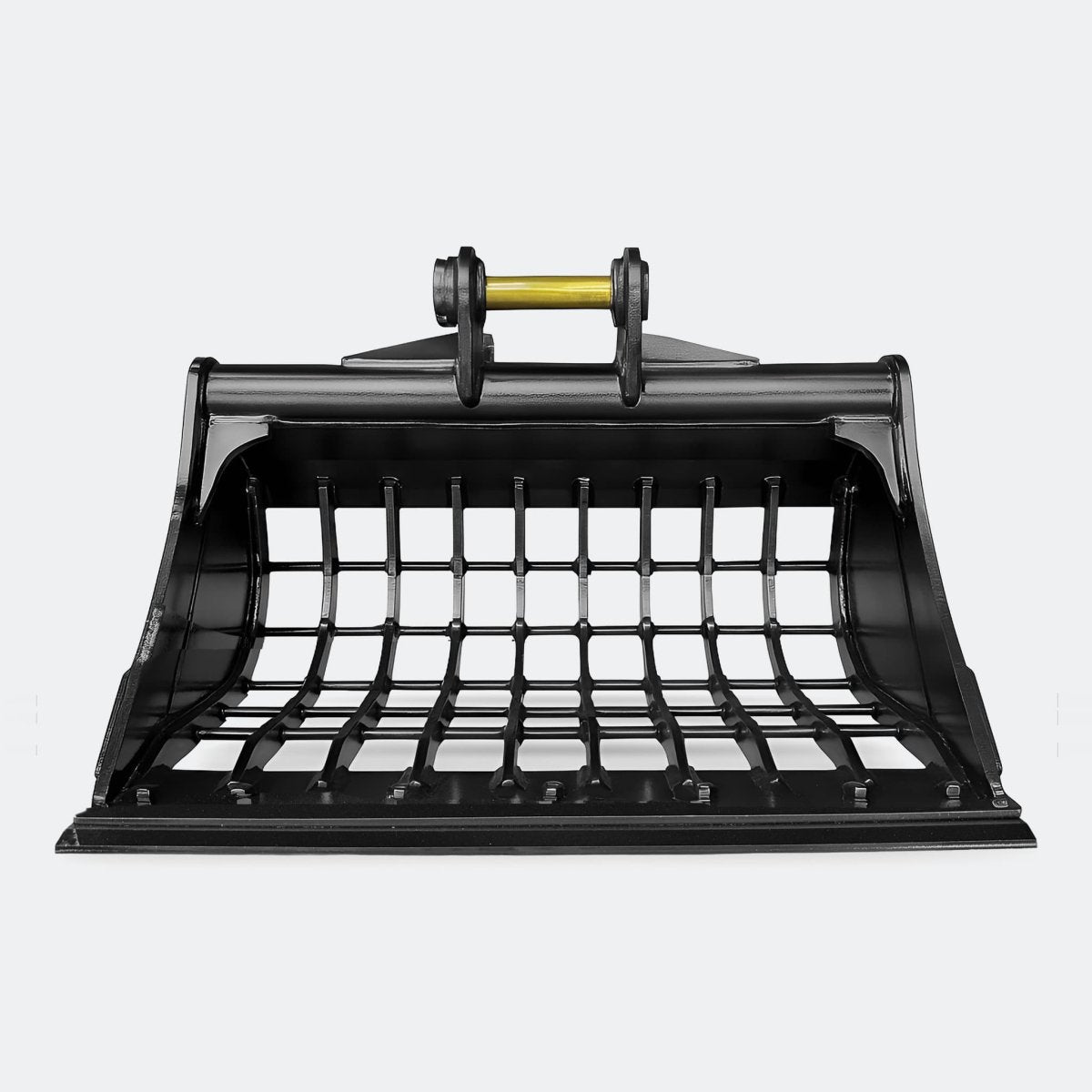

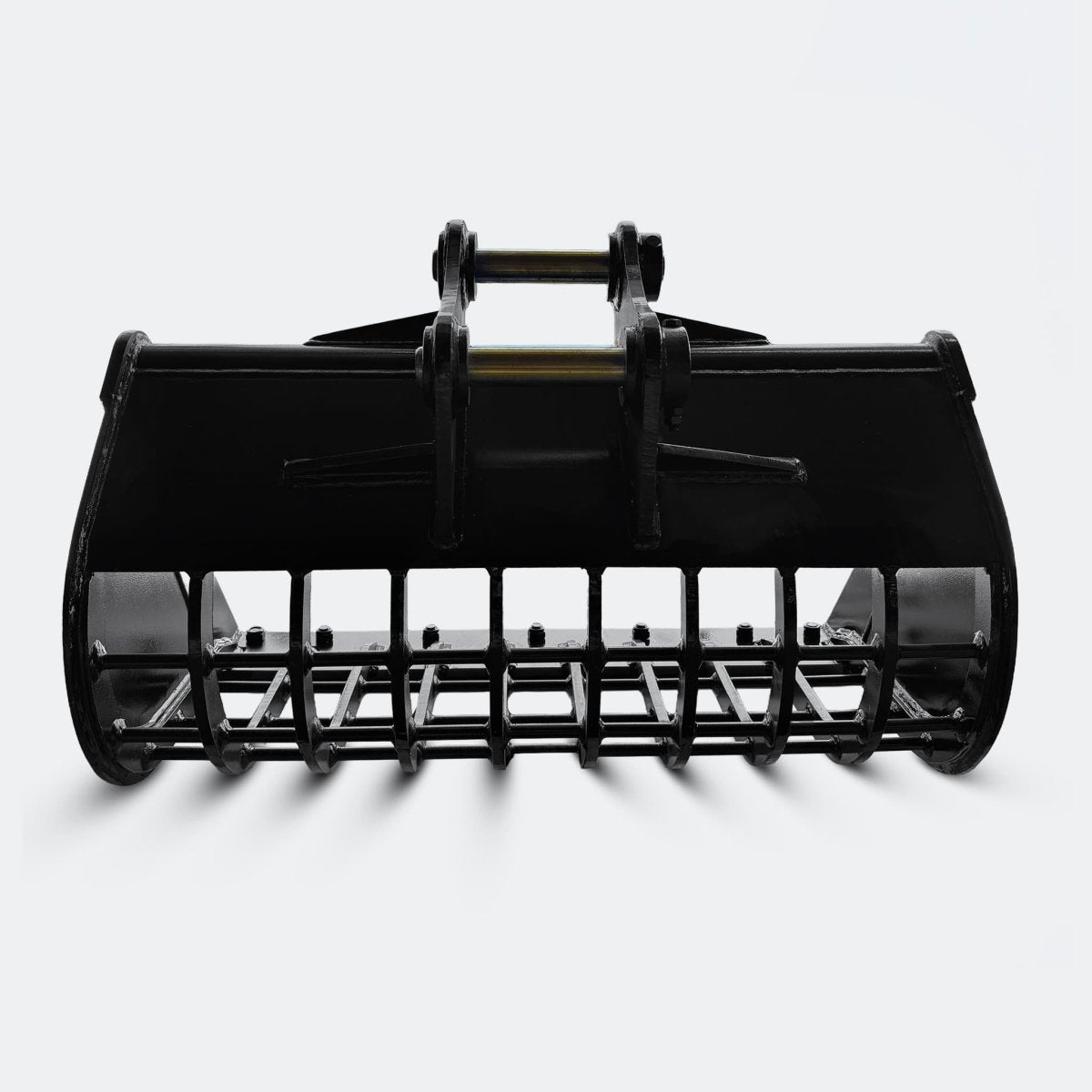

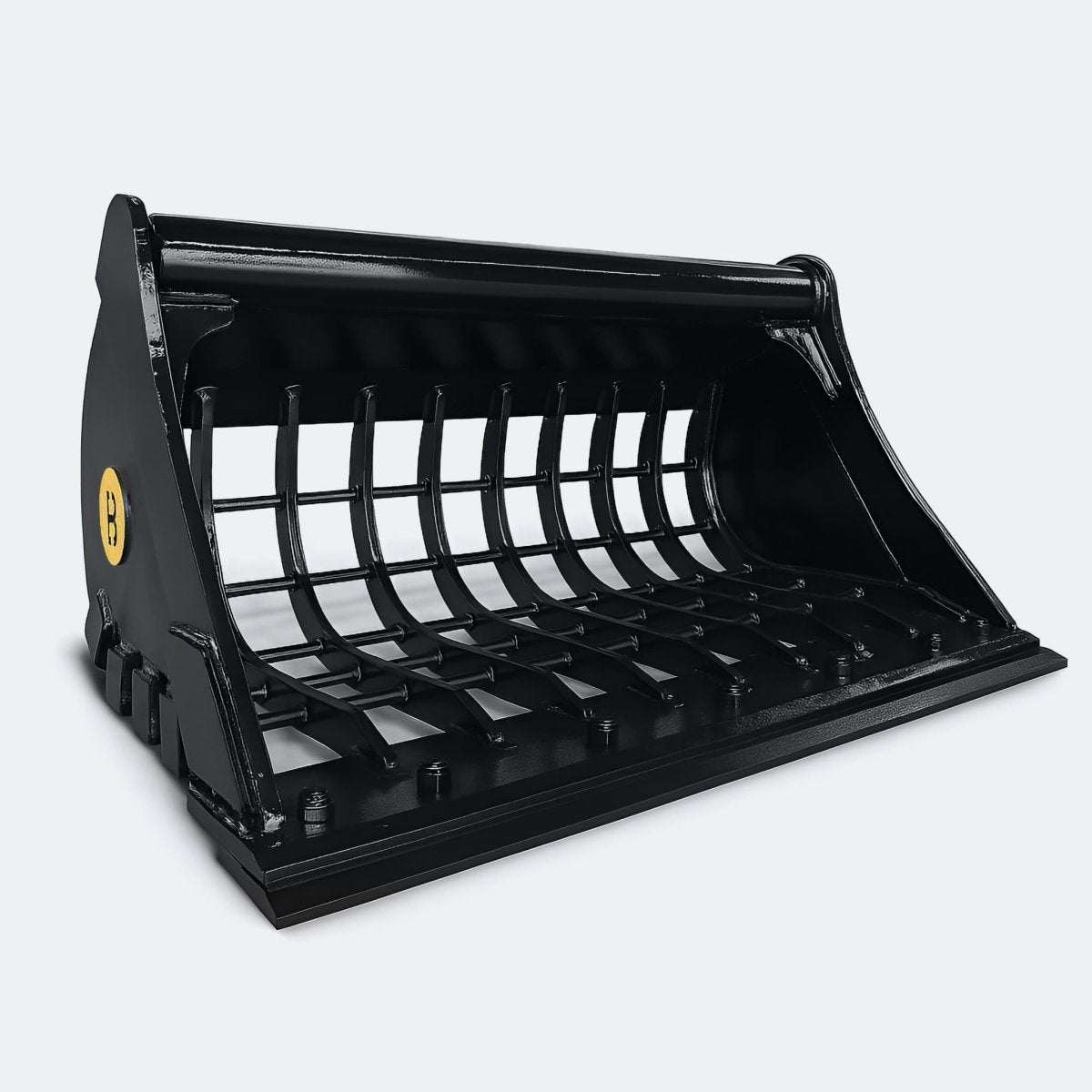

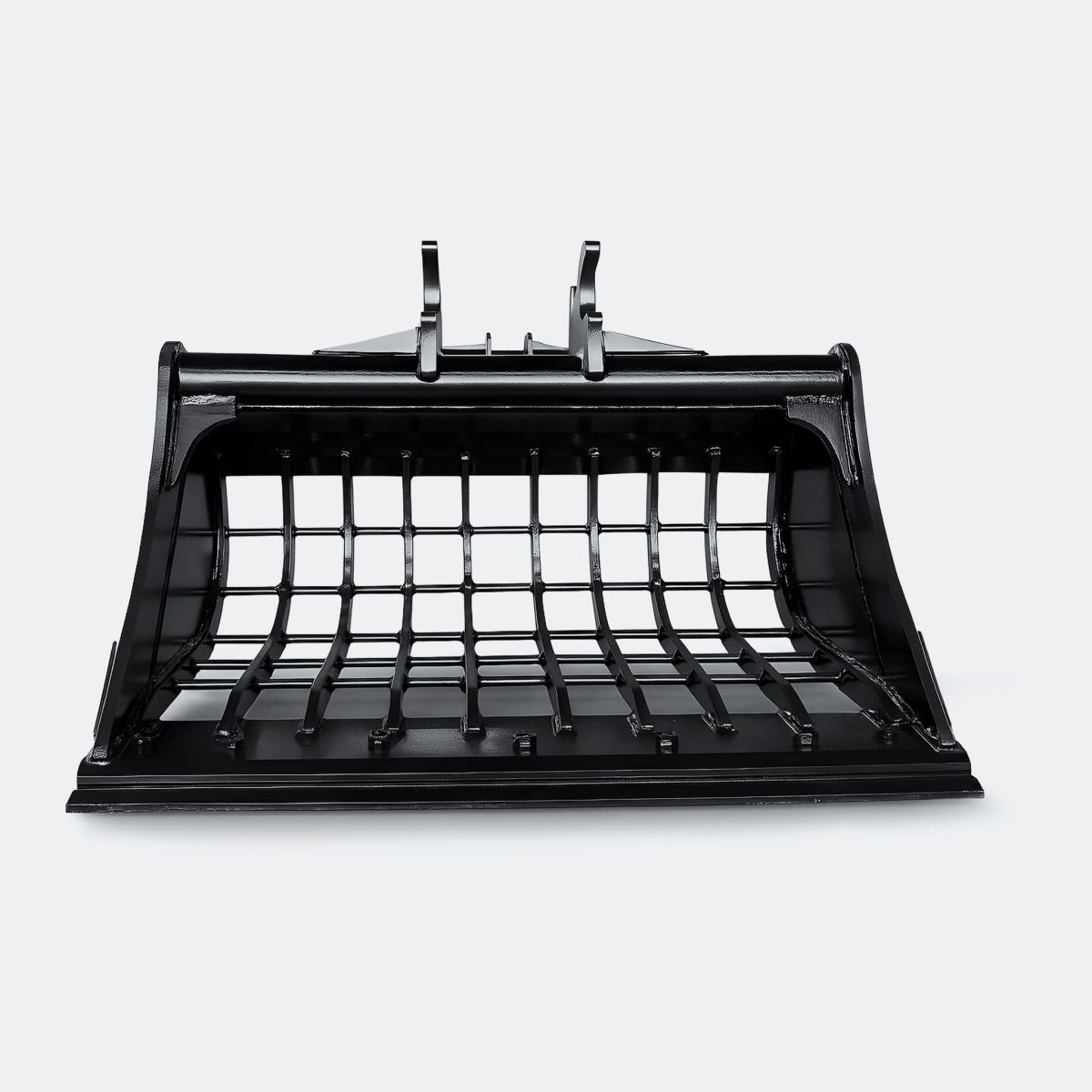

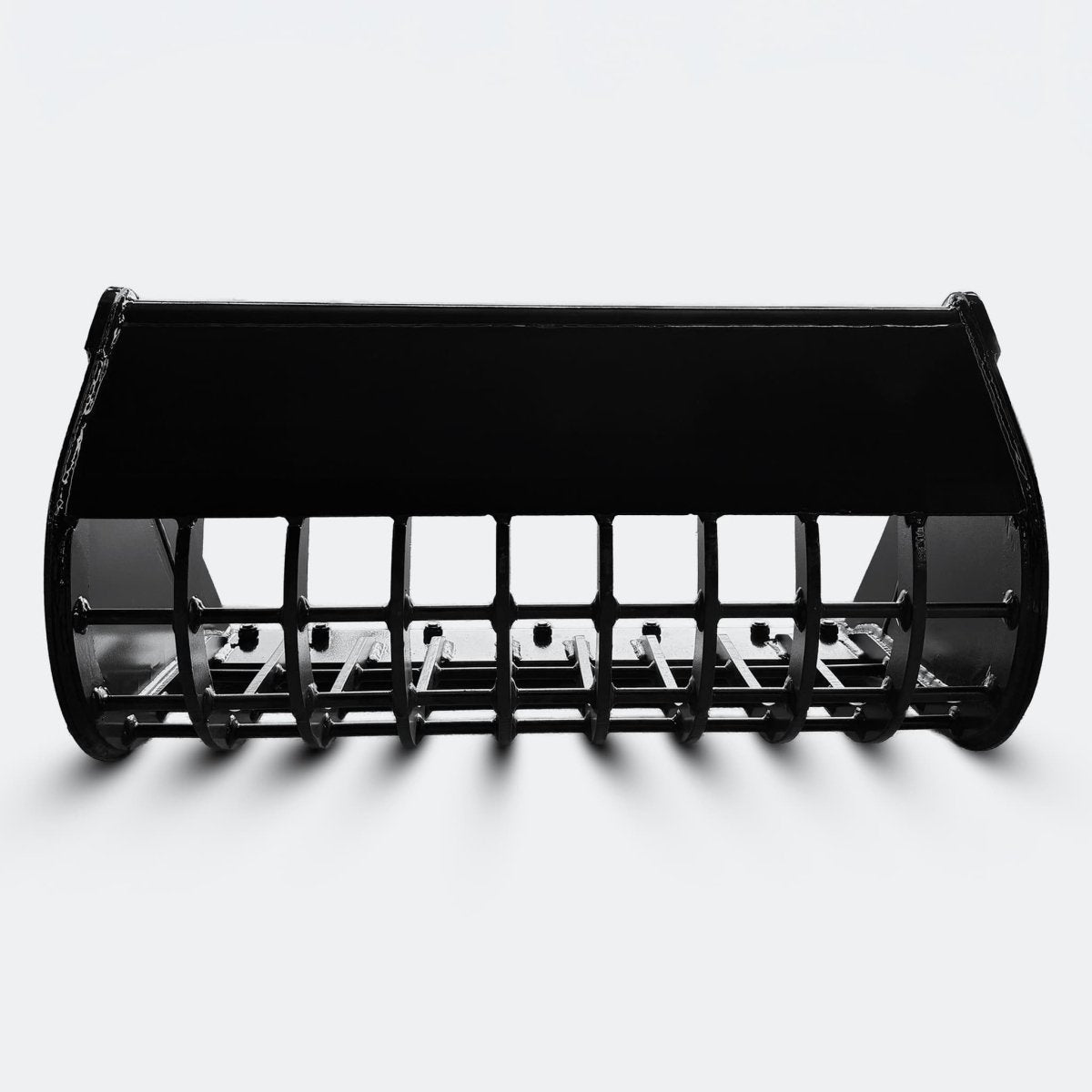

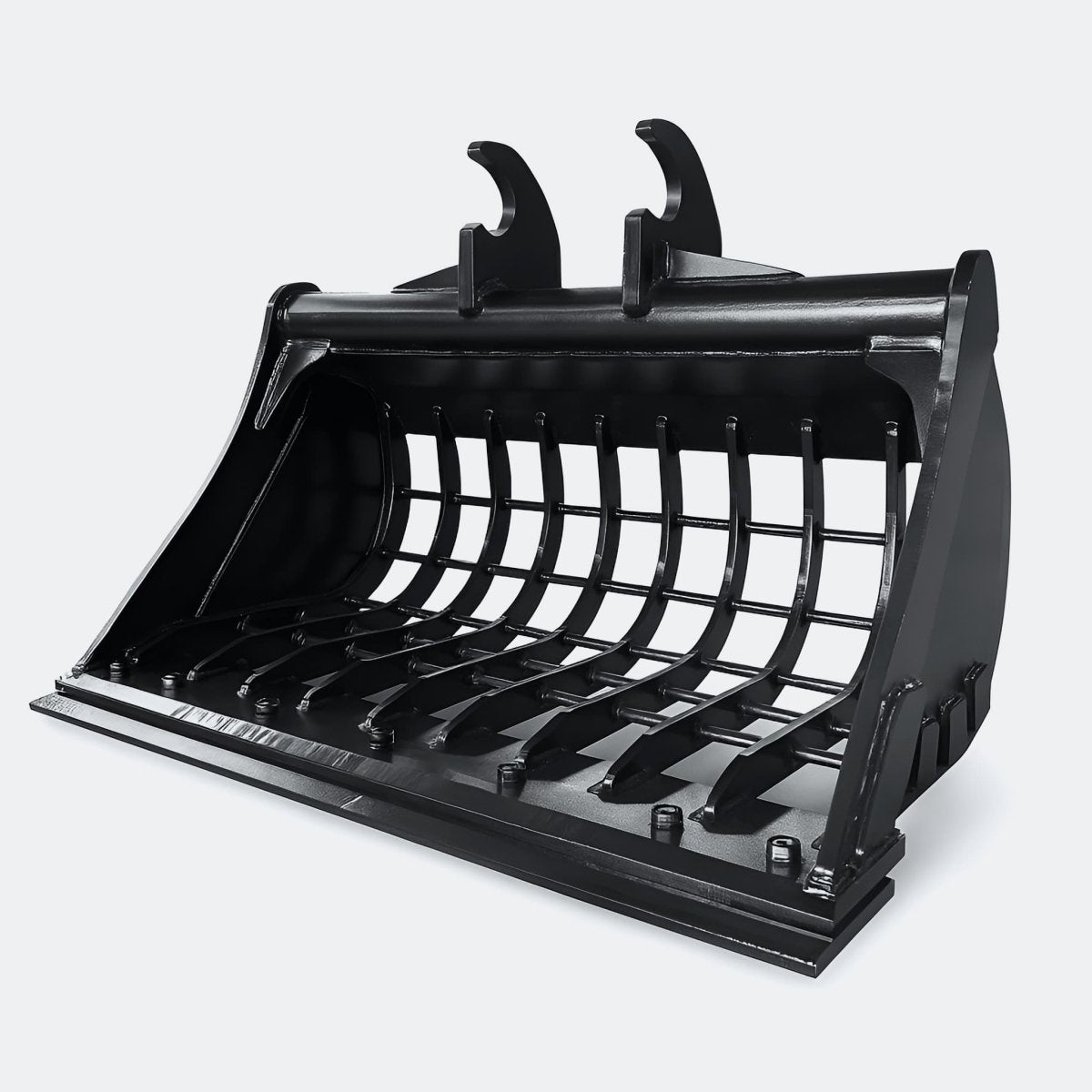

The 36-inch Skeleton Bucket with Bolt-On Cutting Edge is engineered for efficient material separation and light excavation in rocky or root-filled ground. Designed for 2–4 ton class excavators, this attachment reduces retained load while offering durable edge protection.
Key Specifications
Available sizes: 36"
Weight: 275 lbs
Construction: T1 and AR400 steel
Wear protection: AR400 side wear plates
Cutting edge: Bolt-on, reversible AR400 steel
Rib spacing: 3.5"
Applications
Ideal for landscaping, utility trenching, and site cleanup where soil must be screened from rocks, roots, or debris. The open-frame design allows fines to fall through during digging, reducing payload and improving efficiency.
Durability
Built with high-strength T1 frame steel and AR400-reinforced side plates to resist abrasion and impact. The reversible bolt-on cutting edge extends service life and protects against wear in abrasive conditions.
Compatibility
John Deere 26–40 wedge (WBM 35)
Sany 26–40 wedge (WBM 35)
Hitachi 26–40 wedge (WBM 35)
Kubota 26–40 wedge
Caterpillar 303–304 pins
Yanmar 26–40 pins
AGT KU45 pins
Longking CDM6035 pins
Bobcat X-Change
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
