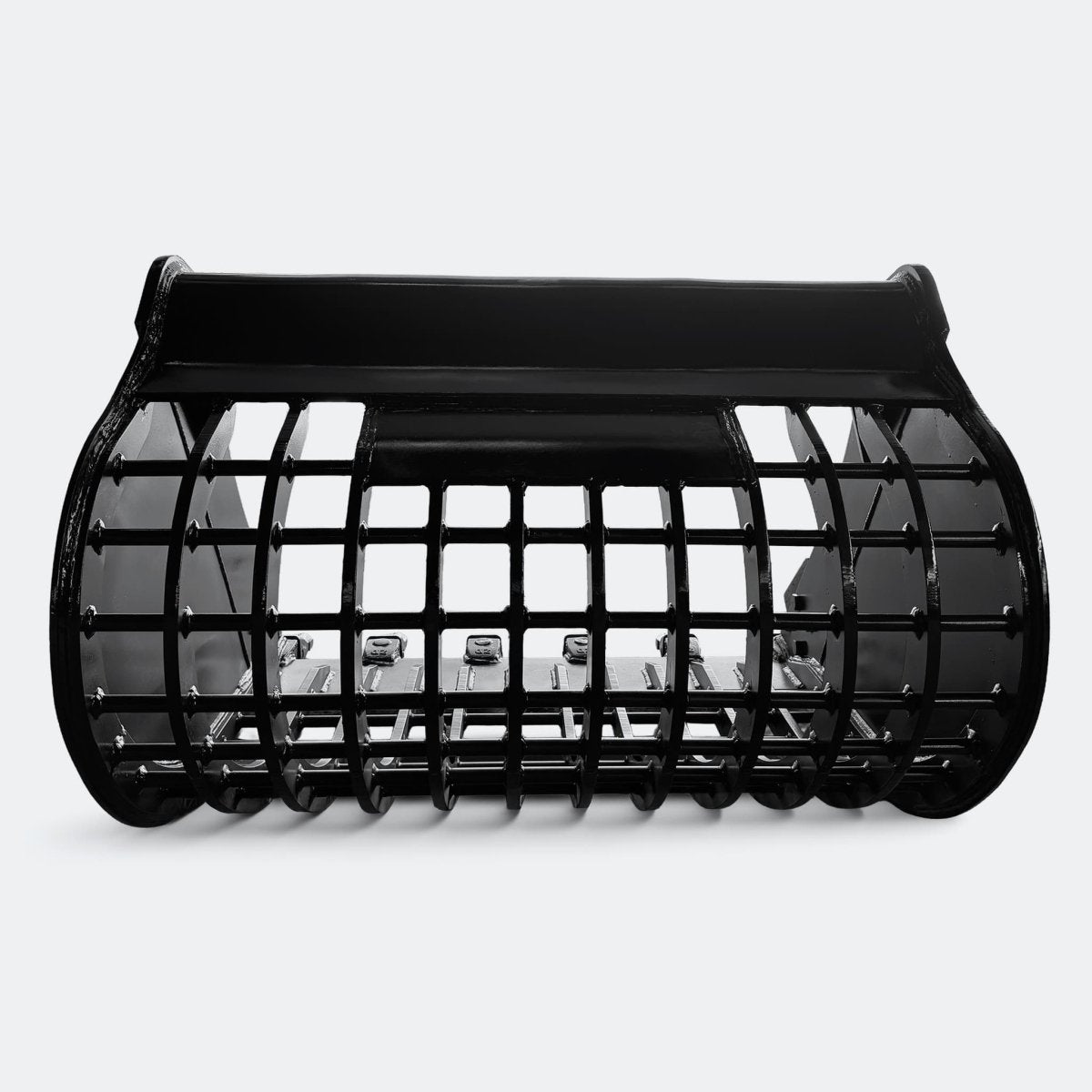

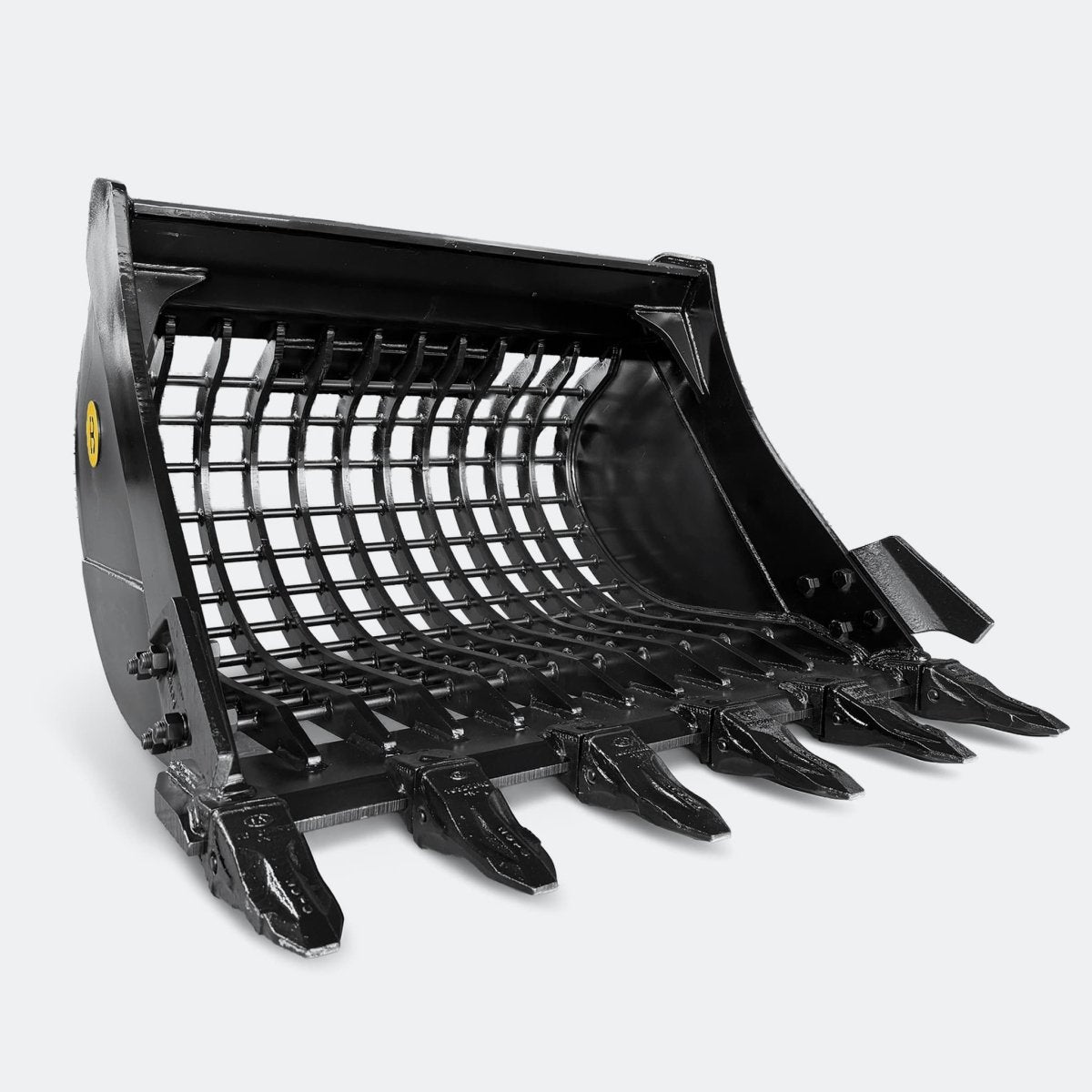

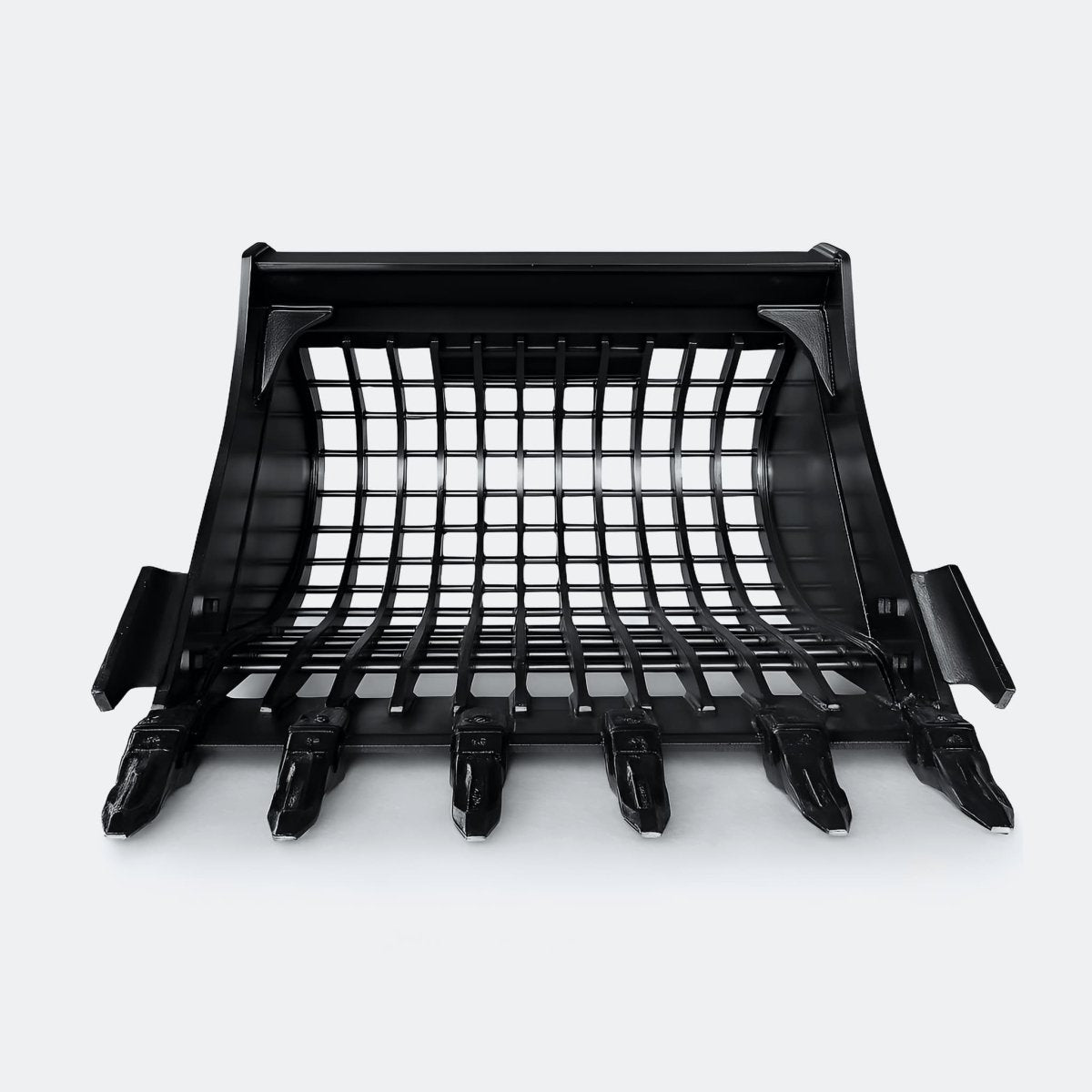

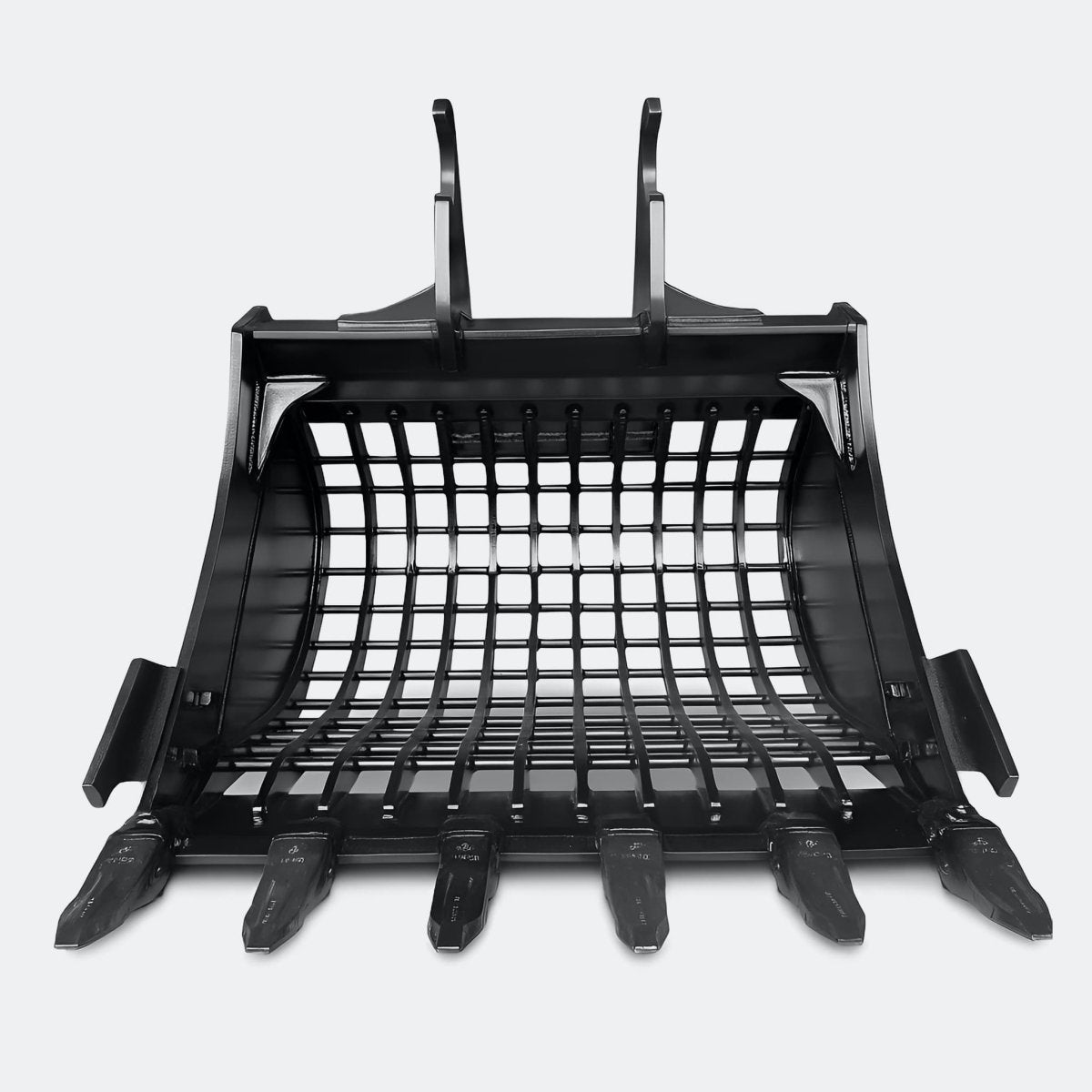

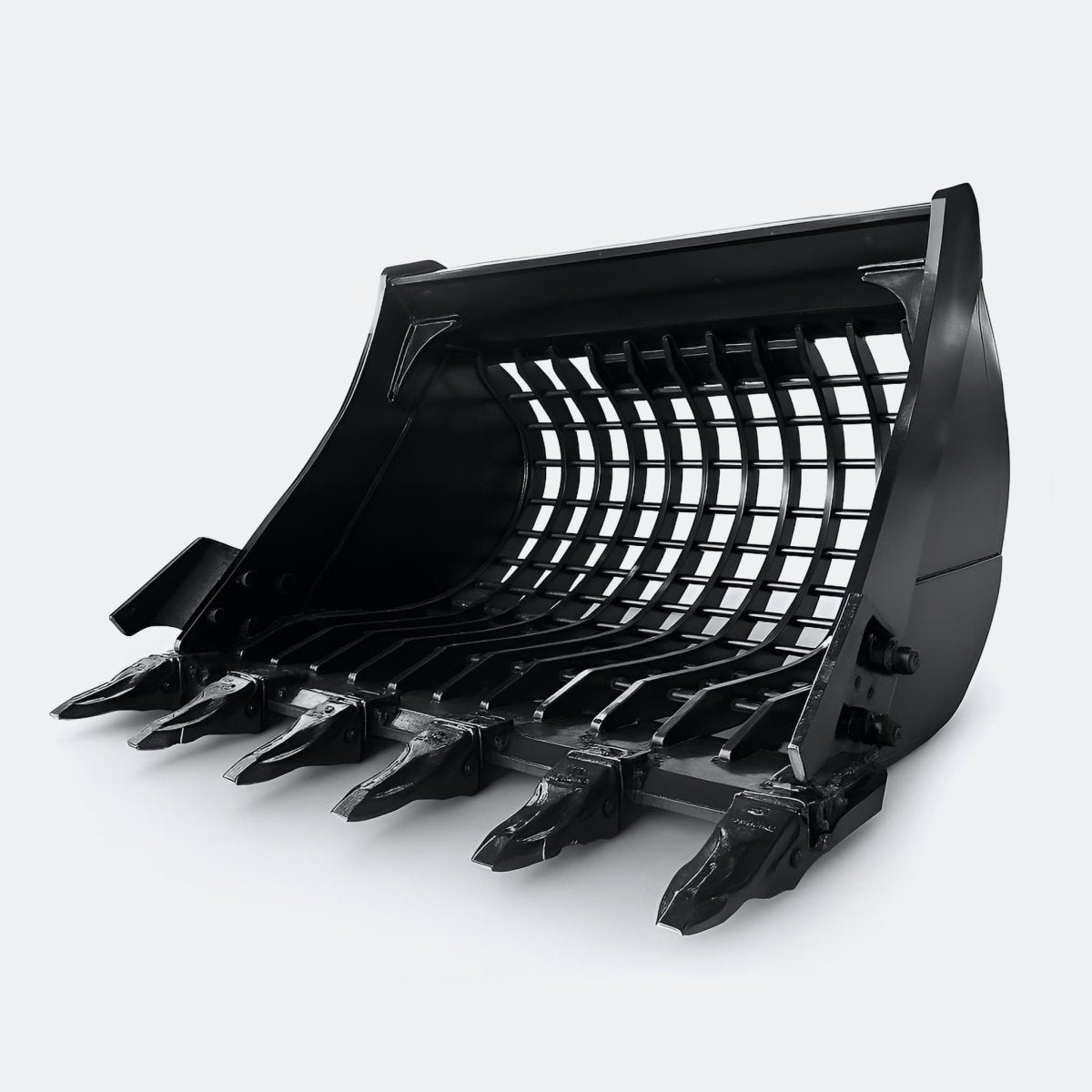

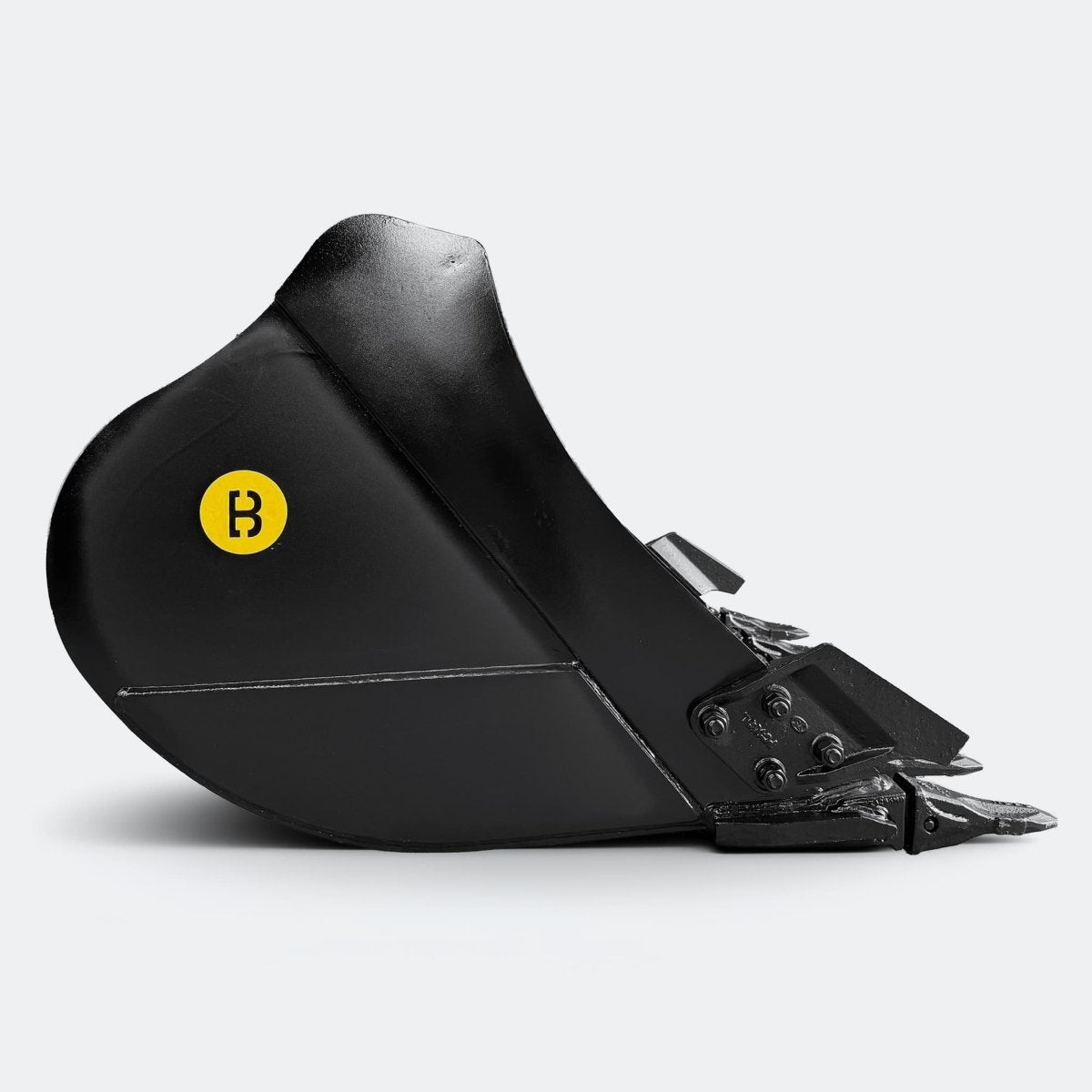

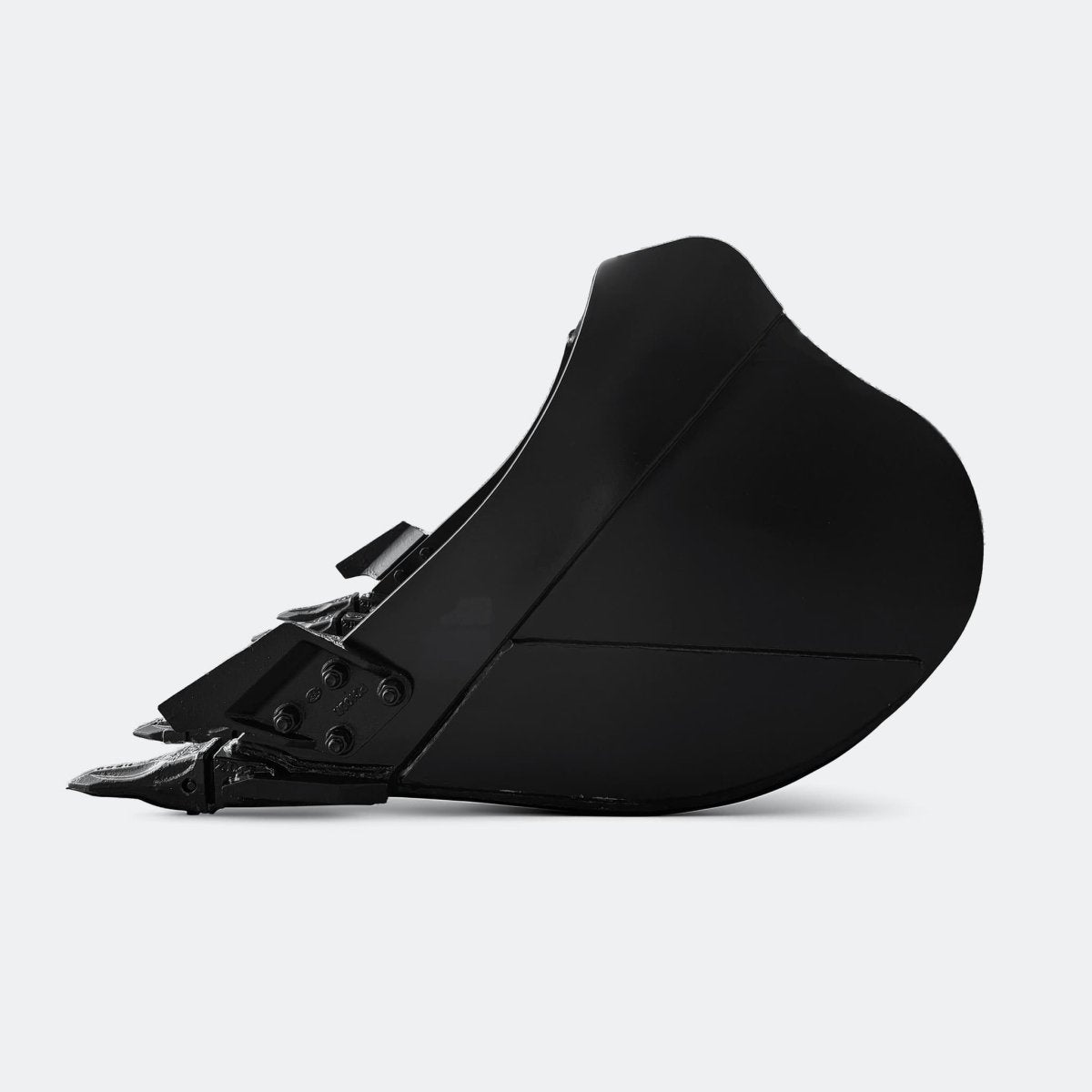

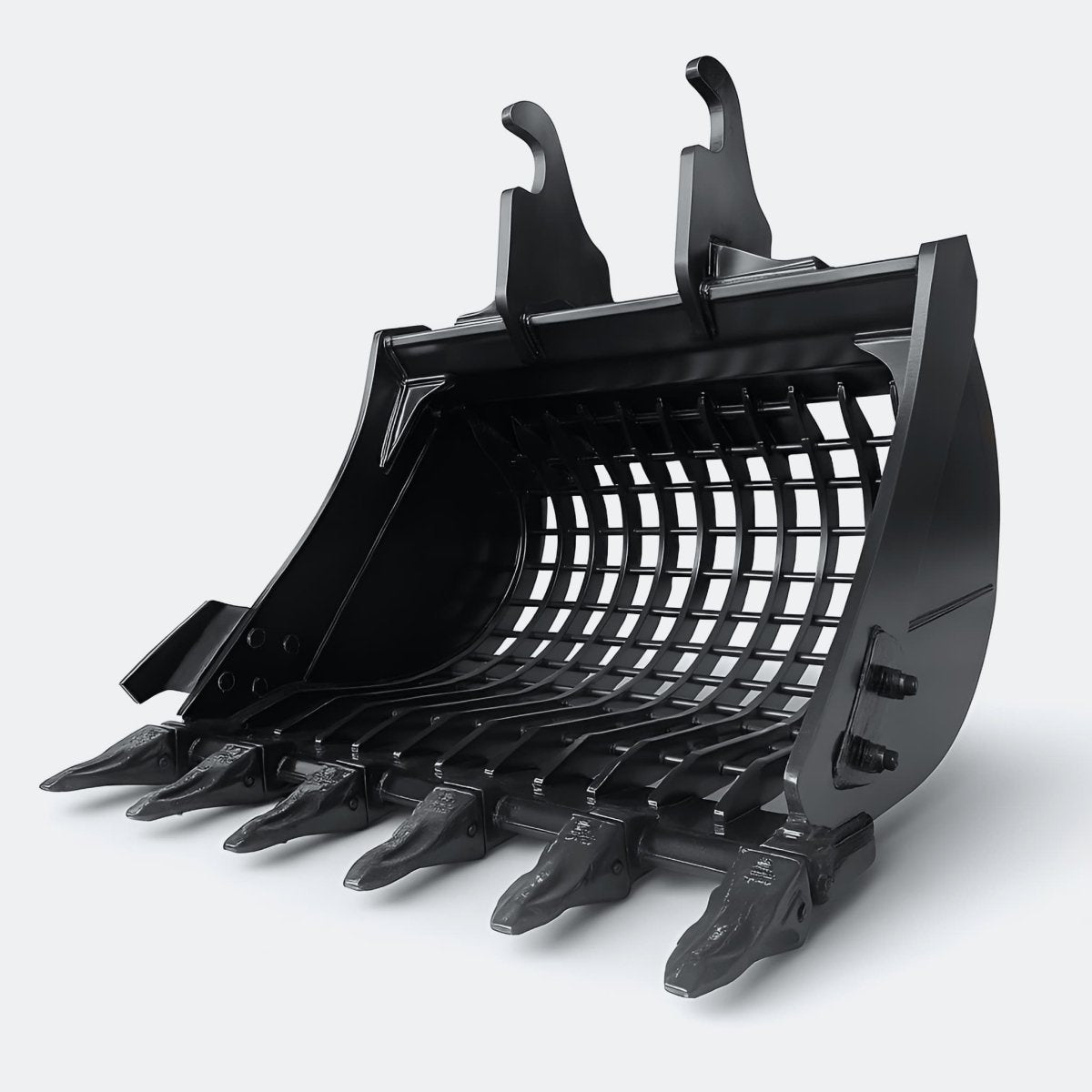

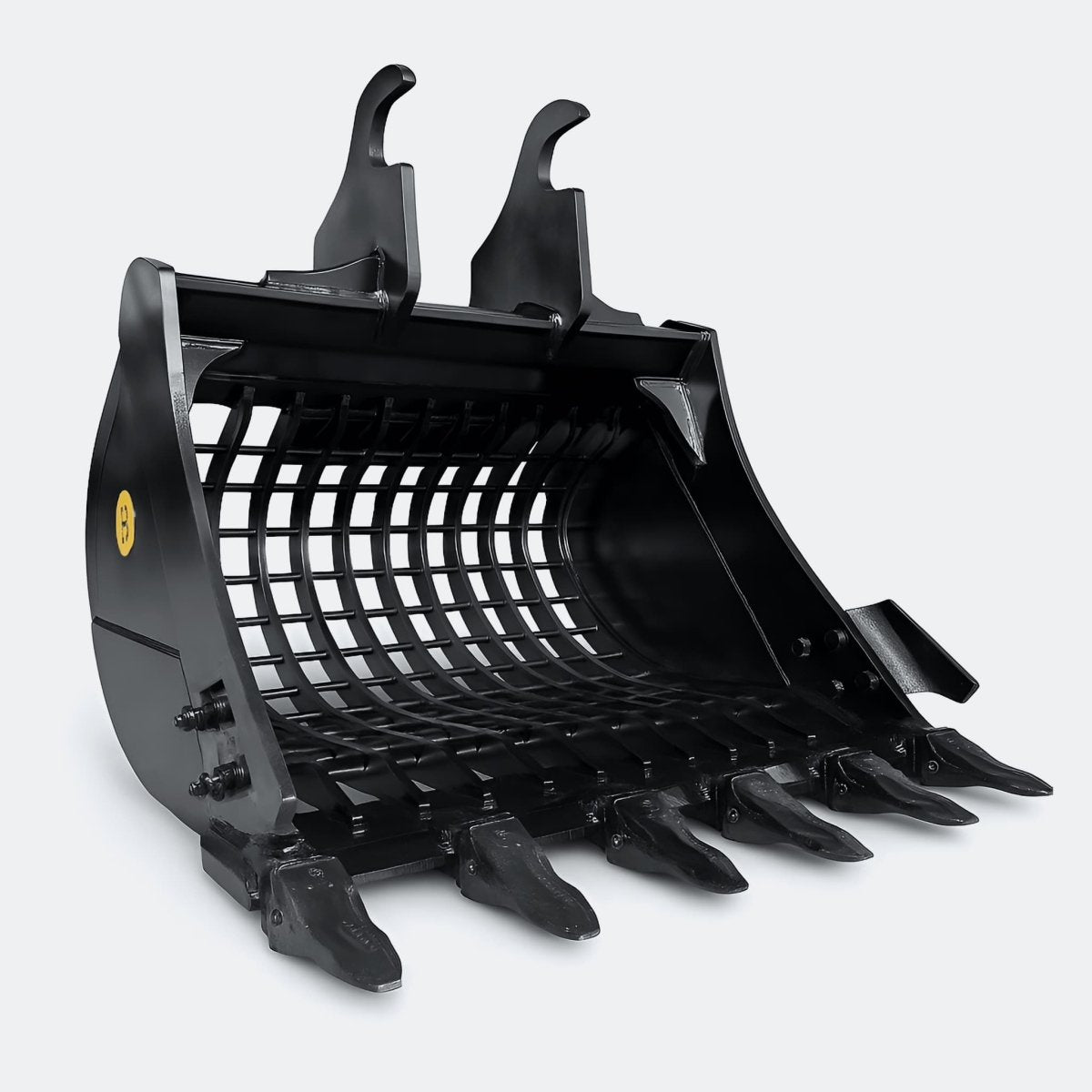

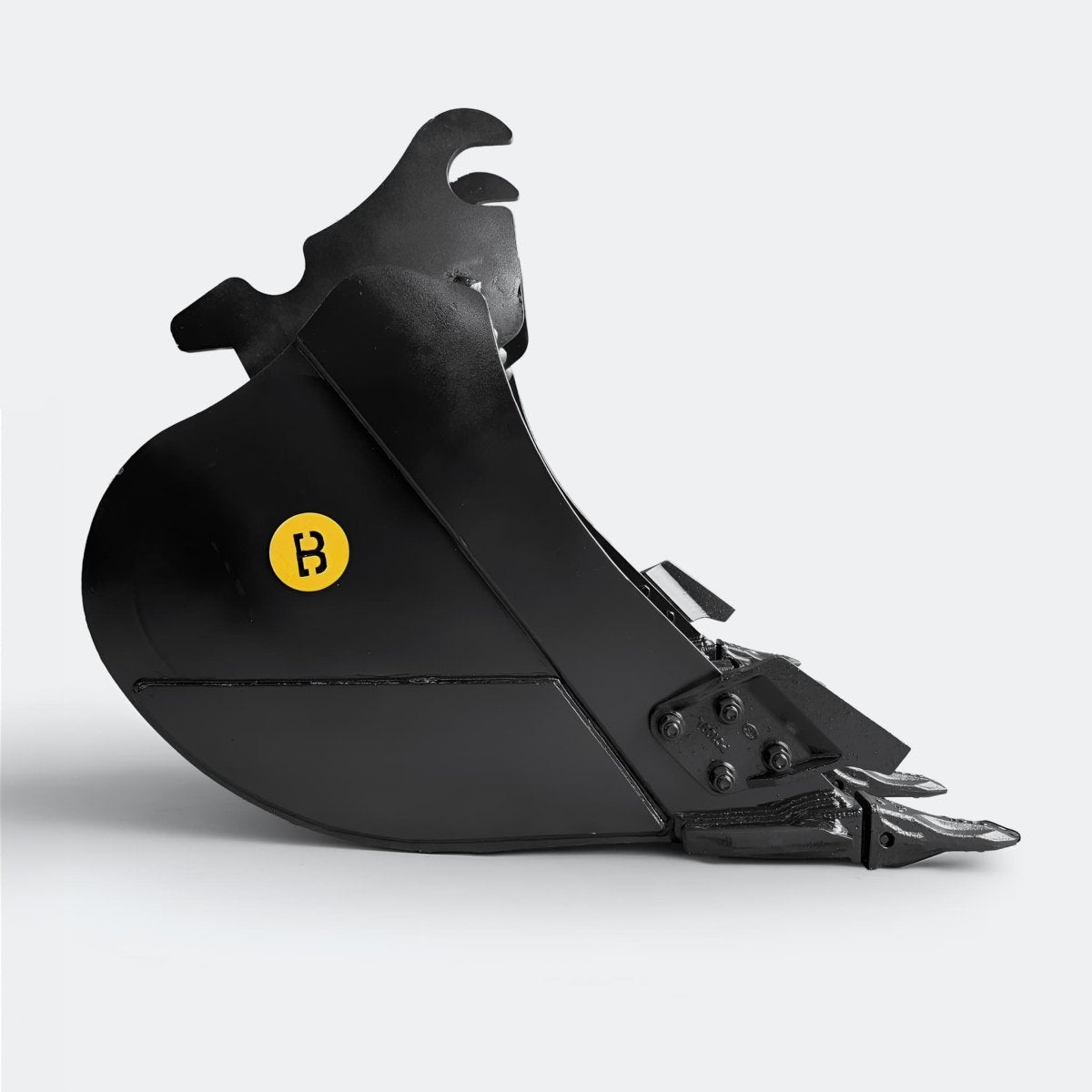

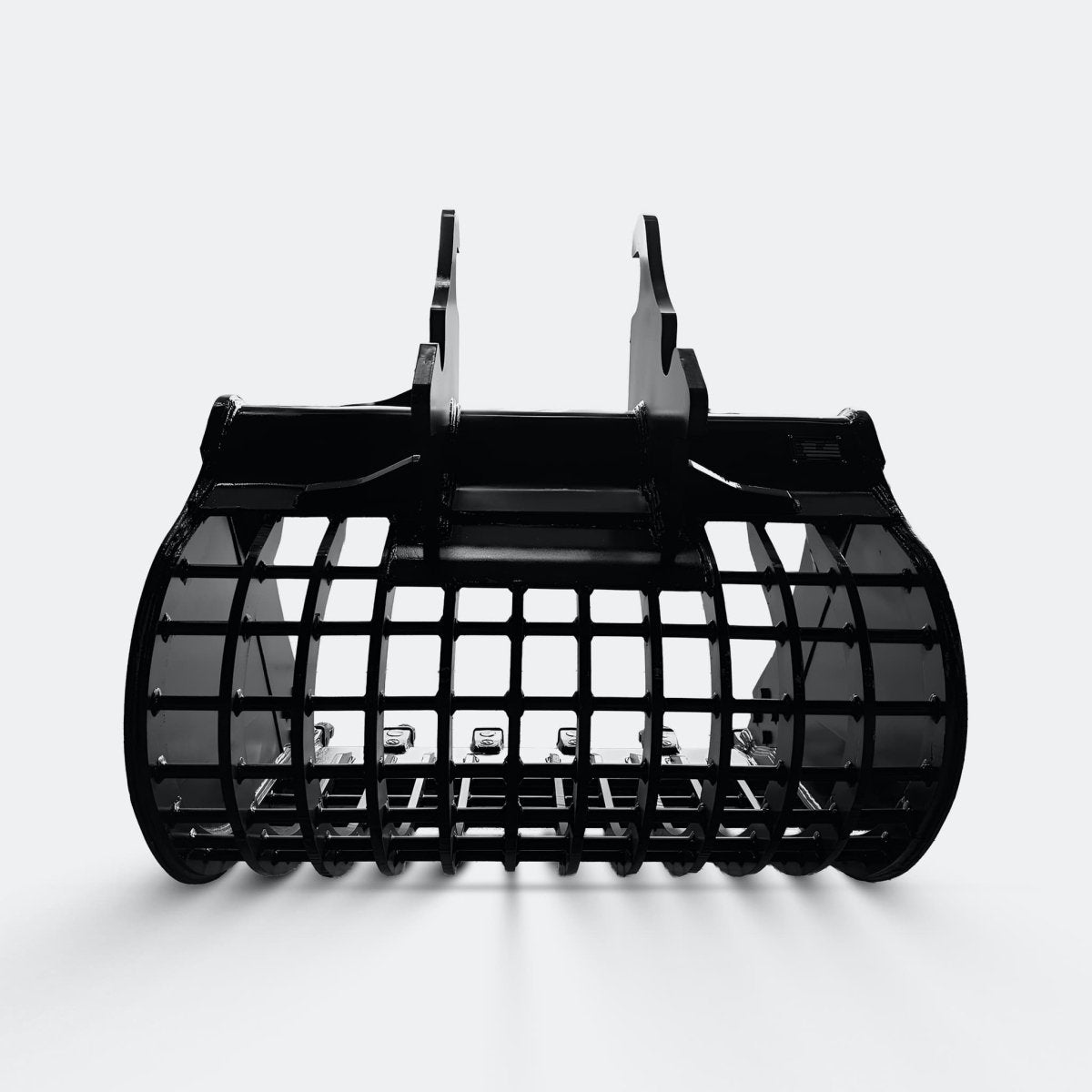

The 48-inch Skeleton Digging Bucket is designed for efficient material separation, trenching, and sifting in rocky or root-filled ground. Built for 11–16 ton class excavators, this attachment reduces retained load while delivering strong penetration in challenging conditions.
Key Specifications
Width: 48"
Weight: 1600 lbs
Construction: T1 and AR400 steel
Wear protection: AR400 side wear plates
Teeth: Replaceable pin-on design
Rib spacing: 3.5"
Applications
Ideal for utility trenching, pipeline work, and land clearing where soil must be screened from rocks, roots, or debris during excavation. The open-frame design allows unwanted material to fall through, reducing cycle time and machine strain.
Durability
Built with high-strength T1 frame steel and AR400-reinforced side plates to resist abrasion and impact. Replaceable teeth and closely spaced ribs ensure long-term performance in abrasive or mixed-ground conditions.
Compatibility
WBM 120 wedge coupler
CWS 120 wedge coupler
WBM 150 wedge coupler
Caterpillar 312 (65 mm pins)
Caterpillar 315 (70 mm pins)
80 mm pins
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
