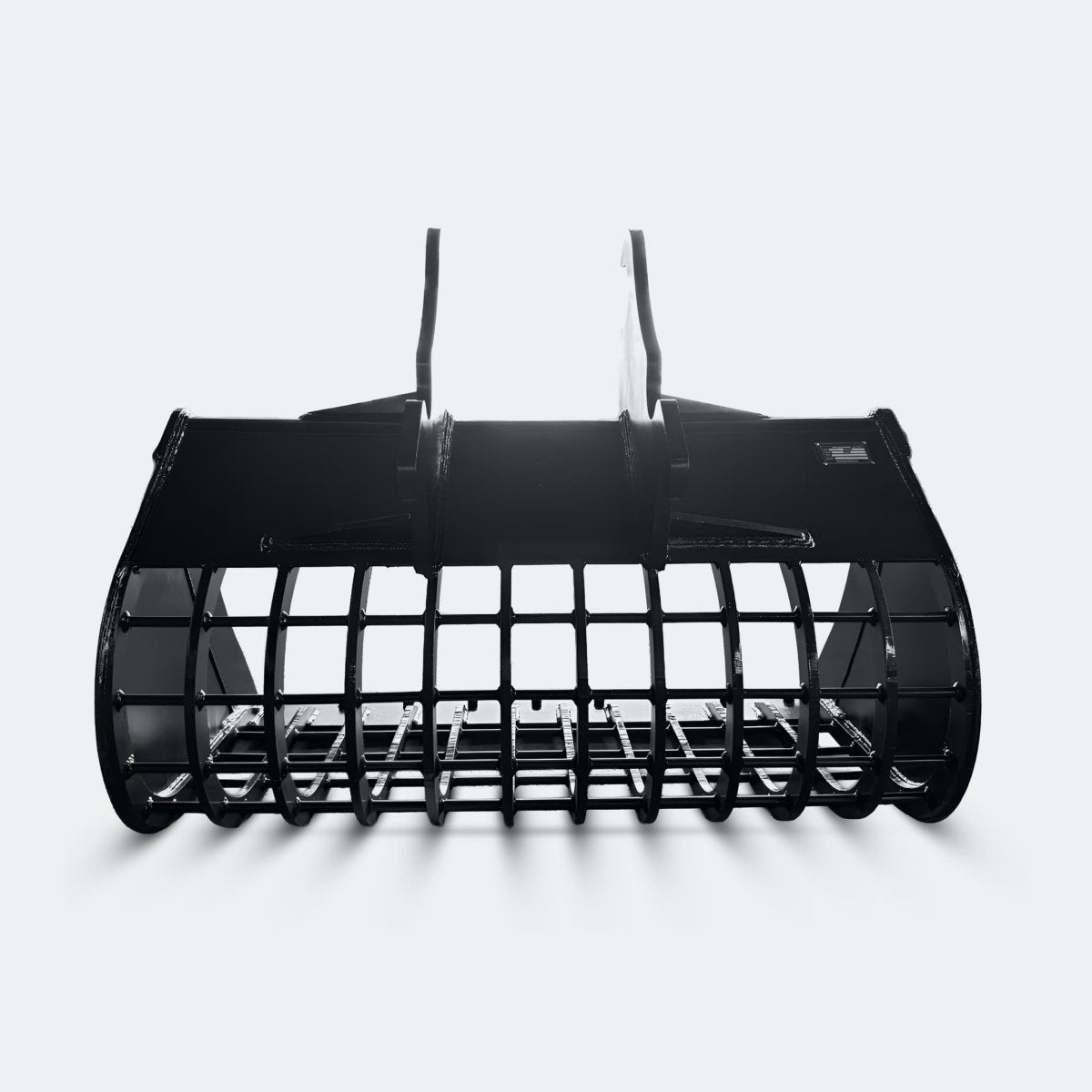

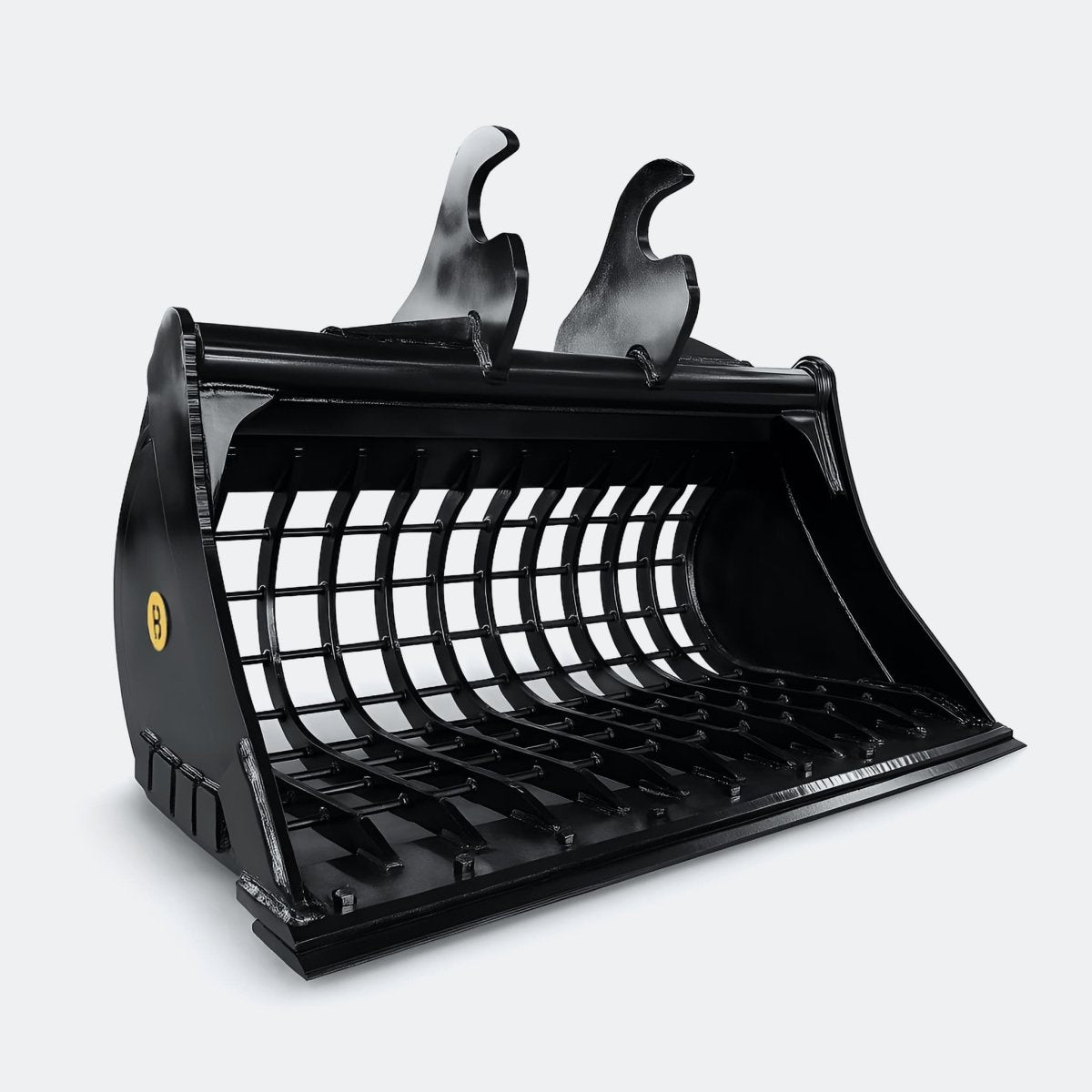

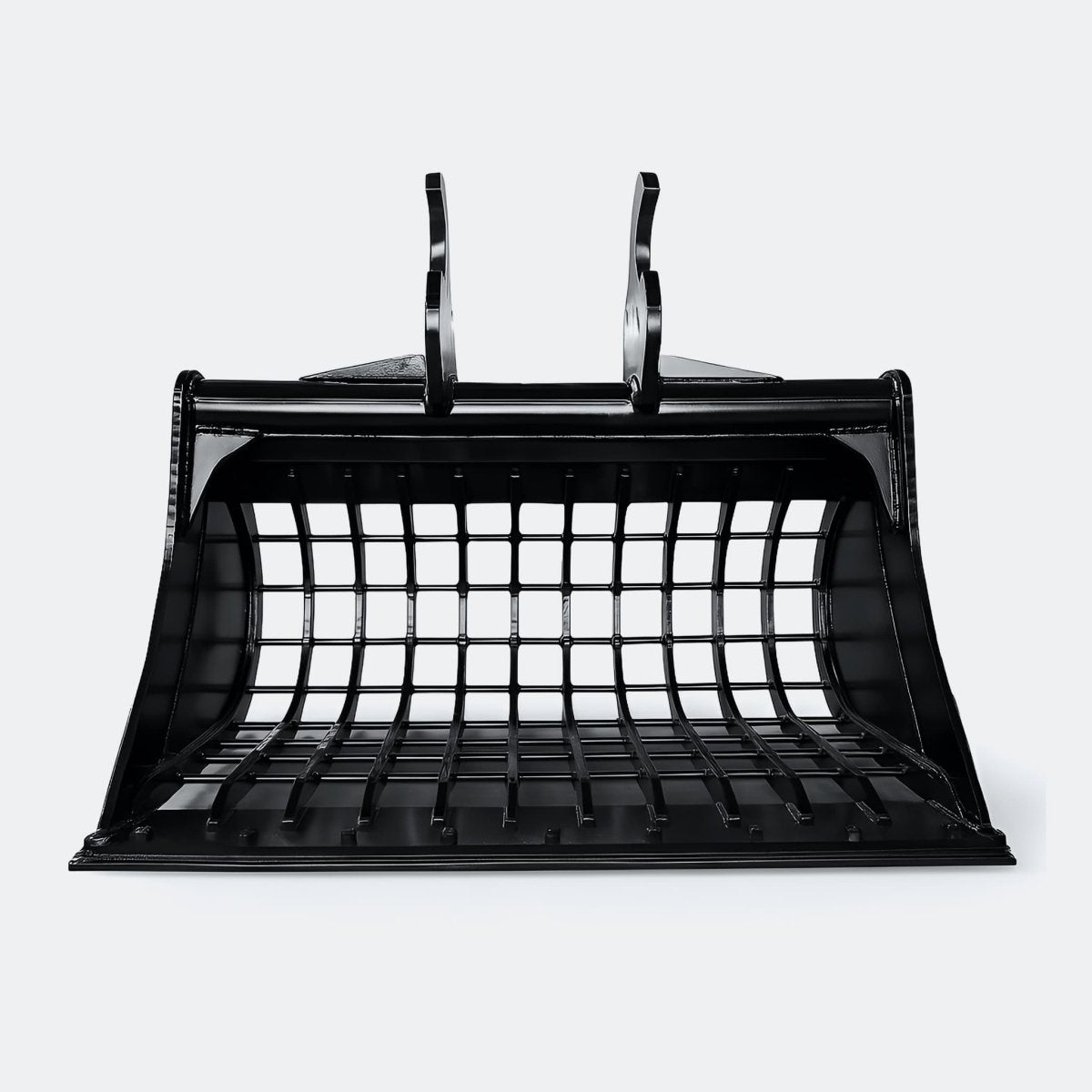

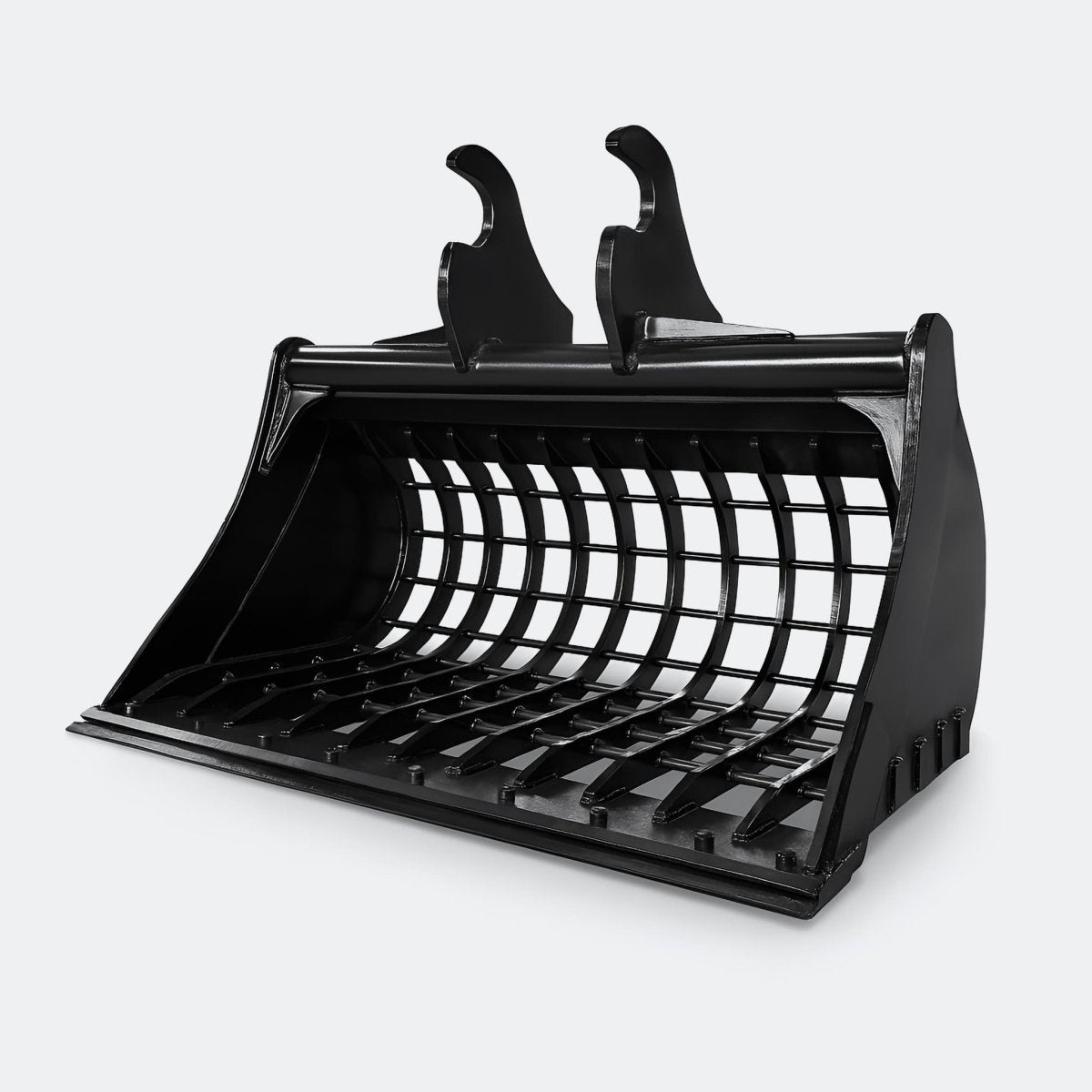

The 54-inch Skeleton Bucket with Bolt-On Cutting Edge is designed for sifting soil from rocks and debris in light to medium excavation tasks. Built for 10–13 ton class excavators, this attachment reduces retained load while offering enhanced edge protection for longer service life.
Key Specifications
Width: 54"
Weight: 600 lbs
Construction: T1 and AR400 steel
Wear protection: AR400 side wear plates
Cutting edge: Bolt-on, reversible AR400 steel
Rib spacing: 4"
Applications
Ideal for landscaping, utility trenching, and site cleanup where material separation is needed. The open-frame design allows fines to fall through during digging, reducing payload and improving cycle efficiency in sandy or rocky soils.
Durability
Built with high-strength T1 frame steel and AR400-reinforced side plates to resist wear. The reversible bolt-on cutting edge doubles usable life and protects the bucket base in abrasive conditions.
Compatibility
WBM 120 wedge
CWS 120 wedge
Caterpillar 312 (65 mm pins)
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
