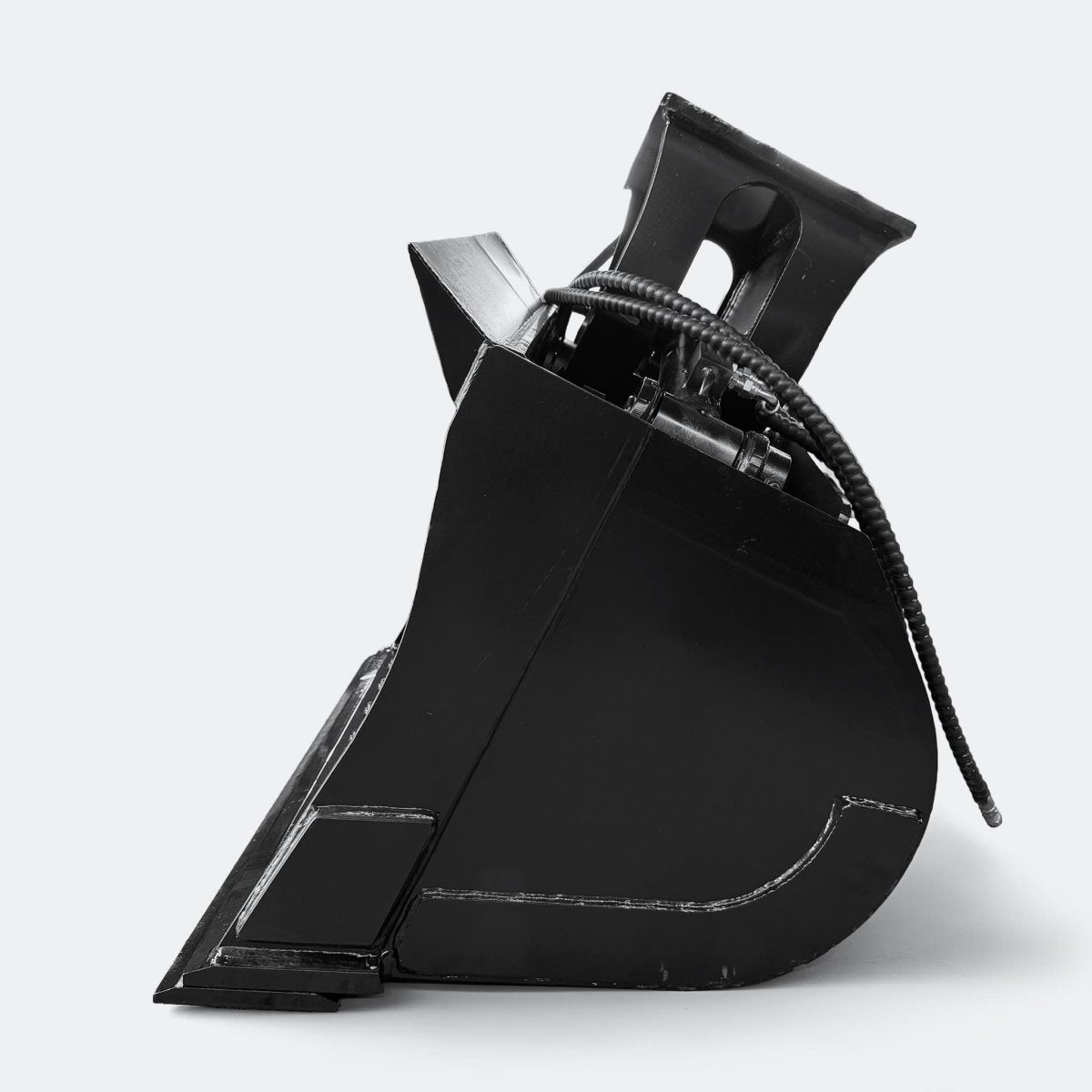

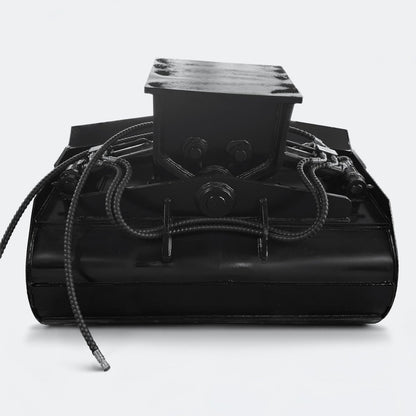

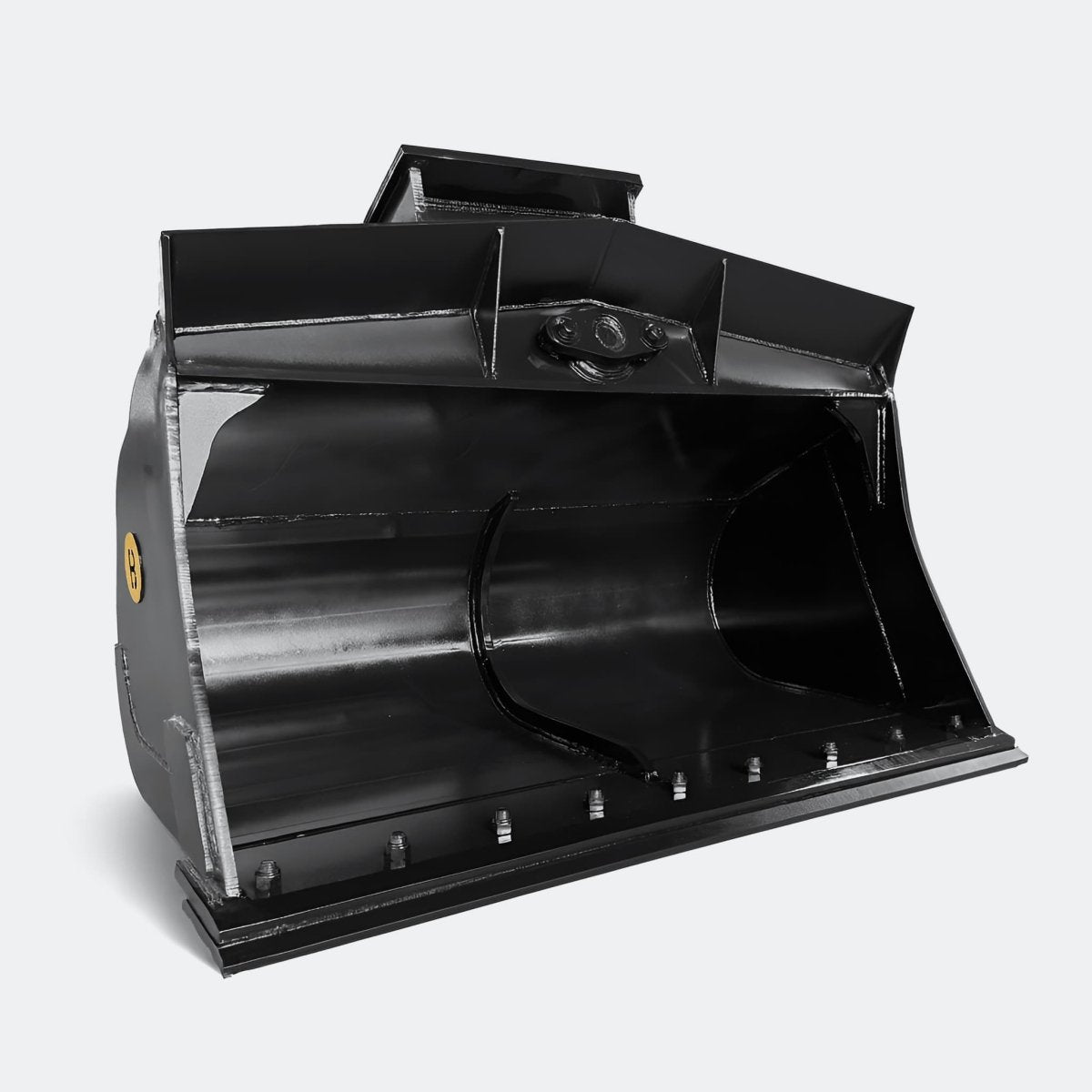

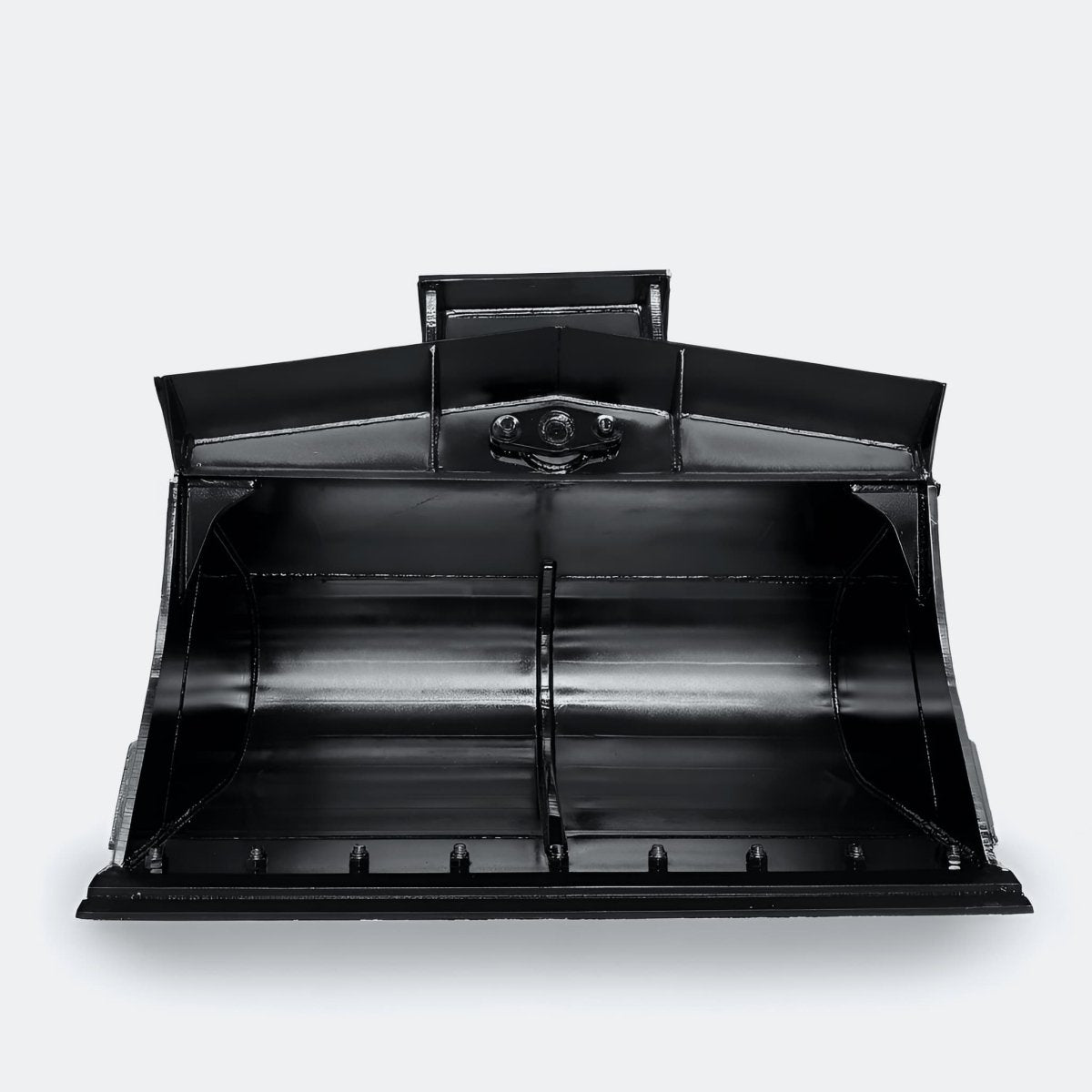

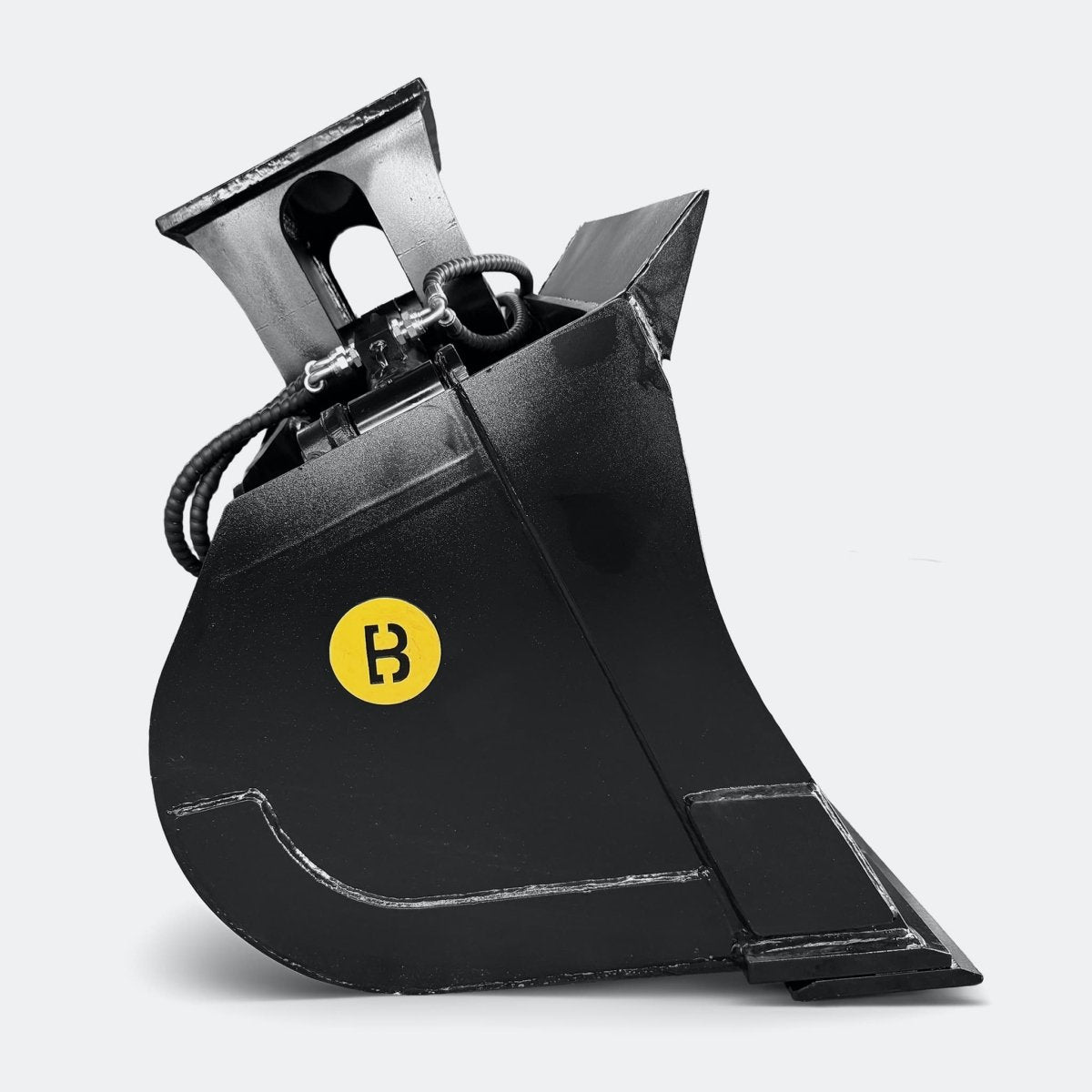

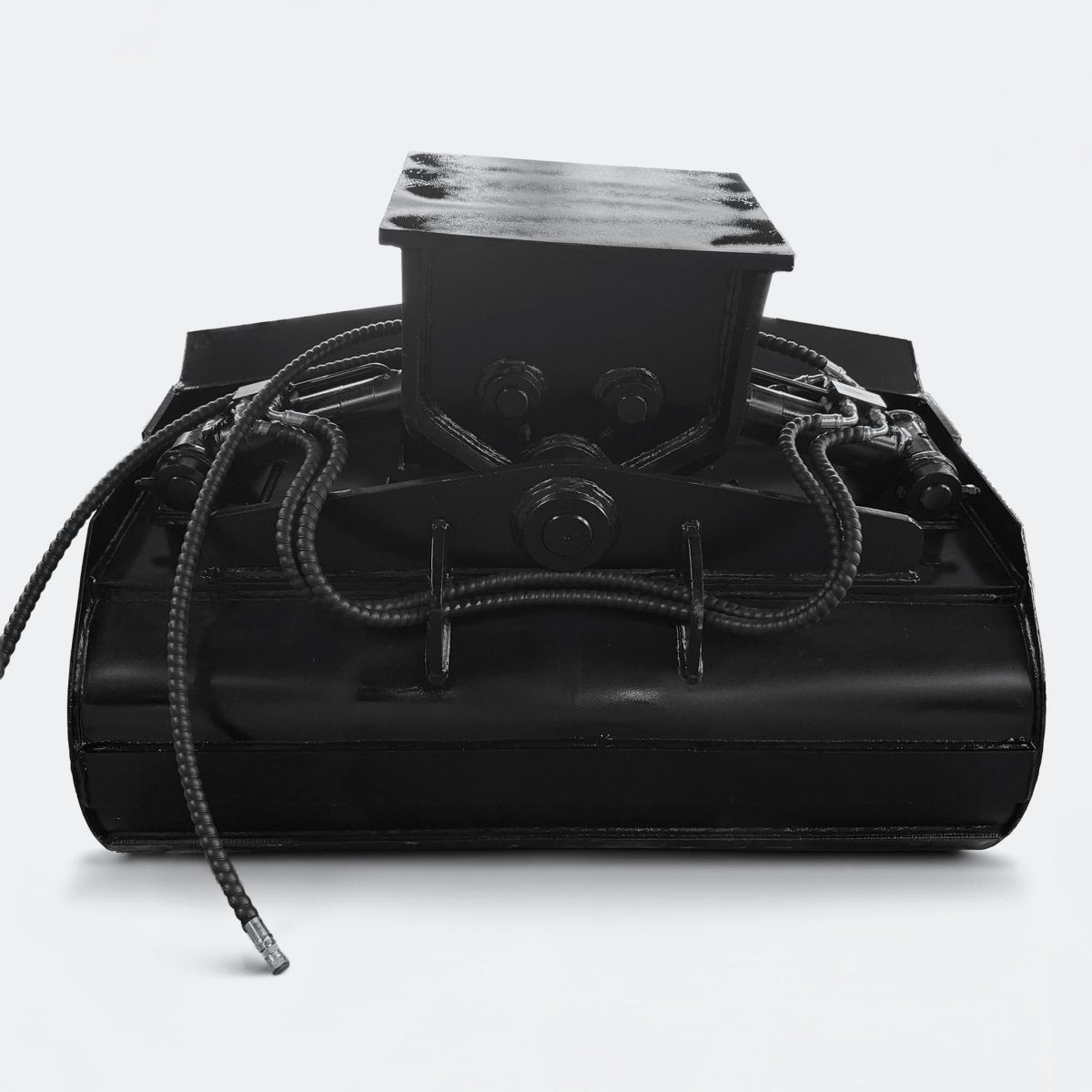

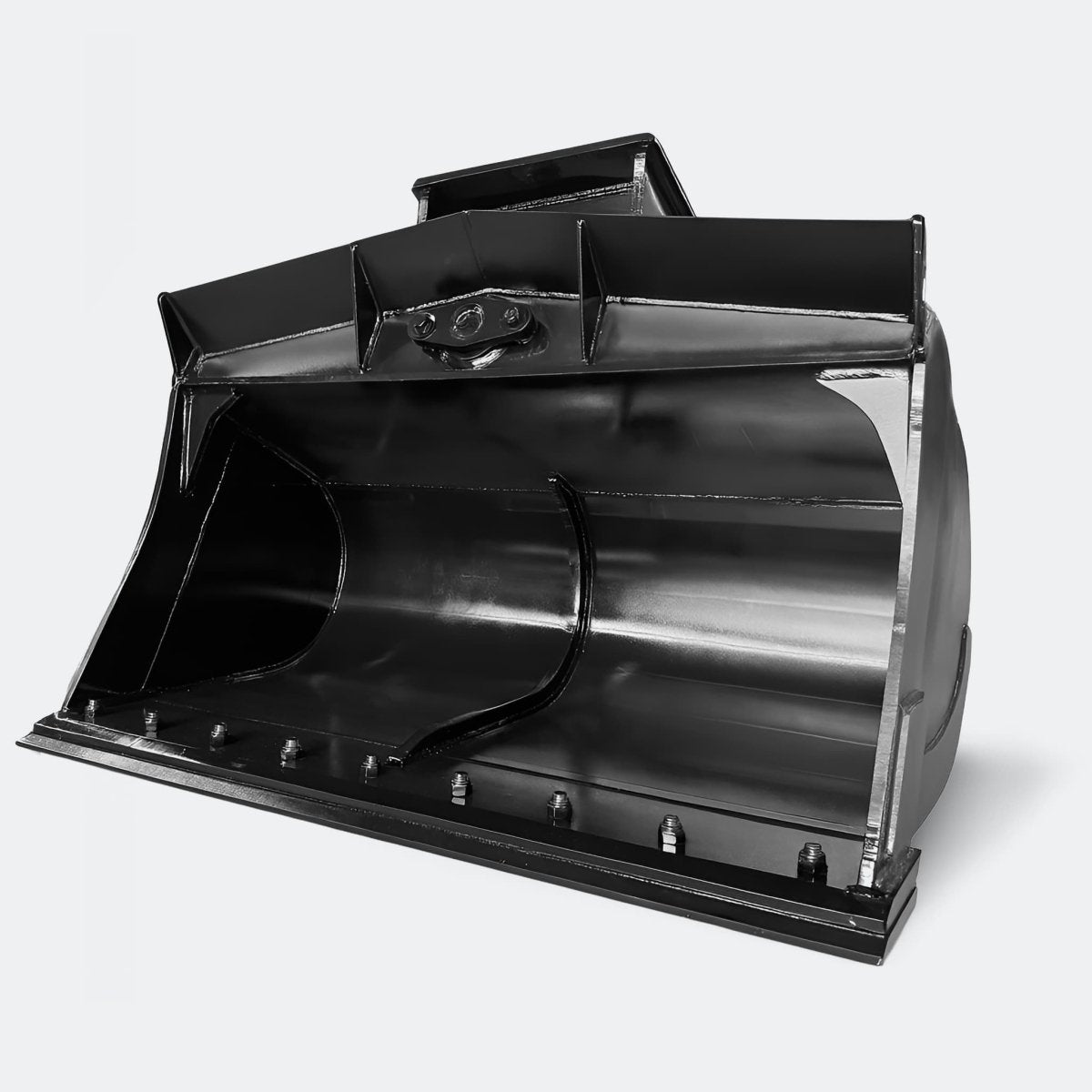

The Tilt / Wrist Bucket is designed for precision grading, trench finishing, and backfilling on medium to large excavation sites. Built for 12–17 ton class excavators, this attachment offers 45° of tilt in both directions for improved control without repositioning.
Key Specifications
Available sizes: 54", 60"
Weight: 54" – 1600 lbs | 60" – 1700 lbs
Construction: T1 and AR400 steel
Wear protection: AR400 bottom and side plates
Cutting edge: Bolt-on, reversible AR400 steel
Tilt range: 45° left / 45° right
Includes: Hydraulic cylinder and hoses
Applications
Ideal for road maintenance, drainage work, and utility installations where angled cuts or precise material placement are required. The hydraulic tilt function allows operators to back-drag, slope, or finish under obstacles with high accuracy.
Durability
Built with reinforced T1 frame steel and AR400 wear plates on high-wear zones. Sealed hydraulic components and greasable pivot points ensure long service life in abrasive or wet conditions.
Compatibility
WBM 150 wedge coupler
Caterpillar 312 (65 mm pins)
Caterpillar 315 (70 mm pins)
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
