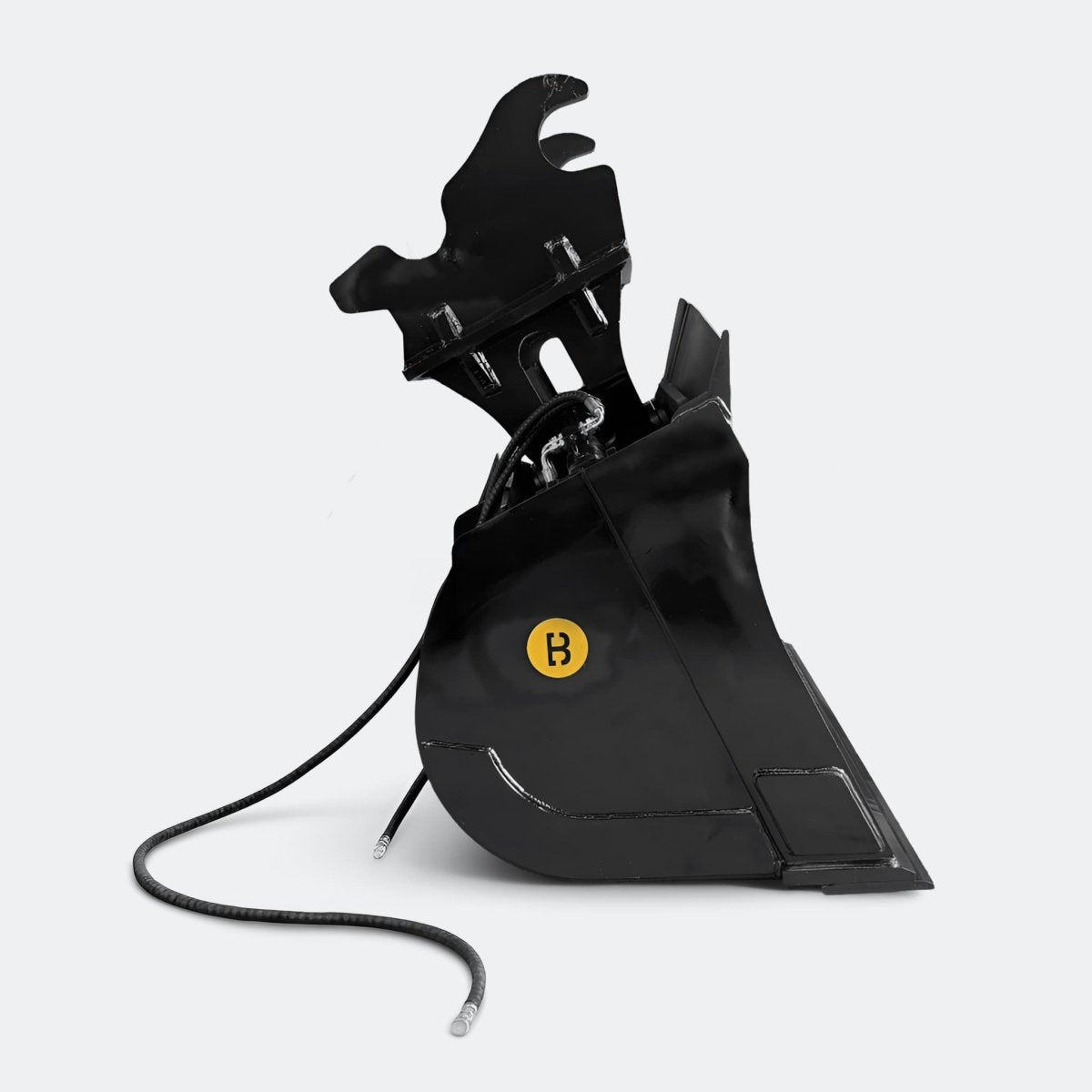

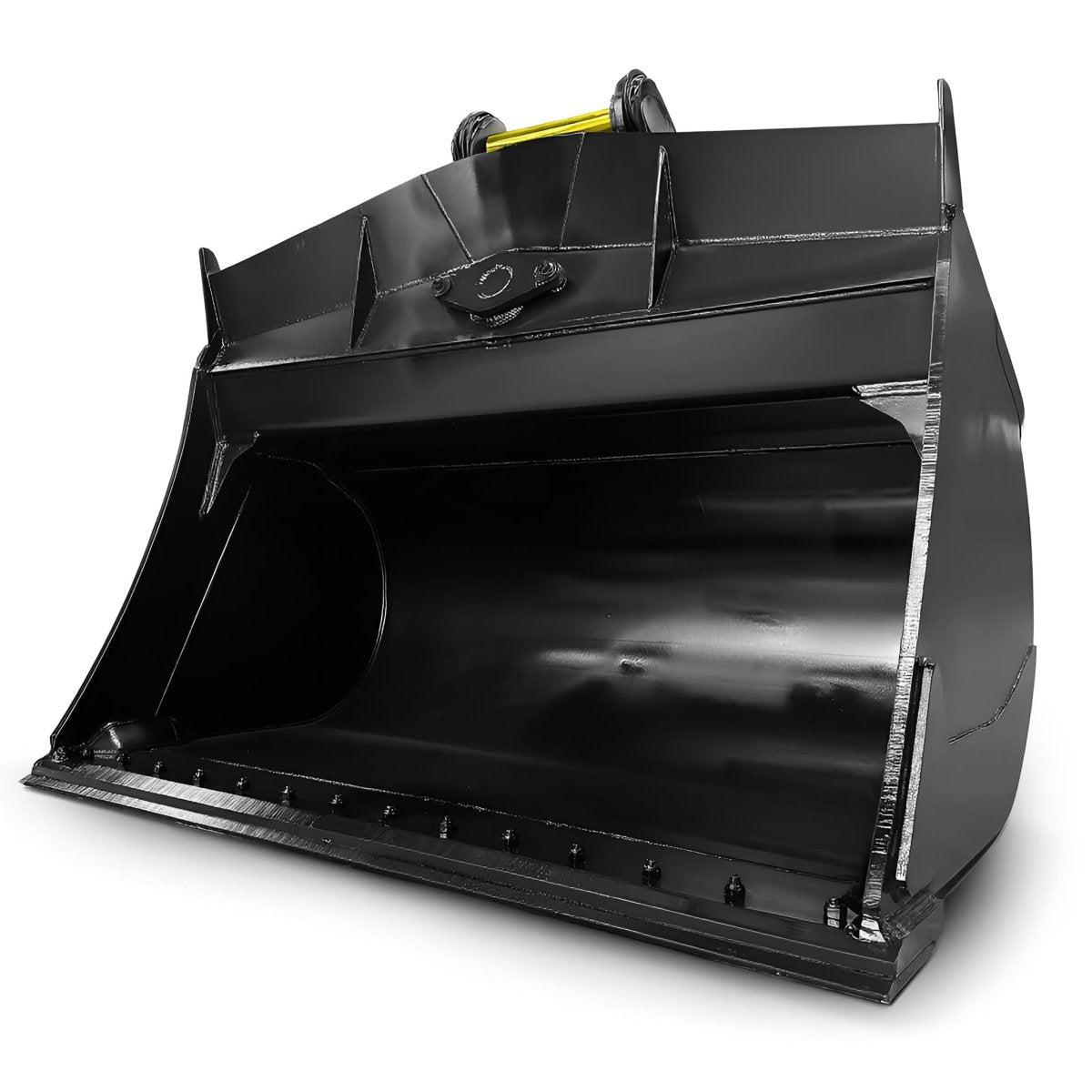

The Tilt / Wrist Bucket is engineered for precision grading, slope work, and backfilling on large-scale excavation projects. Designed for 30–35 ton class excavators, this attachment tilts 45° in both directions for maximum control without repositioning the machine.
Key Specifications
Available sizes: 72", 78"
Bucket weight 4000 LBS 72" - 4400 LBS 78"
Construction: T1 and AR400 steel
Wear protection: AR400 bottom and side plates
Cutting edge: Bolt-on, reversible AR400 steel
Tilt range: 45° left / 45° right
Includes: Hydraulic cylinder and hoses
Applications
Ideal for road building, drainage ditches, and final grading where angled surfaces or tight access are required. The hydraulic tilt function allows operators to back-drag, side-slope, or finish under structures with minimal effort and high accuracy.
Durability
Built with reinforced T1 frame steel and AR400 wear plates on high-impact zones. Sealed hydraulic components and greasable pivot points ensure long-term reliability in abrasive or wet conditions.
Compatibility
WBM 300 wedge coupler
Caterpillar 336 (90/100 mm pins)
100 mm pins
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
