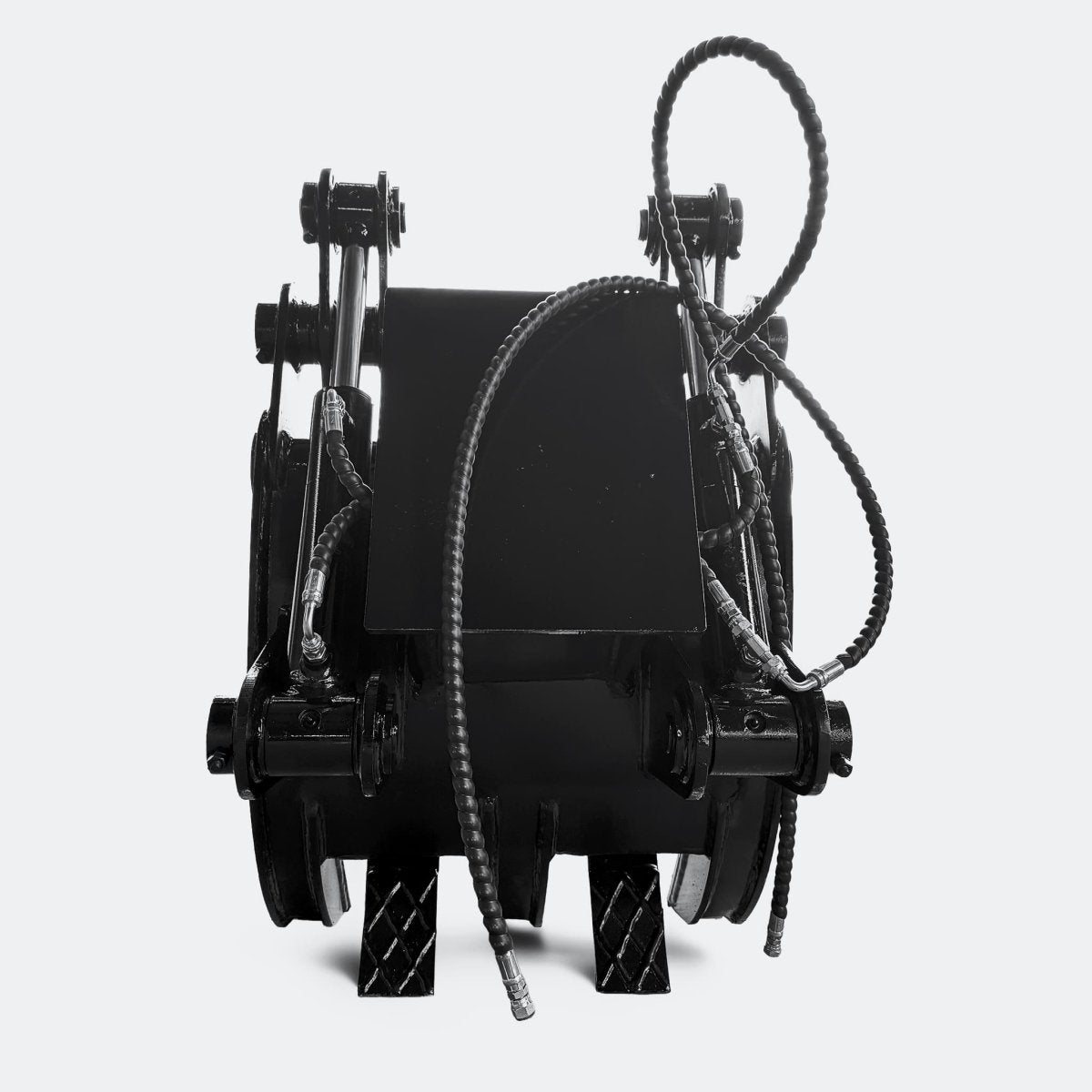

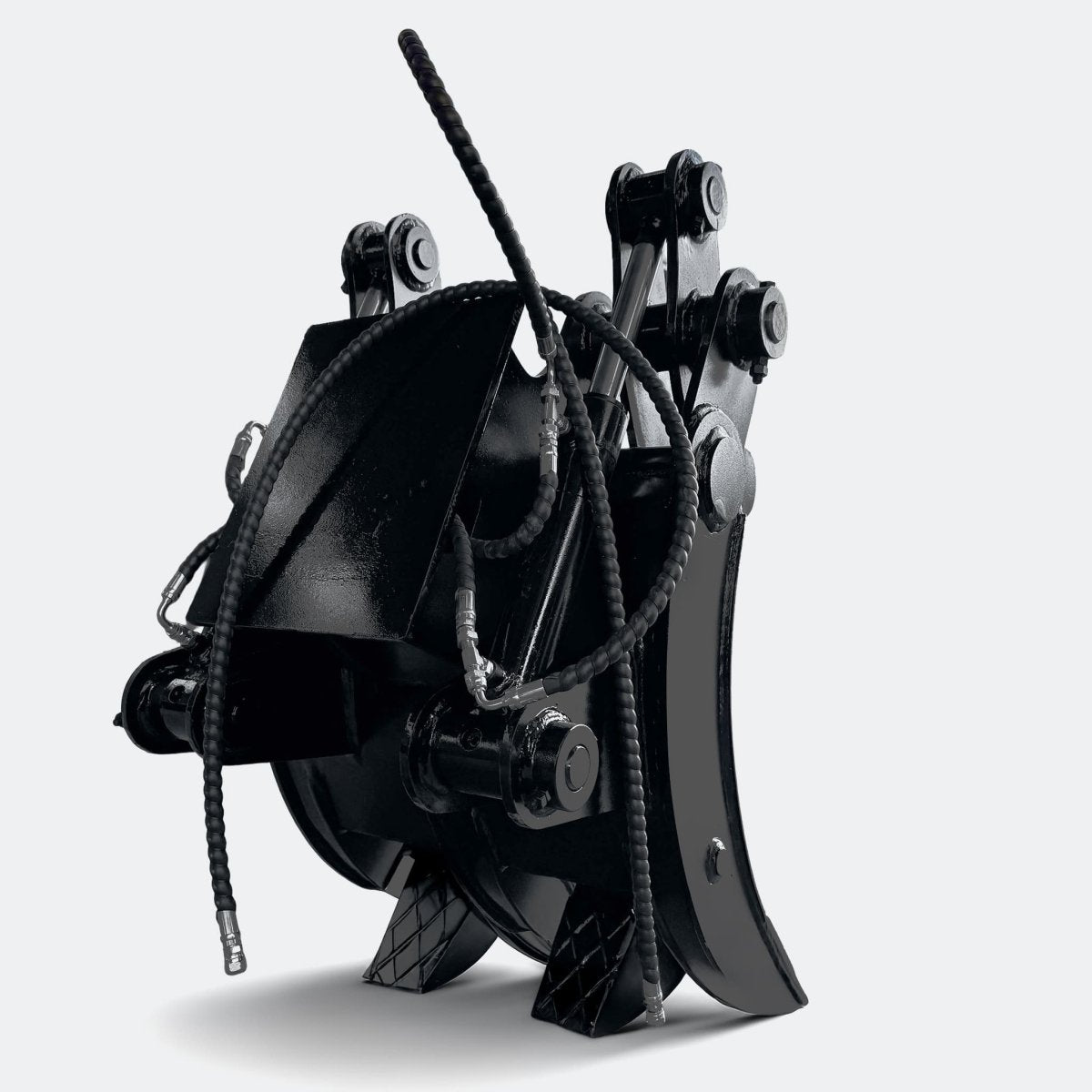

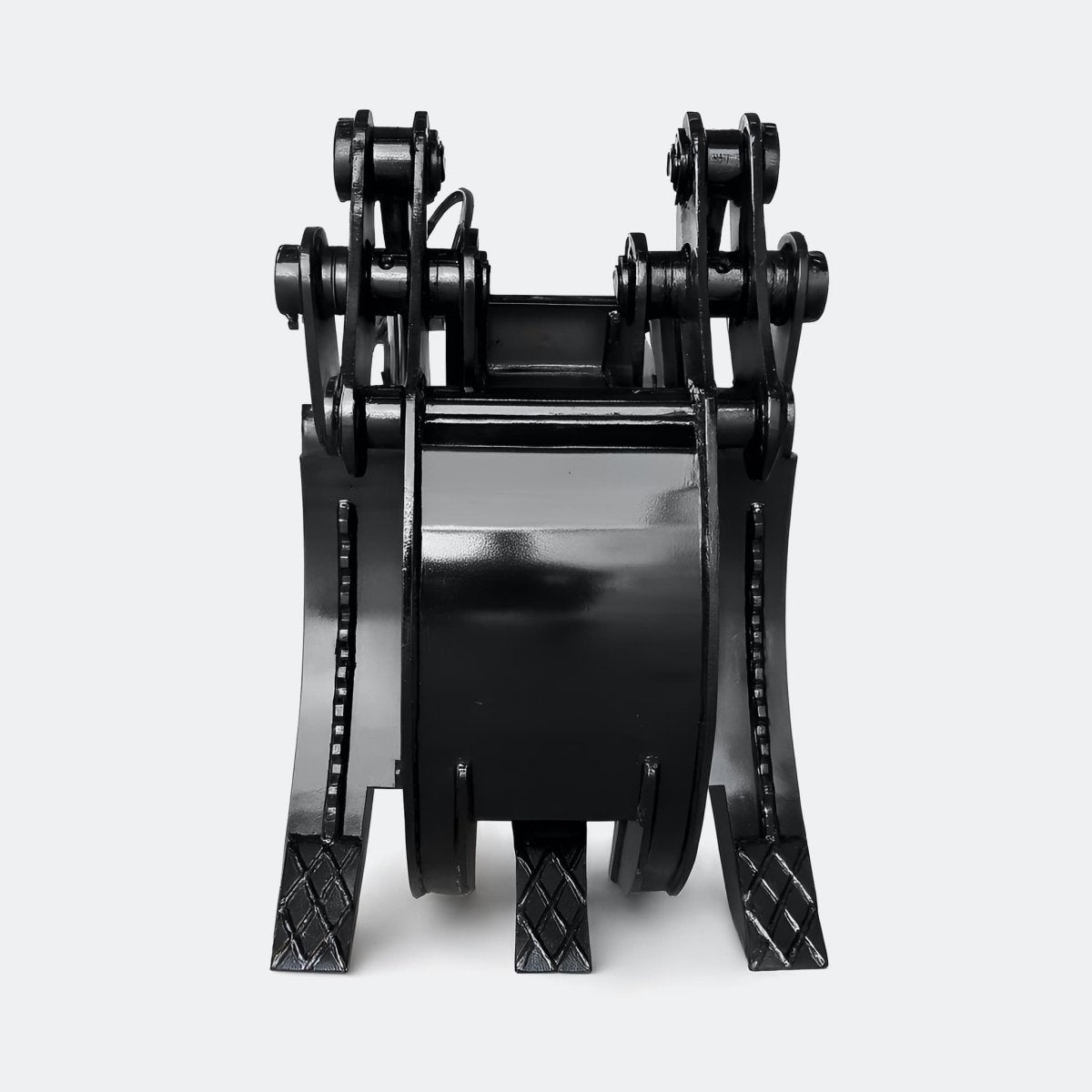

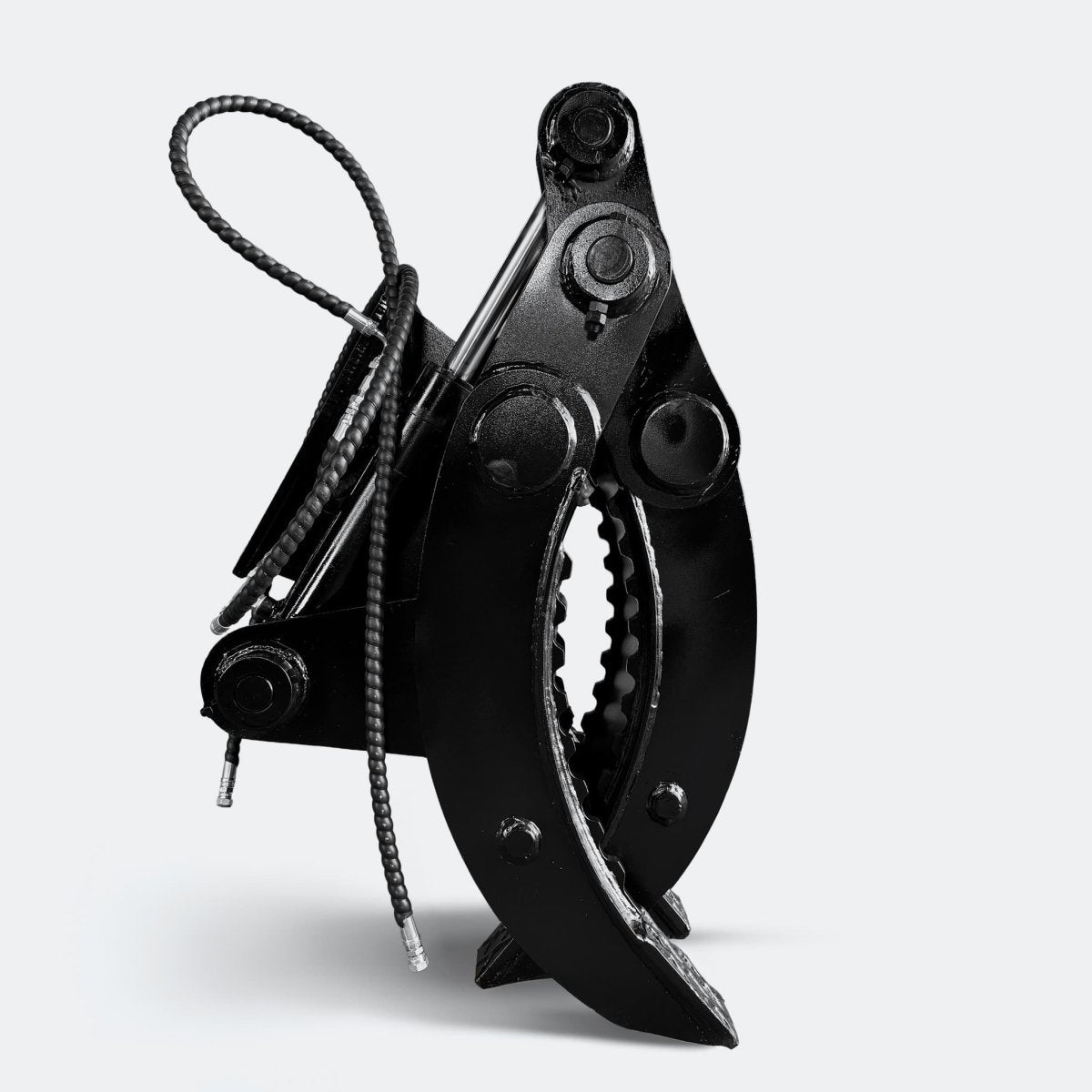

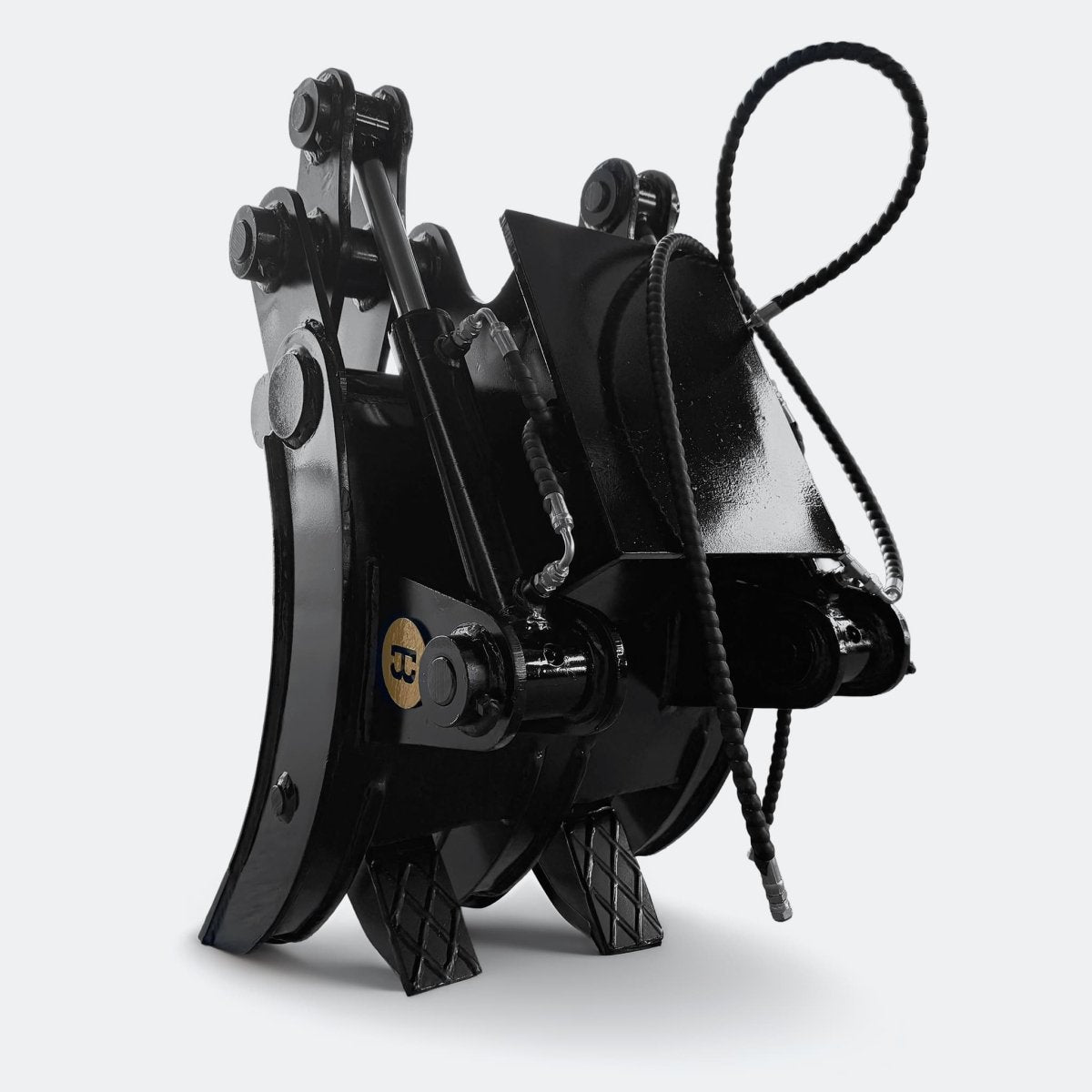

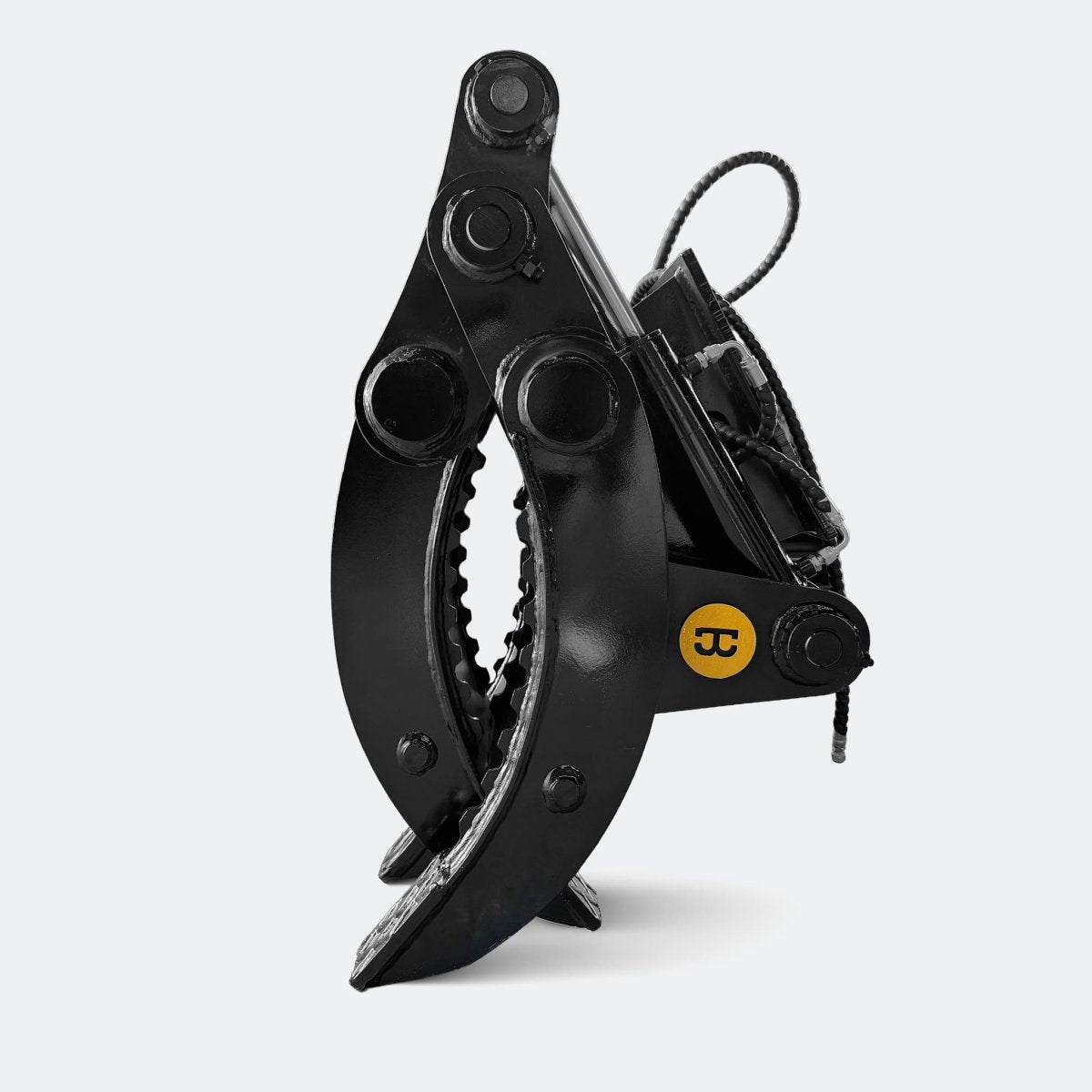

Non Rotating Hydraulic Log Grapple, 4 ton – 8 ton Excavator

The Non-Rotating Hydraulic Log Grapple is engineered for efficient log handling, brush clearing, and debris removal on medium-duty job sites. Designed for 4–8 ton class excavators, this attachment features a dual-row tooth design and powerful clamping force for secure grip without rotation.

Key Specifications

• Weight: 600 lbs
• Maximum opening width: 37"
• Construction: T1 and AR400 steel
• Teeth configuration: 3-tooth front / 2-tooth rear (dual-row)
• Teeth: Replaceable pin-on design
• Includes: Hydraulic cylinder and hoses

Applications

Ideal for firewood processing, land clearing, tree removal, and storm cleanup where full rotation is not required. The fixed-body design delivers maximum strength and simplicity for high-cycle operations in rugged conditions.

Durability

Built with high-strength T1 frame steel and AR400-reinforced wear zones to resist impact and abrasion. Replaceable teeth and sealed hydraulic components ensure long service life in demanding environments.

Compatibility

For 4 ton models:

• John Deere 35–40 wedge (WBM 35)
• Sany 35–40 wedge (WBM 35)
• Hitachi 35–40 wedge (WBM 35)
• Kubota 35–40 wedge
• Caterpillar 303–304 pins
• Yanmar 30–40 pins
• Bobcat X-Change

For 5–6 ton models:

• John Deere 50–60 wedge (WBM 50)
• Hitachi 50–60 wedge (WBM 50)
• Sany 50–60 wedge (WBM 50)
• Kubota 50–60 wedge
• Yanmar 50–60 pins
• Caterpillar 305–306 pins
• Komatsu 50–60 pins
• Bobcat X-Change

For 7–8 ton models:

• John Deere 70–100 wedge (WBM 80)
• Hitachi 70–100 wedge (WBM 80)
• Sany 70–100 wedge (WBM 80)
• Kubota KX080 wedge
• Yanmar 70–100 pins
• Caterpillar 307–308 pins
