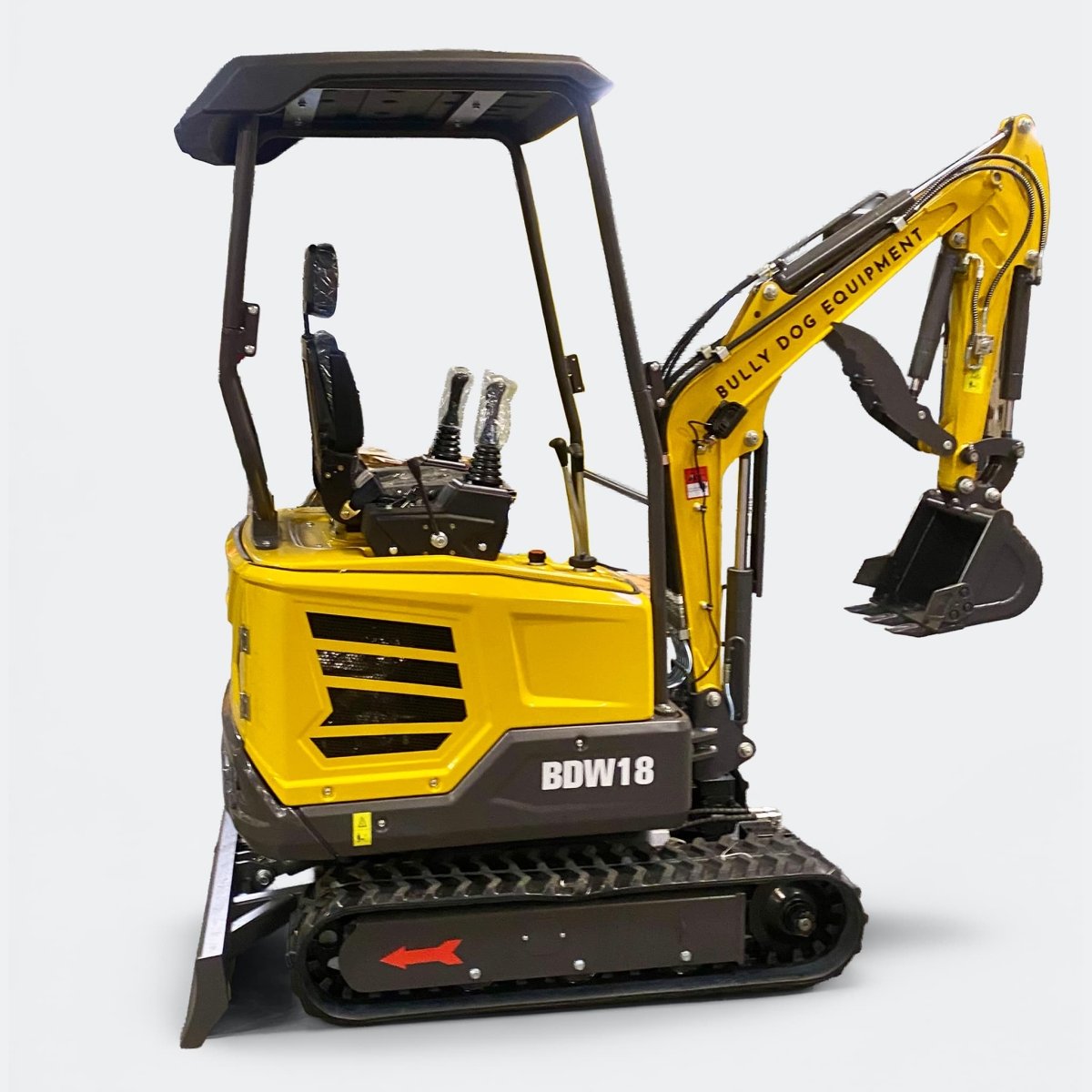

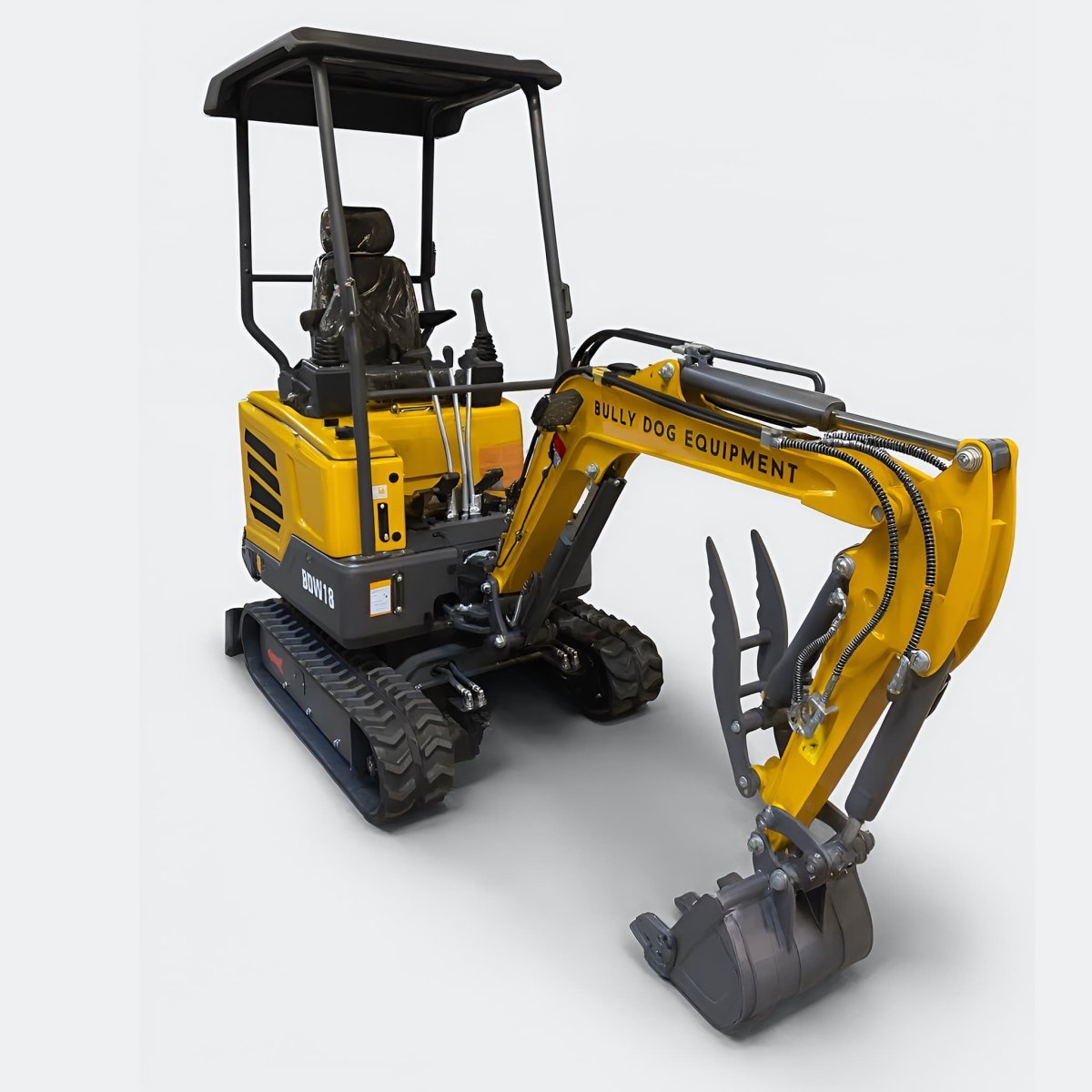

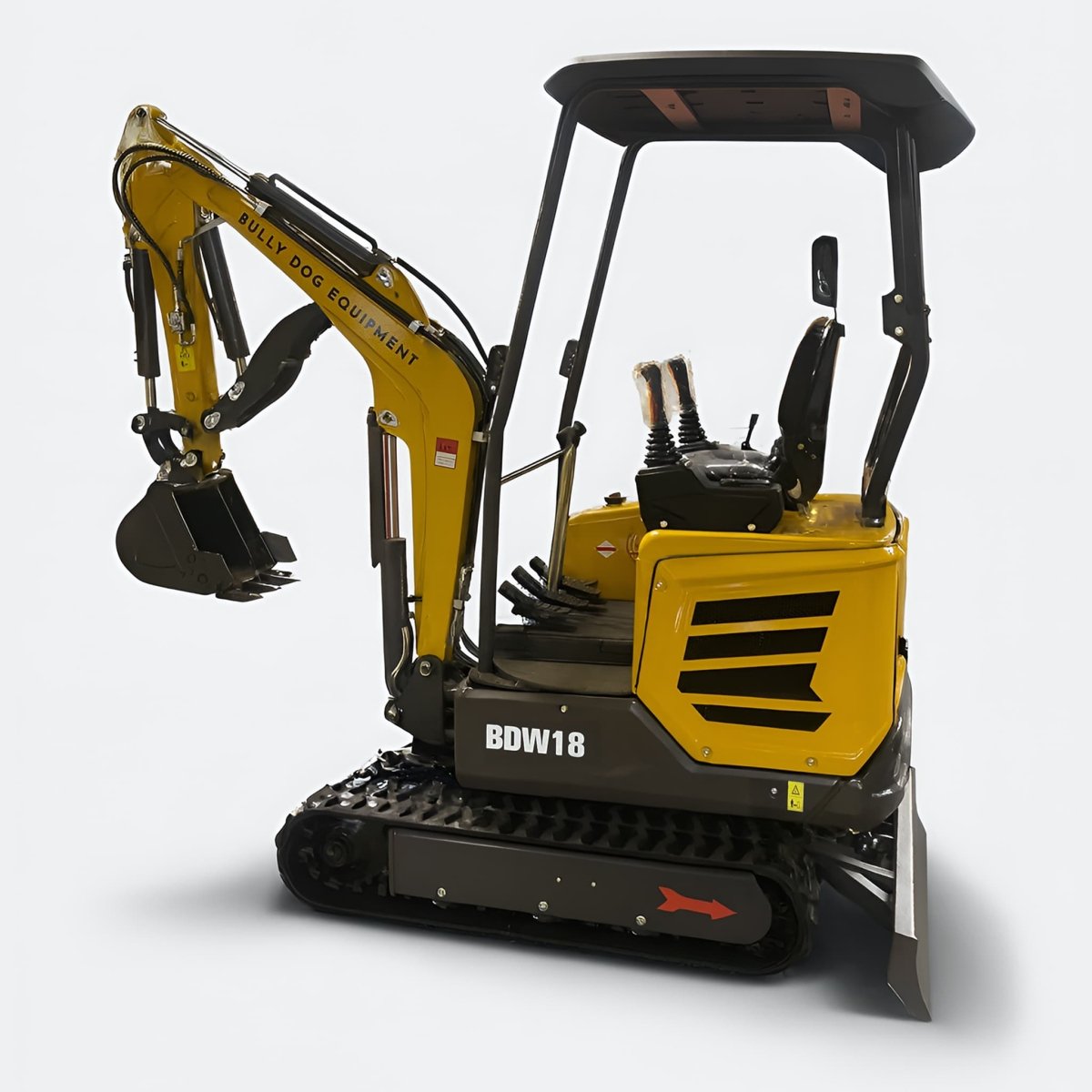

The 1.8-ton roof excavator is engineered for easy transport and high maneuverability in space-constrained environments. Powered by a Kubota D722 EPA Tier 4 diesel engine and equipped with hydraulic thumb and swing boom, this compact machine delivers reliable performance for urban landscaping, utility work, and rooftop-accessible projects.
Key Specifications
Operating weight: 1800 kg

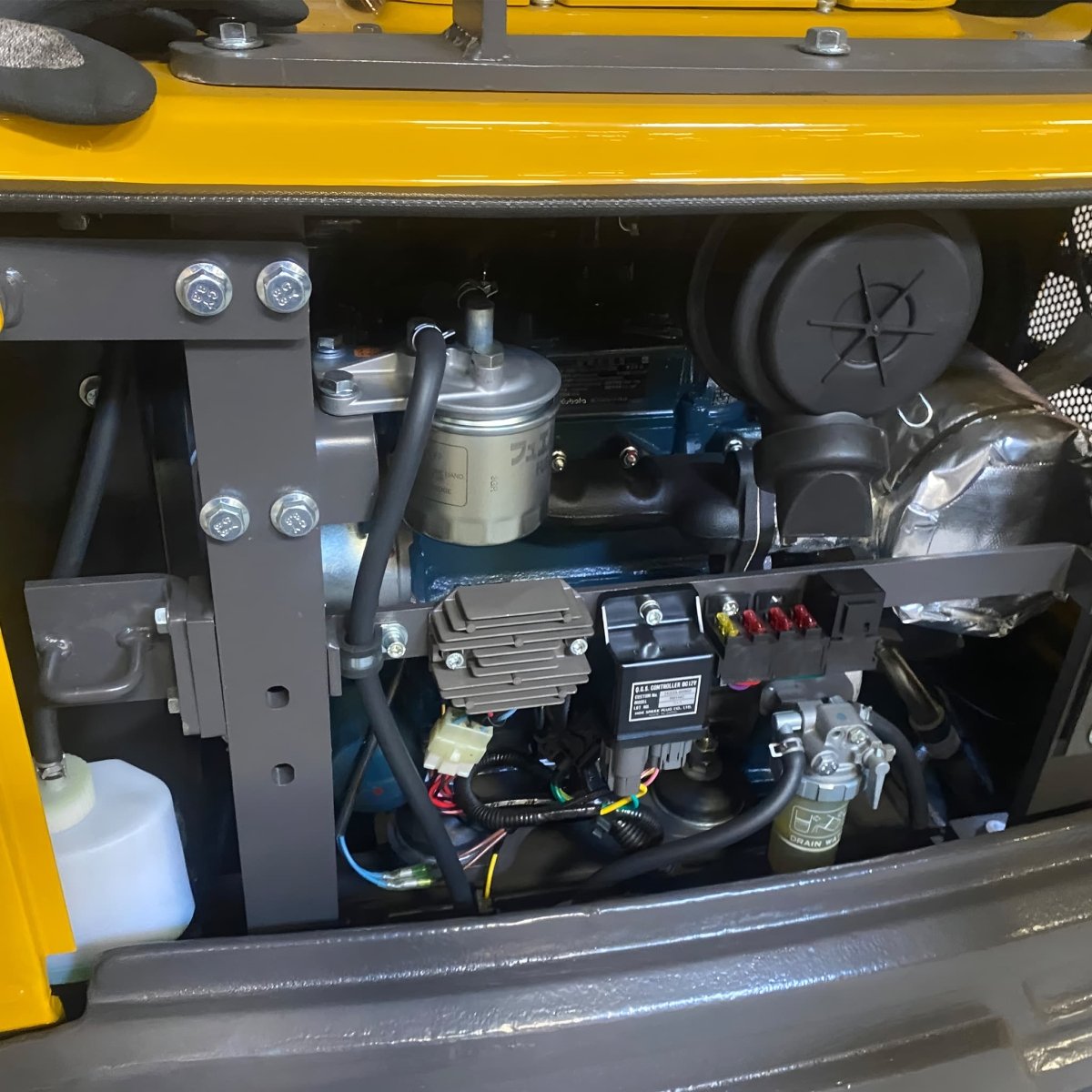

Engine: Kubota D722 3-cylinder diesel, EPA Tier 4
Rated power: 10.2 kW
Bucket capacity: 0.03 m³
Bucket width: 430 mm
Track length: 1450 mm
Track width: 230 mm
Ground clearance: 402 mm
Performance
Bucket breakout force: 13.8 kN
Digging height: 3010 mm
Max unloading height: 2285 mm
Max digging depth: 2050 mm (80")
Maximum vertical boom digging depth: 2010 mm
Max digging distance: 3260 mm
Walking speed: 2 km/h
Lifting height of dozer blade: 290 mm
Features

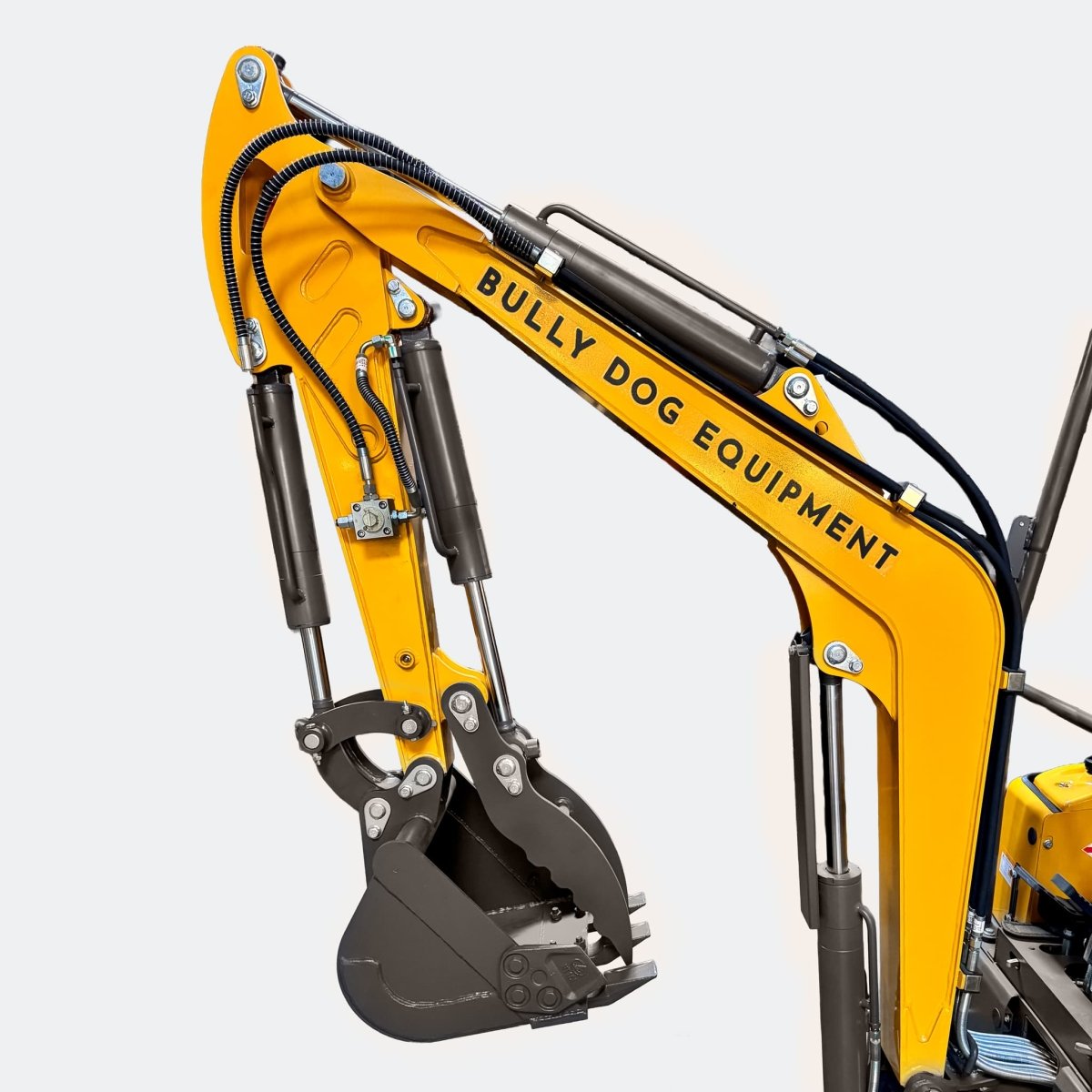

Swing boom for improved reach and obstacle navigation in tight spaces

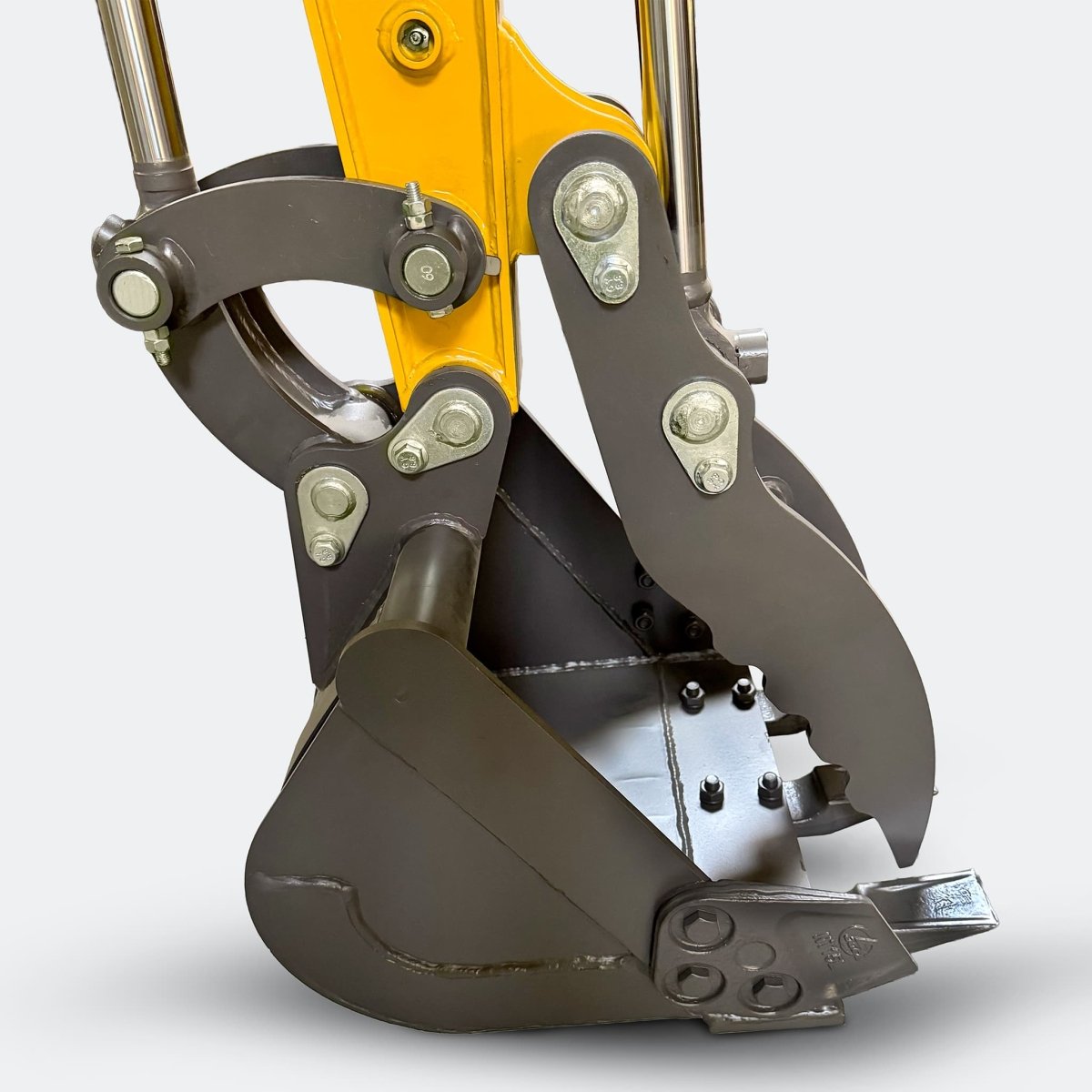

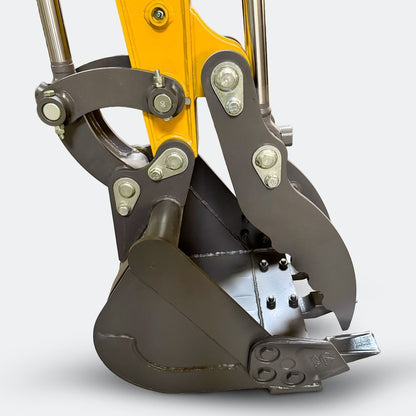

Hydraulic thumb for secure handling of logs, pipe, and debris
Brake valves integrated into final drives to prevent runaway on slopes
NORTHY HEAVY INDUSTRIES multi-way control valve for smooth hydraulic response
TIANJI hydraulic gear pump, LIKE walking and rotary motors for durable performance
Compact design ideal for trailer loading and jobs requiring frequent transport
Integrated dozer blade for grading, levelling, and backfilling
Applications
Ideal landscaping, urban renovation, narrow-lot excavation, and jobs where transportability and small footprint are essential. Its light weight and compact dimensions make it easy to load and ideal for confined job sites.
Durability
Built with reinforced steel components and a sealed hydraulic system for long-term reliability. Integrated brake valves and high-quality hydraulic parts ensure safe, consistent operation on uneven terrain and during transport.
Compatibility
Fits our standard 25mm Chinese mini excavator attachments including buckets, augers, breakers, grapples, and brush rakes via universal coupler interface.
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
