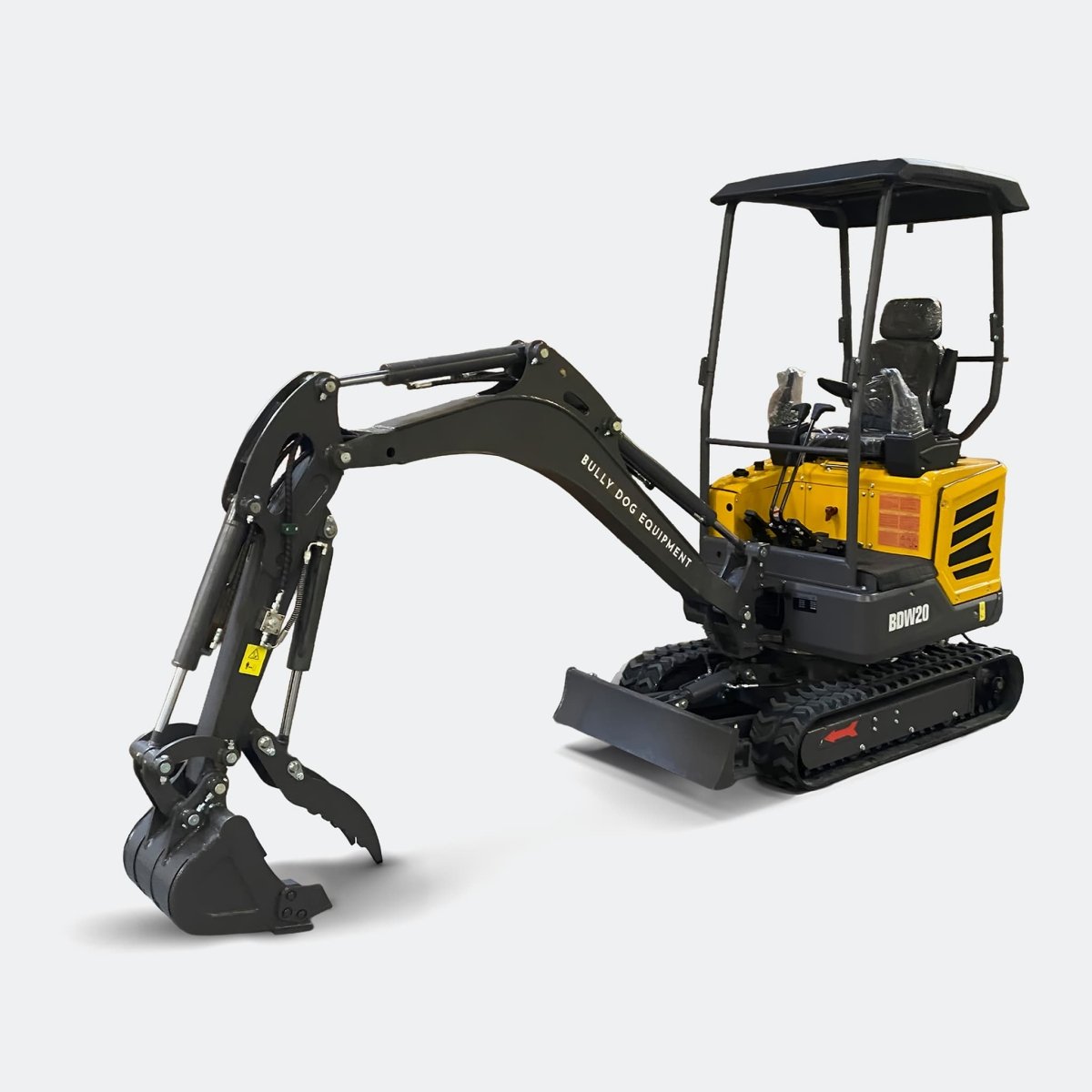

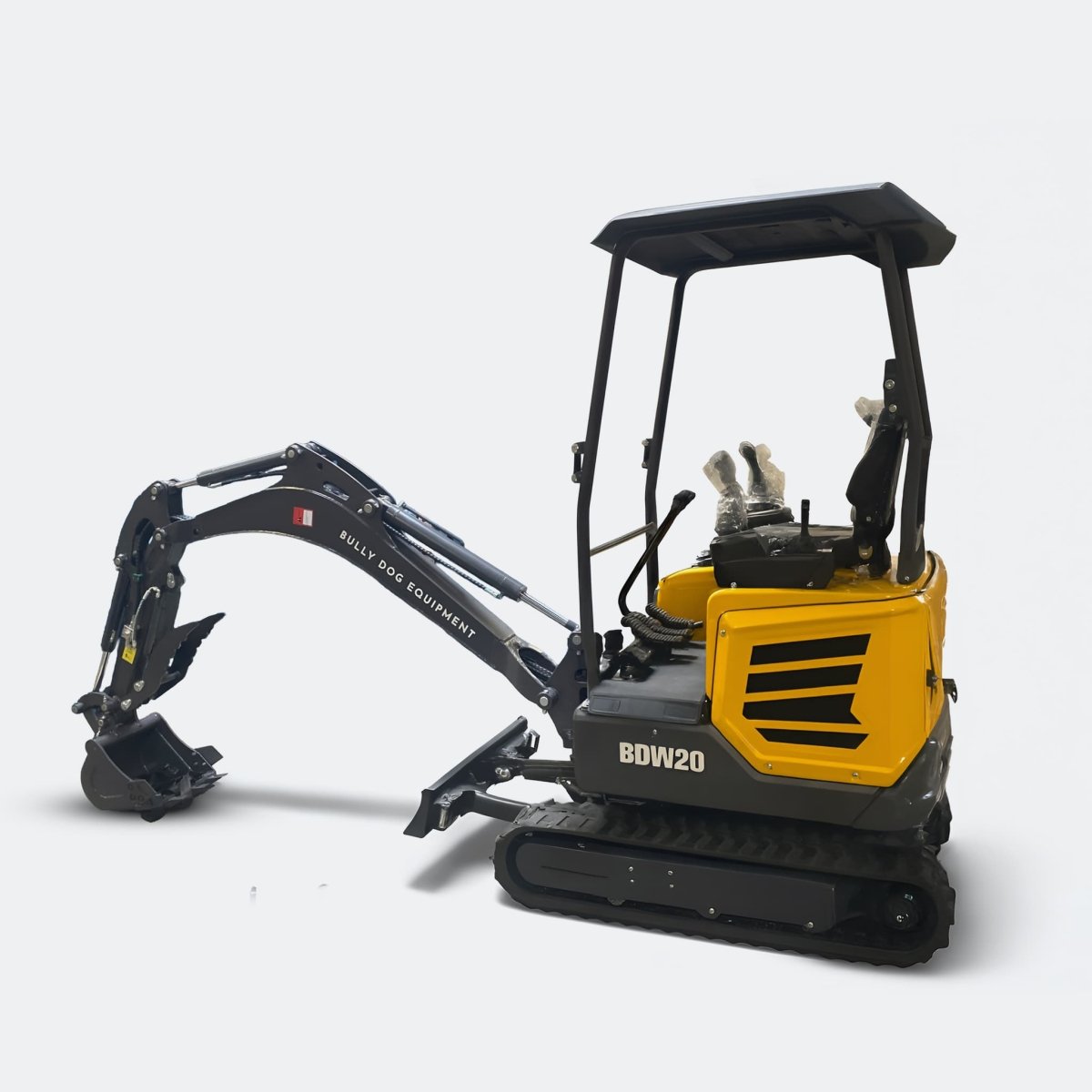

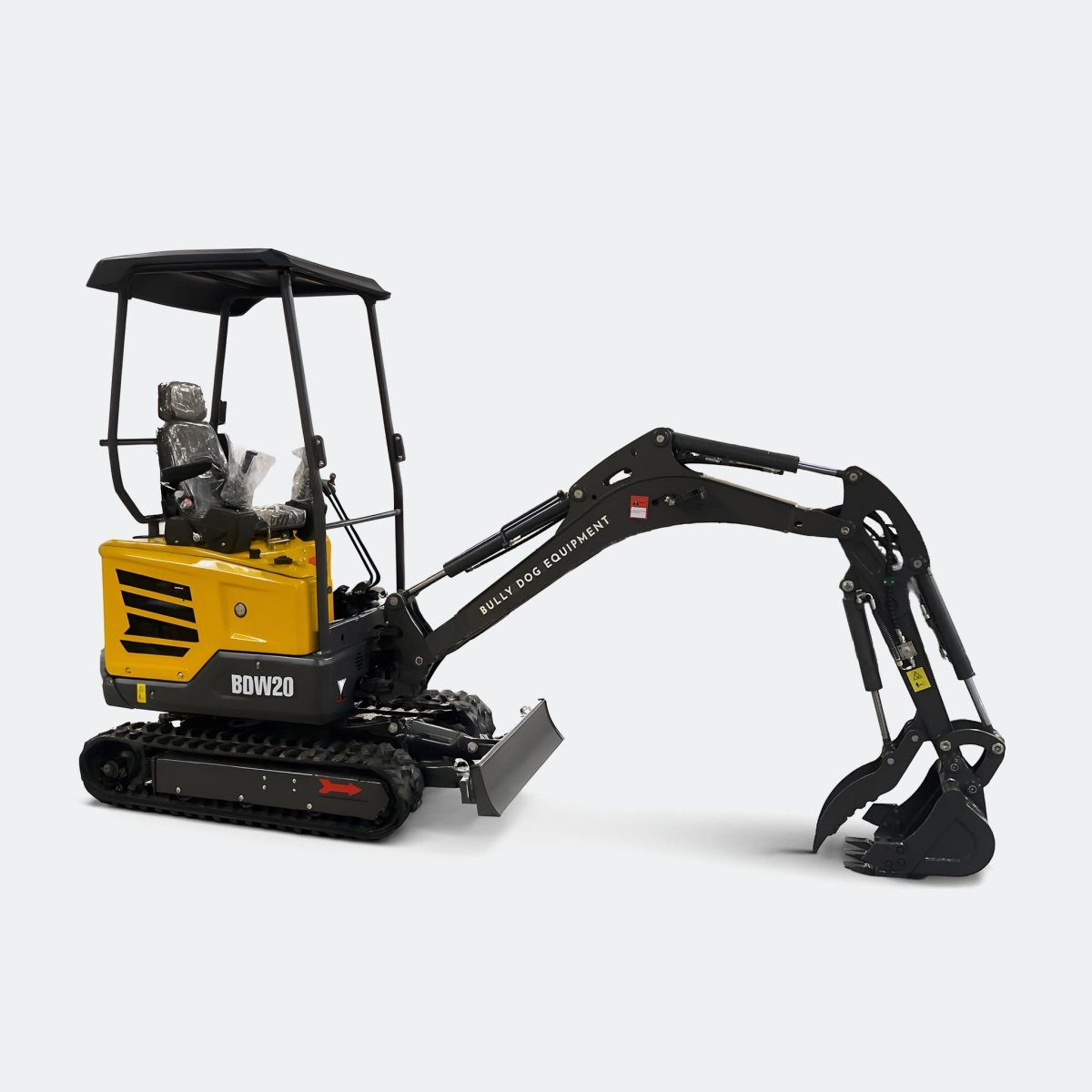

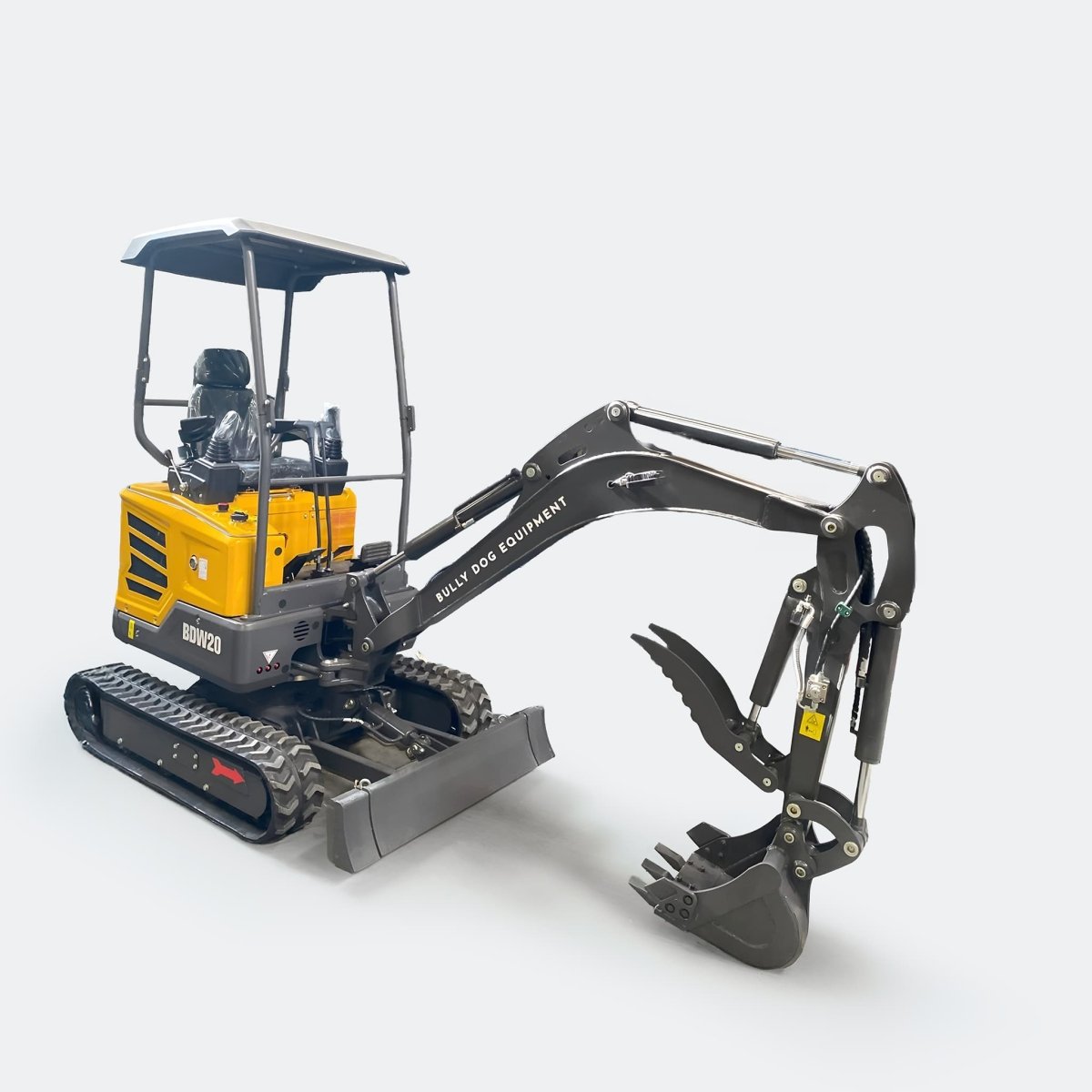

The 2-ton compact excavator is engineered for high maneuverability and easy transport, making it ideal for rooftop-accessible job sites, tight urban spaces, and trailer-loaded operations. Equipped with a Kubota D902 diesel engine, hydraulic thumb, swing boom, expanding tracks, and load-sensing hydraulics, this machine delivers reliable performance in demanding environments.
Key Specifications
Operating weight: 2000 kg
Engine: Kubota D902 diesel, 18.1 KWH
Fuel system: Glow plugs for cold-weather starting
Hydraulic system: Piston pump, load-sensing valve, 16 MPa working pressure
Hydraulic tank capacity: 19 L
Travel speeds: 2 km/h (low) / 4 km/h (high)
Max climbing ability: 30° slope
Dimensions
Total length: 3400 mm
Track width (retracted): 1050 mm
Track width (expanded): 1250 mm
Platform clearance: 437 mm
Max turning radius: 1394 mm
Performance
Max digging depth: 2275 mm (90")
Max vertical arm excavation depth: 1900 mm
Max reach: 3790 mm
Max excavation height: 3500 mm
Max unloading height: 2460 mm
Bucket width: 440 mm
Bucket capacity: 0.04 m³
Max blade digging depth: 157 mm
Features
Swing boom for improved reach and obstacle navigation in confined areas

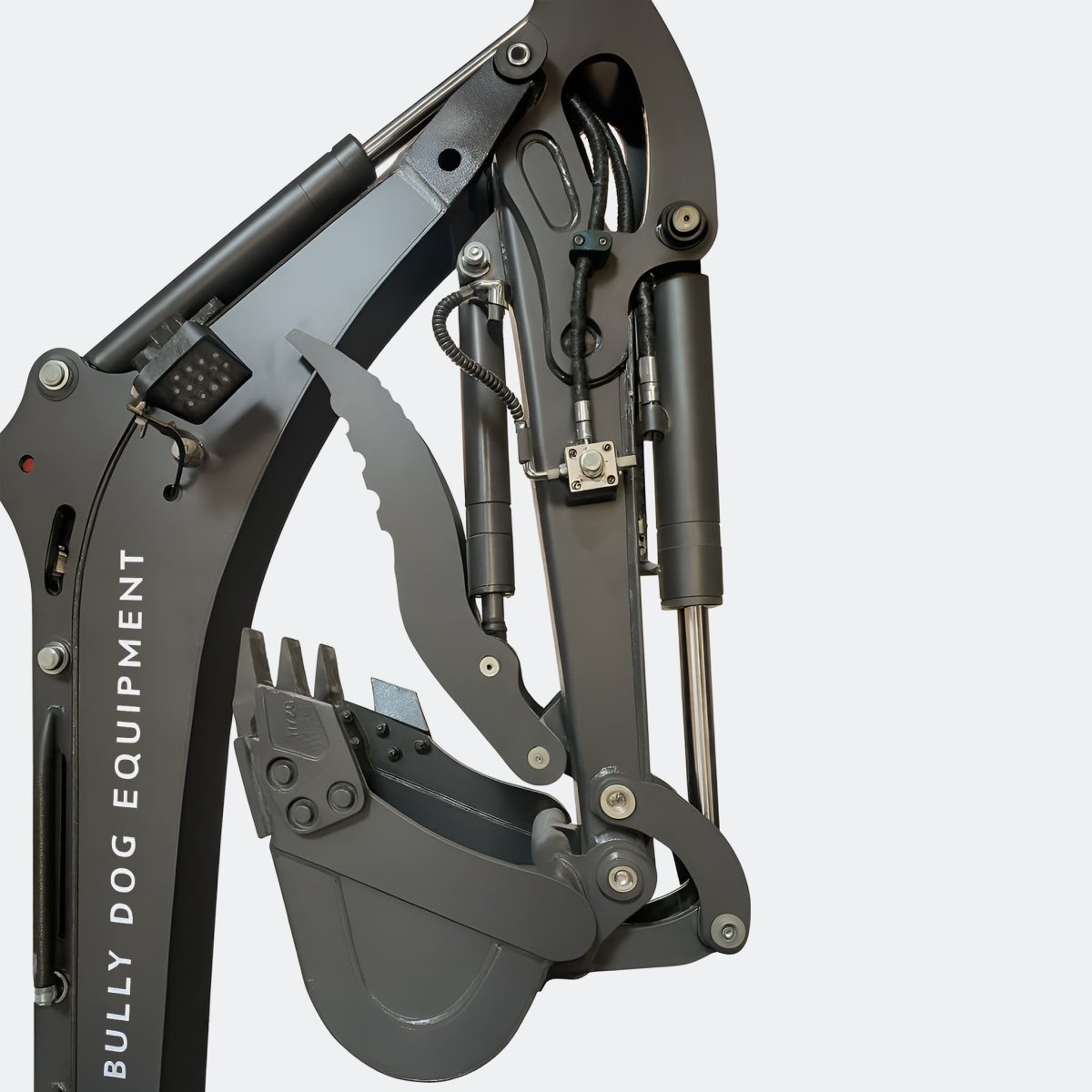

Hydraulic thumb for secure handling of debris, logs, and pipe
Expanding tracks (1050–1250 mm) for enhanced stability on soft terrain

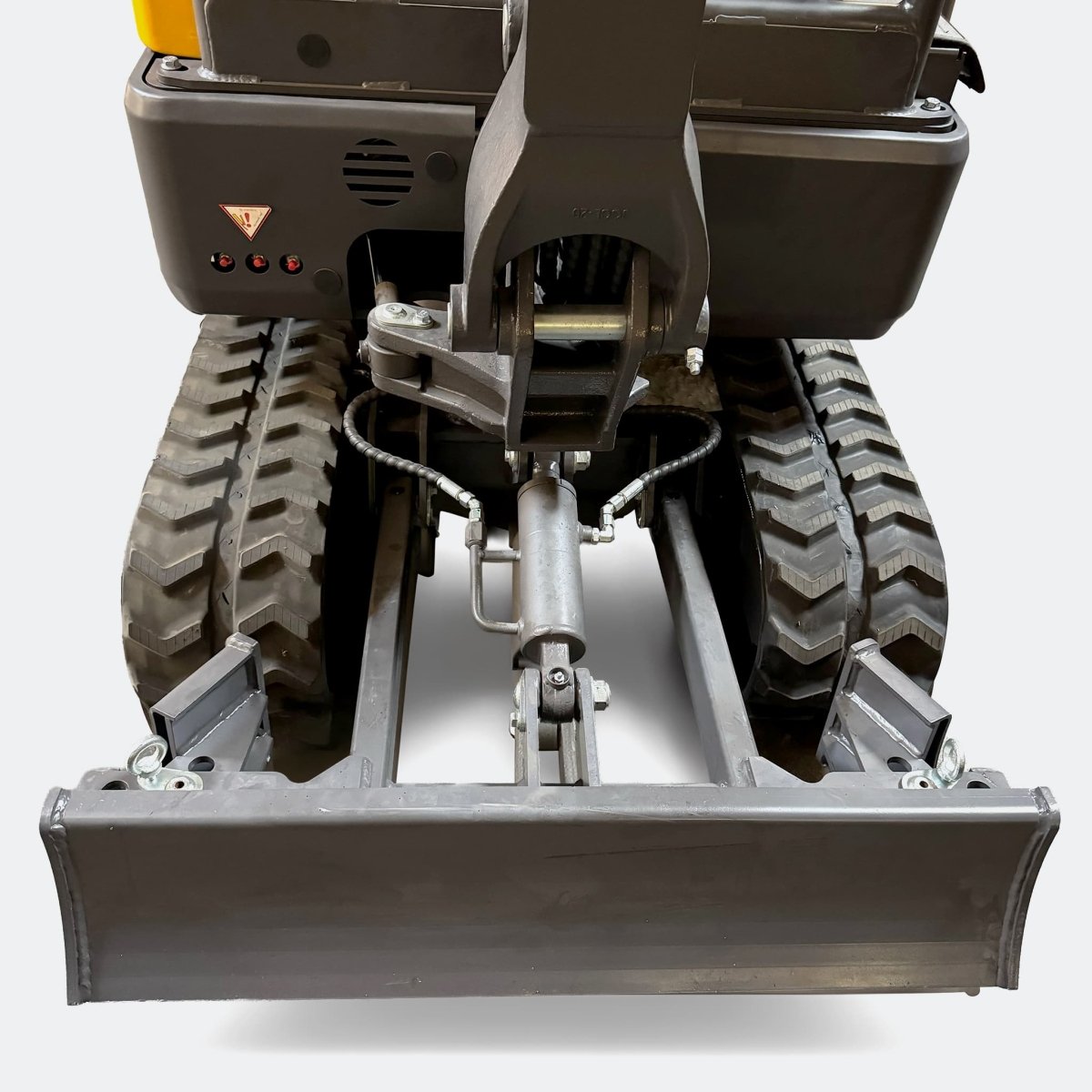

Integrated dozer blade for grading, levelling, and backfilling
High/low speed enclosed final drives for optimal speed and transport efficiency
Designed for easy loading and transport on standard flatbed trailers
Applications
Ideal for urban landscaping, utility work, rooftop equipment installation, and jobs requiring frequent transport. Its compact size, low weight, and swing boom allow access through narrow gates and efficient operation in space-limited environments.
Durability
Built with reinforced steel components and a sealed hydraulic system using a piston pump for consistent power delivery. Designed for long-term reliability in rental, contractor, and property maintenance use.
Compatibility
Fits our standard 30mm Chinese mini excavator attachments including digging buckets, augers, breakers, grapples, and brush rakes via universal coupler interface.
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
