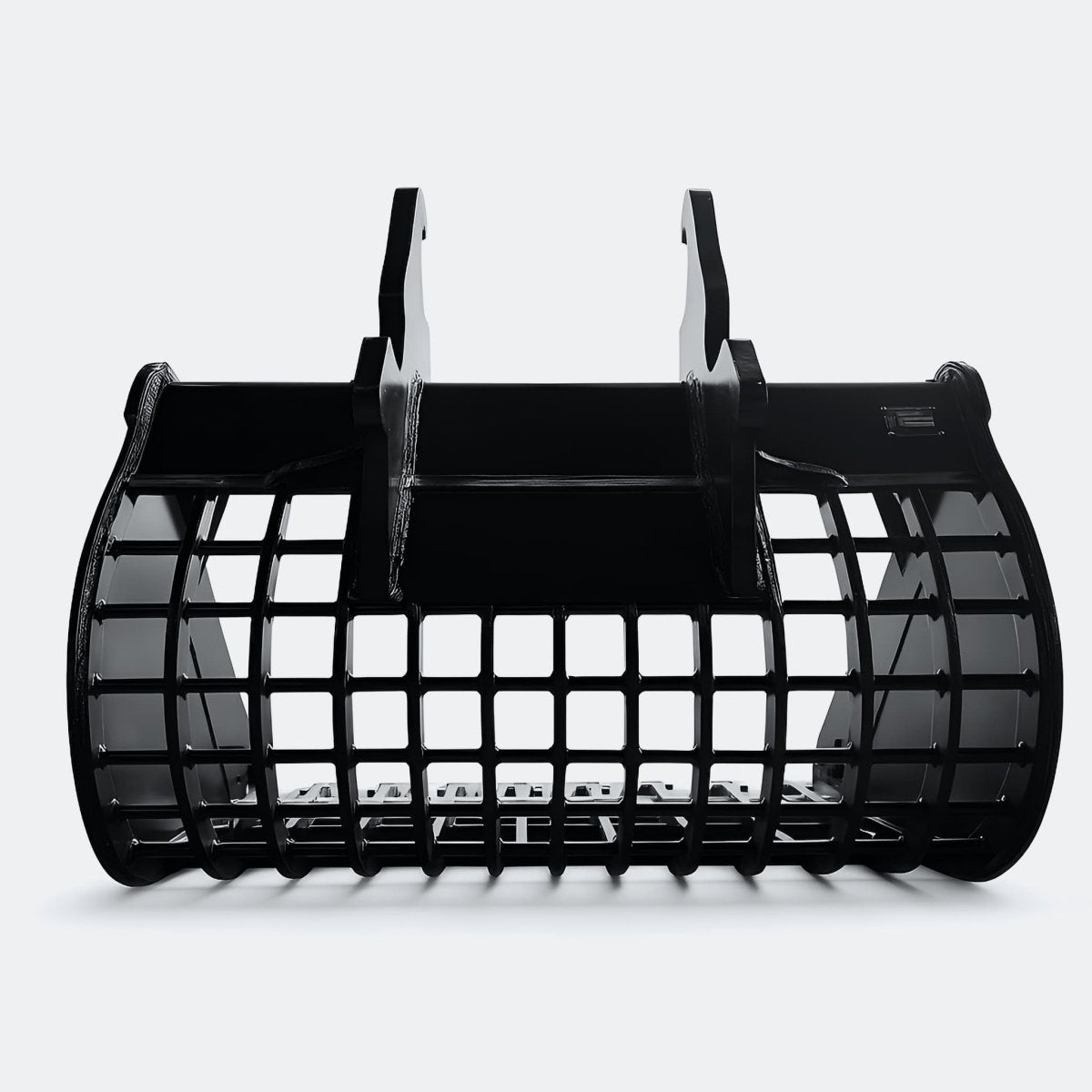

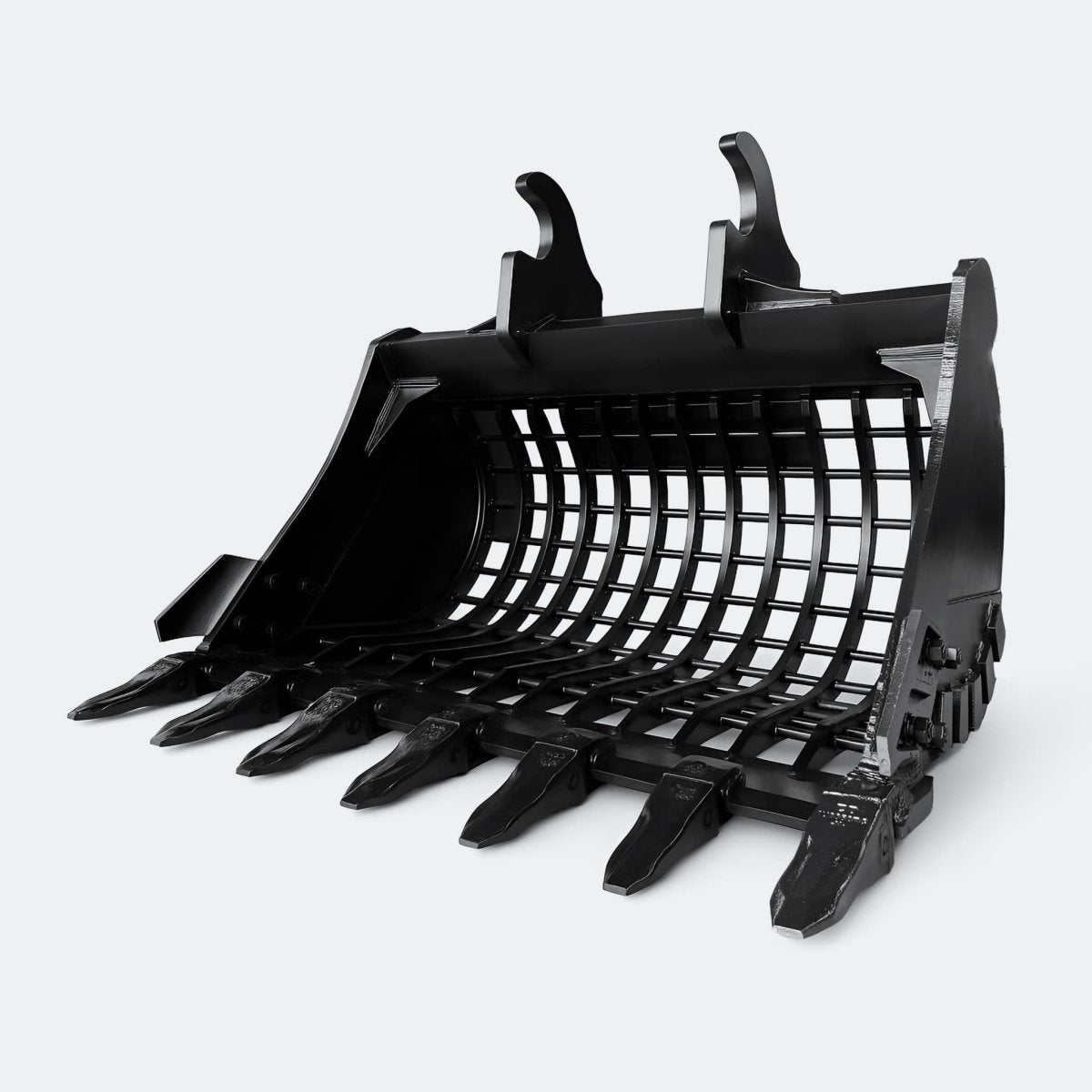

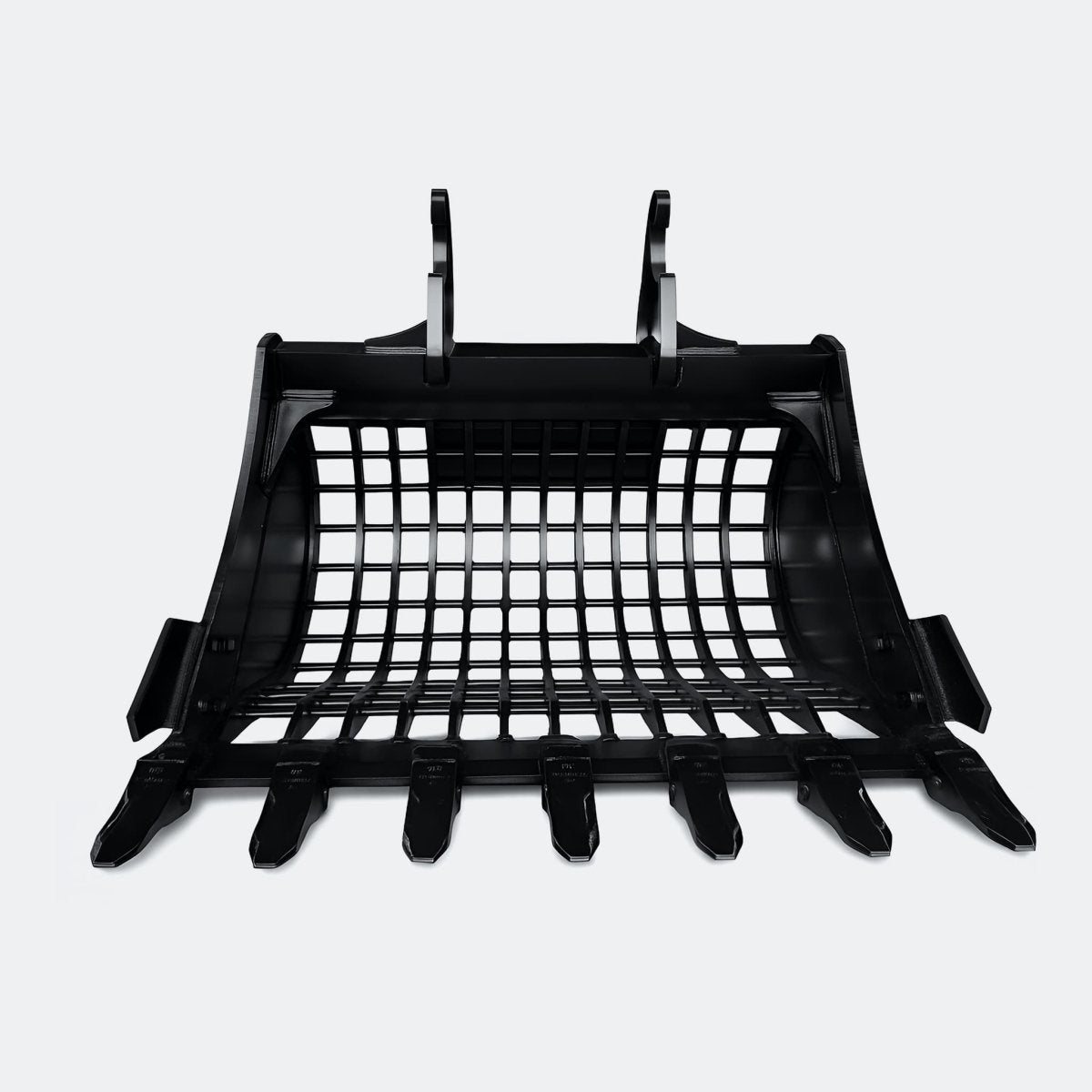

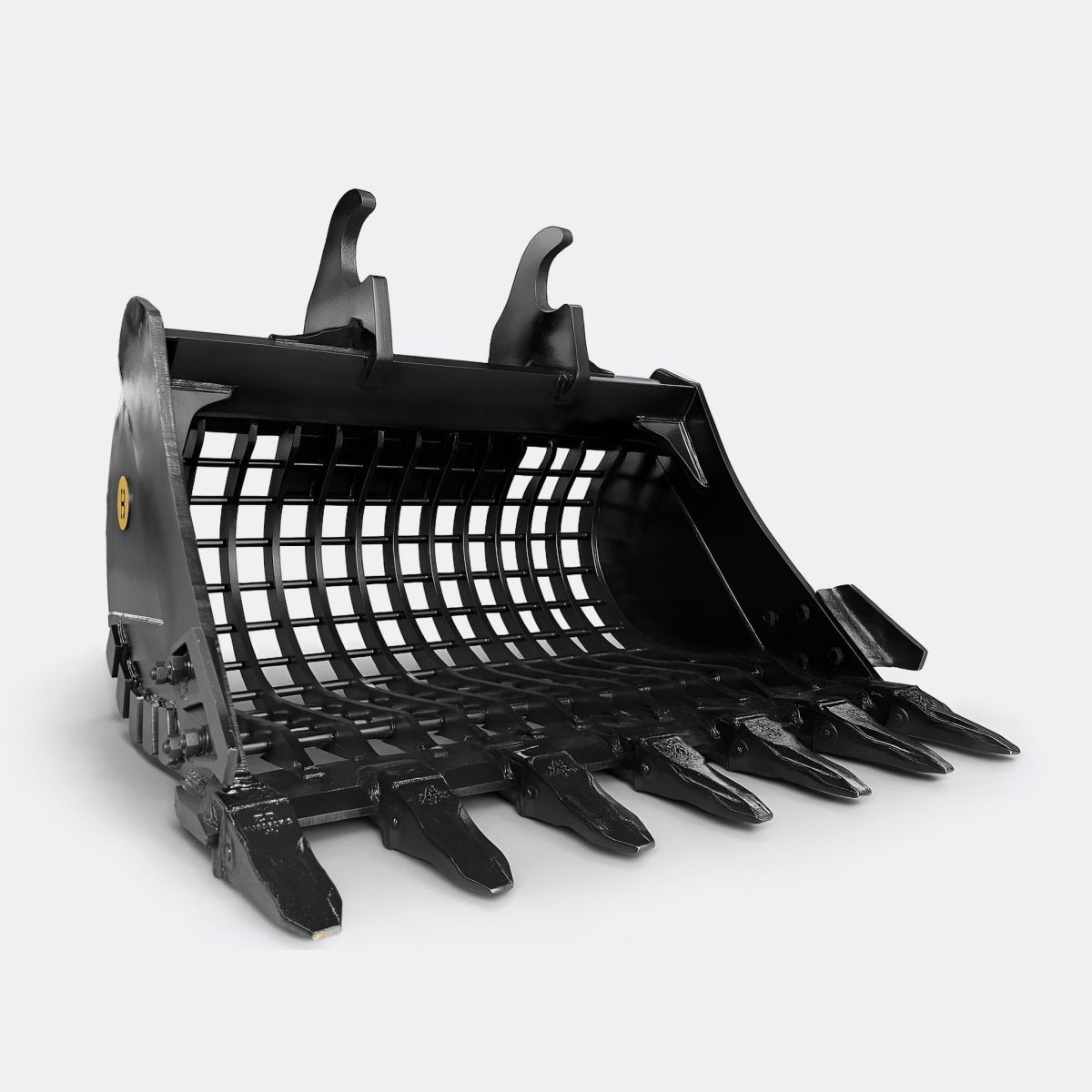

The Skeleton Digging Bucket is engineered for efficient material separation, trenching, and sifting in rocky or debris-filled ground. Designed for 20–25 ton class excavators, this attachment reduces retained load while maintaining high breakout force for demanding excavation tasks.
Key Specifications
Available sizes: 60", 66"
Weight: 60" – 2800 lbs | 66" – 3100 lbs
Construction: T1 and AR400 steel
Wear protection: AR400 side wear plates
Teeth: Replaceable pin-on design
Rib spacing: 4"
Applications
Ideal for utility trenching, pipeline work, and land clearing where soil must be screened from rocks, roots, or debris during digging. The open-frame design allows loose material to fall through, reducing payload and strain on the machine.
Durability
Built with high-strength T1 steel frame and AR400-reinforced side plates to resist abrasion and impact. Replaceable teeth and robust rib construction ensure long service life in harsh conditions.
Compatibility
WBM 200 wedge coupler
WBM 250 wedge coupler
80 mm pins
90 mm pins
⚠️ If you're unsure whether a coupler will fit your machine, or if you require custom-fabricated lugging for an unlisted brand, please contact us for pricing and availability.
